Hammond Power Solutions PH1000MGJ - Transformer 1.48 EKVA Seismic Compliant

PH1000MGJ

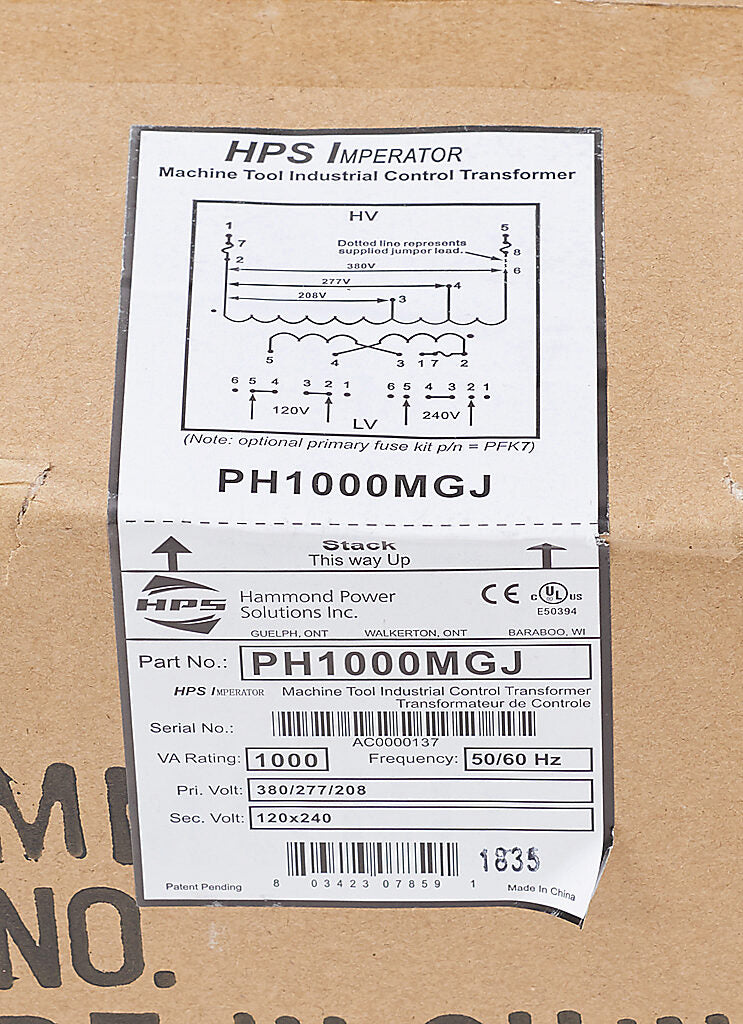

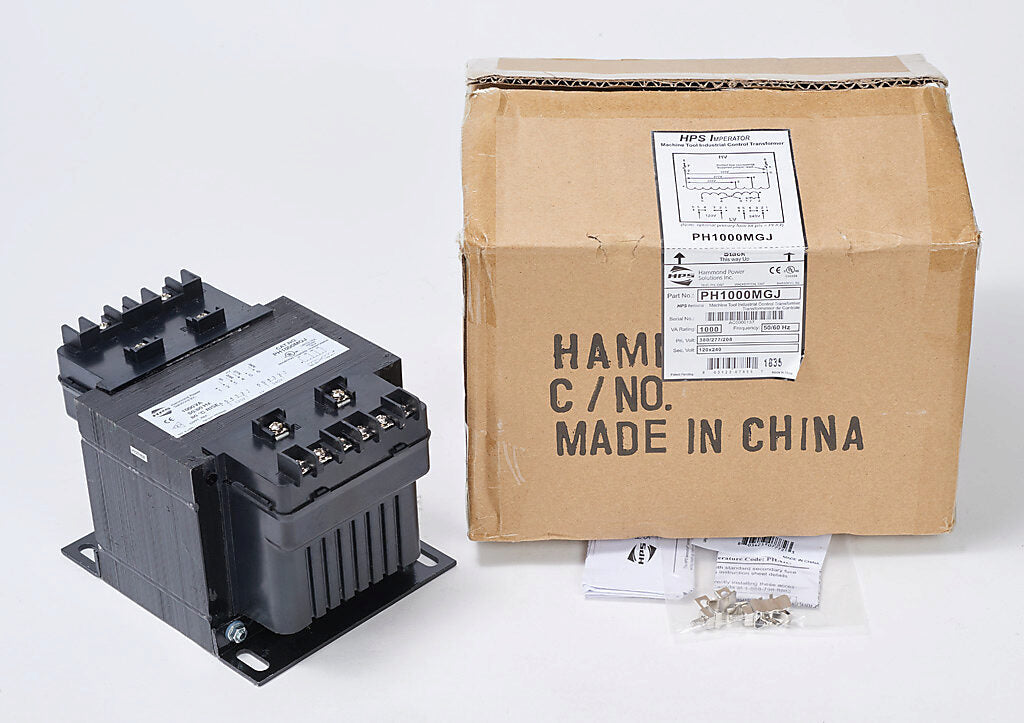

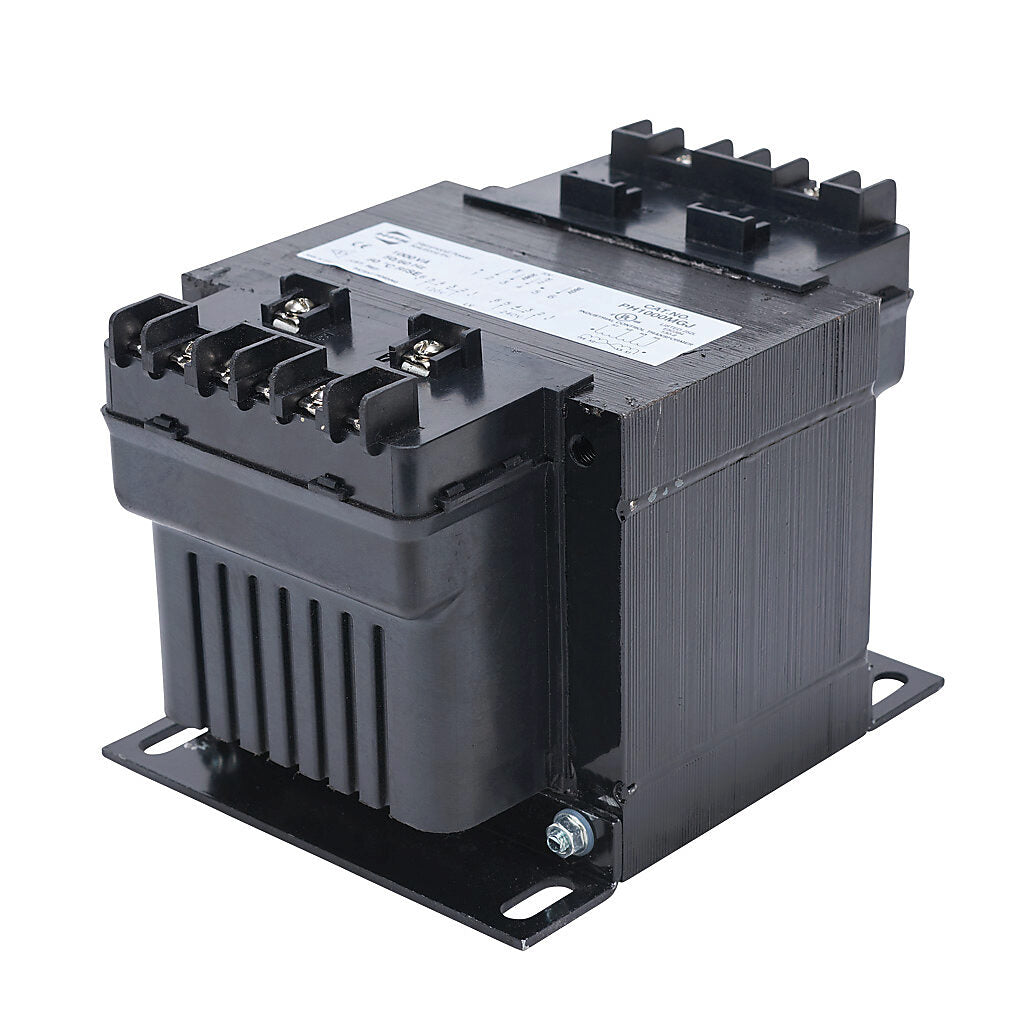

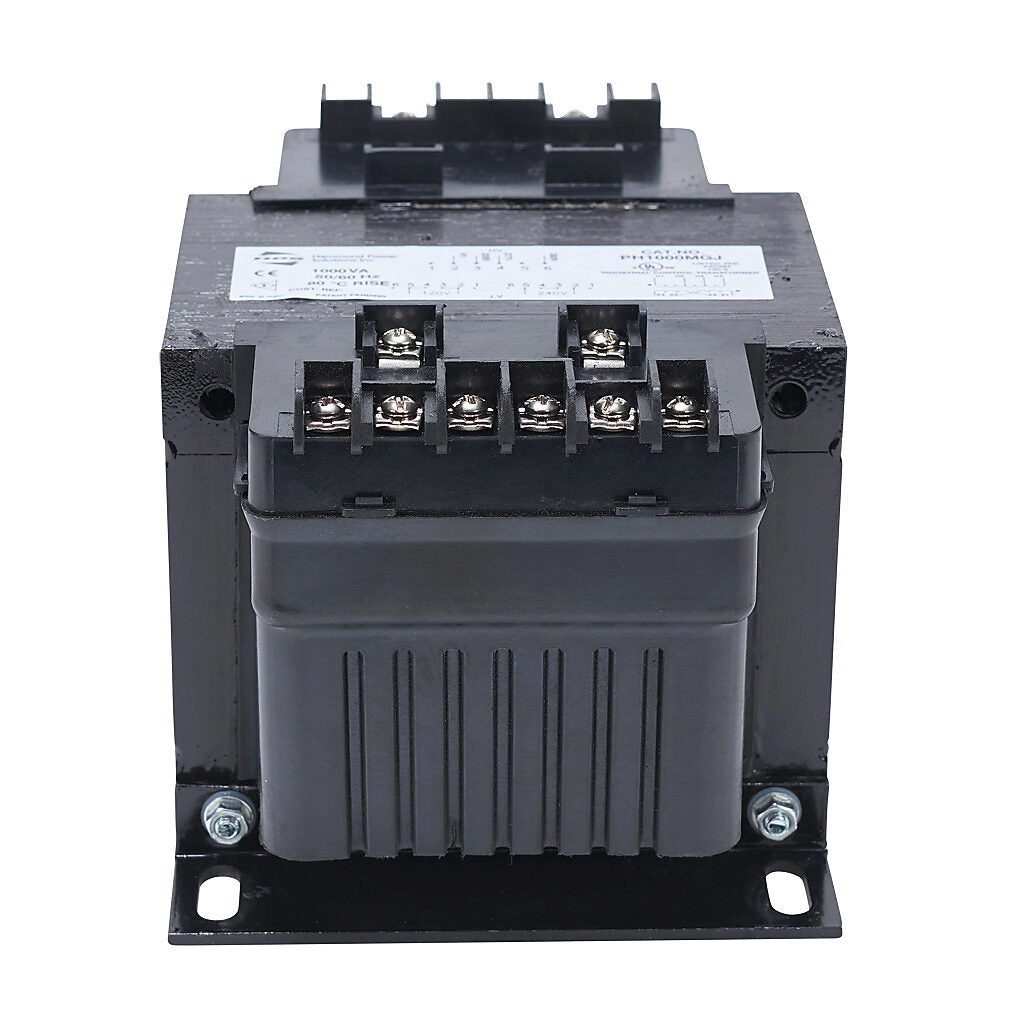

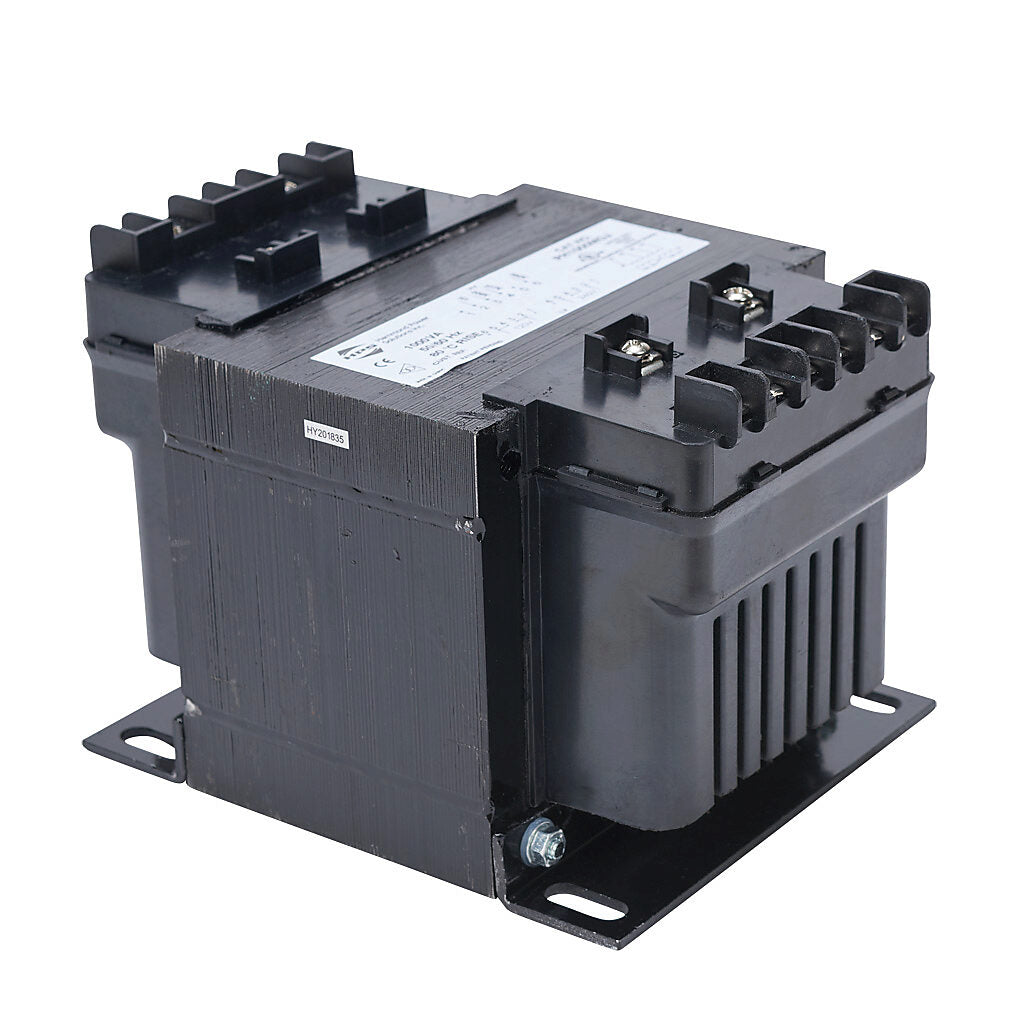

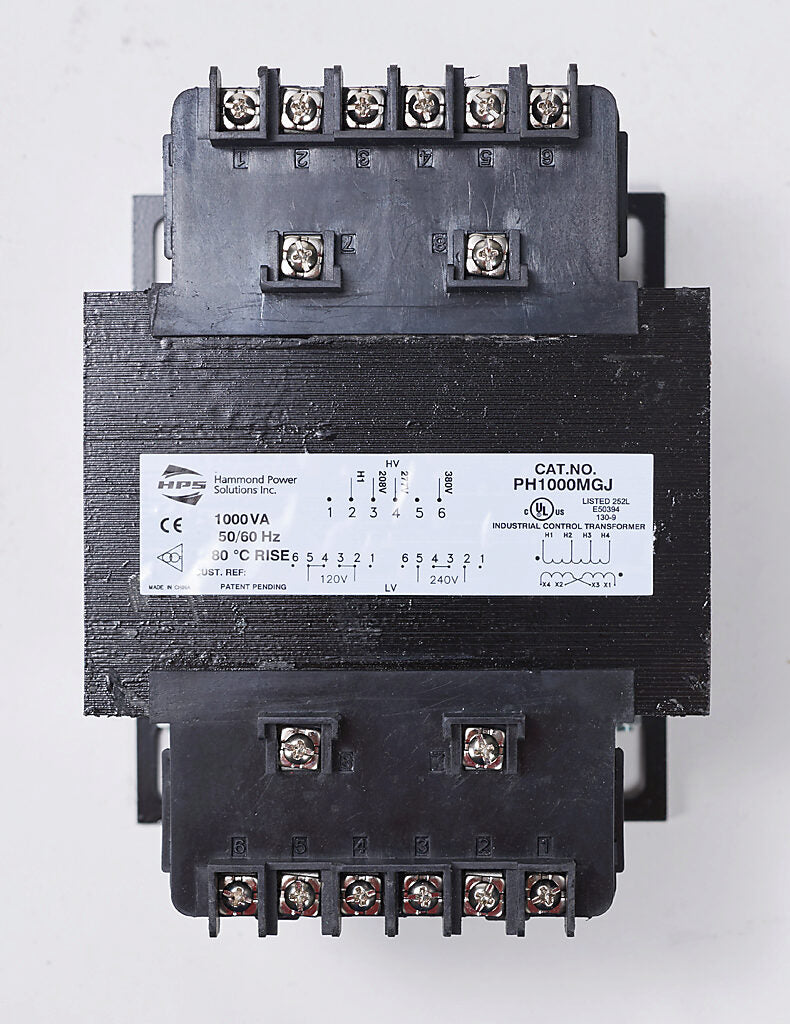

Hammond Power Solutions PH1000MGJ is a single-phase core and coil transformer designed for industrial power distribution applications. This transformer features versatile primary voltage compatibility with 380V, 277V, and 208V inputs and delivers secondary output of 120x240V through parallel x series connections. Constructed with copper windings and rated for 80°C temperature rise with 130°C insulation class, the unit operates at 50/60Hz frequency and provides 1.48124 EKVA capacity. The transformer meets stringent seismic compliance standards including OSHPD and IBC 2018 with Sds=2.0, z/h=1, and lp=1.5 parameters. It features standard terminal block primary terminations and 180° vector configuration, making it suitable for critical power applications requiring reliable performance in seismic zones. Key Features & Specifications

• Type: Single-Phase Core & Coil Transformer
• Primary Voltage: 380, 277, 208V
• Secondary Voltage: 120x240V
• Frequency: 50/60Hz
• EKVA: 1.48124
• Material: Copper Windings
• Temperature Rise: 80°C
• Insulation Class: 130°C
• Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Primary Connection: Series (V)
• Secondary Connection: Parallel x Series (Vx2V)
• Vector Configuration: 180°
• Primary Termination: Terminal Block

Specifications

• Part Number: PH1000MGJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 380, 277, 208
• Primary Connection : Series (V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 1.48124
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block, Terminal Block, Terminal Block

Product Data

• UPC : 080342307859
• GTIN : 00803423078591
• Weight : 26
• Certification : cULus, CE
