Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
PGL36060U43A

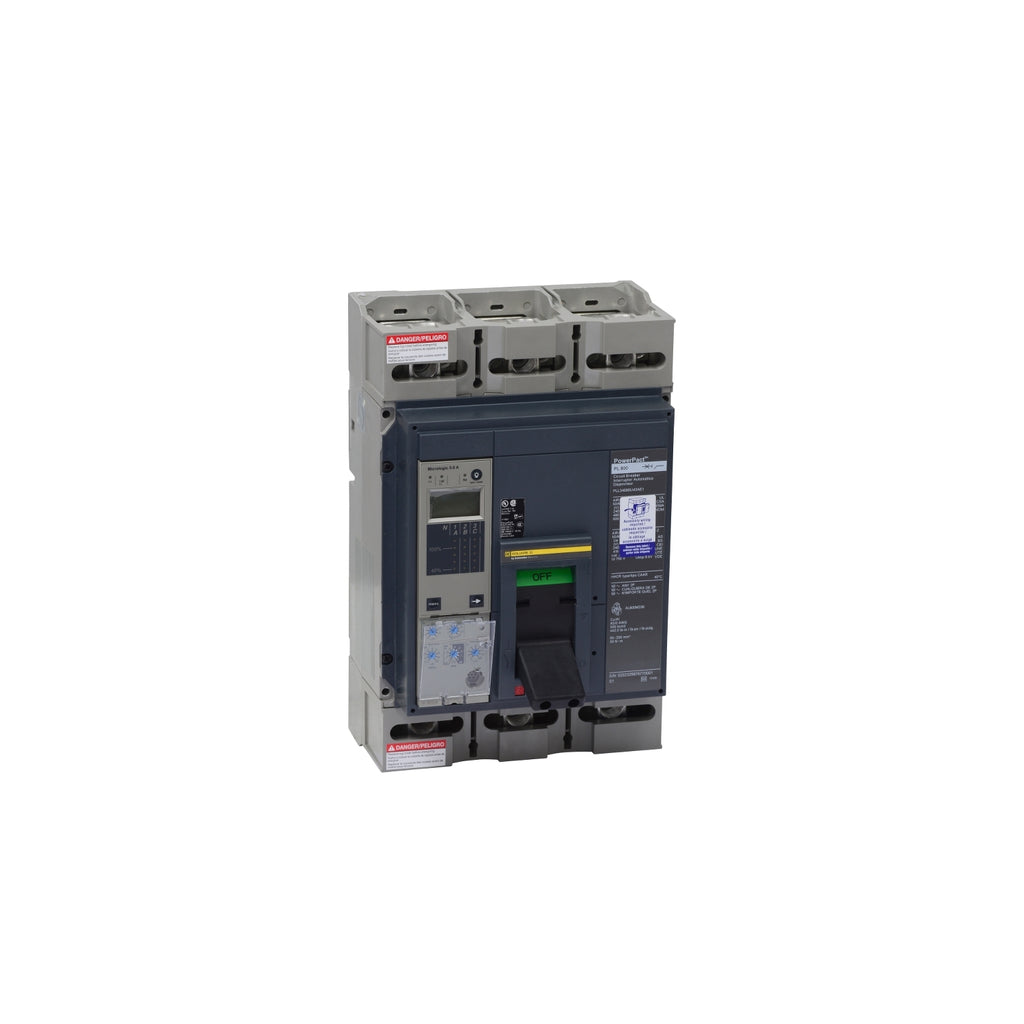

PGL36060U43A is a Schneider Electric PowerPact P series circuit breaker designed for high-performance electrical protection.This 3-pole circuit breaker is rated for 600 amps and 600 volts AC, featuring a 25kA interrupting rating at 600 VAC. It includes a Micrologic 5.0A trip unit and is part of the PowerPact P frame family, suitable for industrial and commercial power distribution applications.
- Amperage: 600A
- Voltage: 600 VAC
- Poles: 3
- Interrupt Rating: 25kA @ 600 VAC
- Series/Frame: PowerPact P
- Trip Unit: Micrologic 5.0A
- Mounting Type: Plug-in or bolt-on (typical for PowerPact P)
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: PGL36060U43A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Voltage : 600
- Amperage : 600
- Phase : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Solid State
Product Data
- UPC : 3.60649E+12
- Country of Origin : United States
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 32
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
