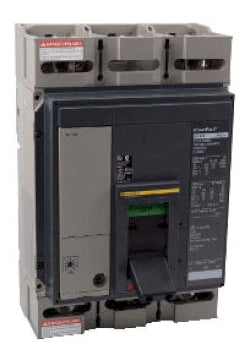

PGL36060CU33A - Square D 600A 600VAC 3-Pole PowerPact P Molded Case Circuit Breaker

PGL36060CU33A

PGL36060CU33A is a Square D PowerPact P molded case circuit breaker rated for 600 amps and 600 volts AC with 3 poles.This circuit breaker features an electronic trip unit and is designed for panel mounting with common mounting holes and handle locations for design standardization. It offers interrupt ratings of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC. The breaker is UL 489 listed, CSA and IEC certified for worldwide applications and supports a wide range of field-installable accessories to reduce inventory while maintaining flexibility.

Key Specifications
• Amperage: 600 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame/Series: PowerPact P
• Trip Unit: Electronic (MicroLogic 5.0)
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600 VAC
• Mounting Type: Panel Mount
• Dimensions: 8.1 in L x 8.3 in W x 16.2 in H
• Enclosure Type: NEMA AB1
• Certifications: UL 489, CSA, IEC 60947-2
• Wire Size: 3/0 AWG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Lugs included AL800M23K




Specifications

• Part Number: PGL36060CU33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State



Product Data

• UPC : 785901688815
• GTIN : 00785901688815
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
