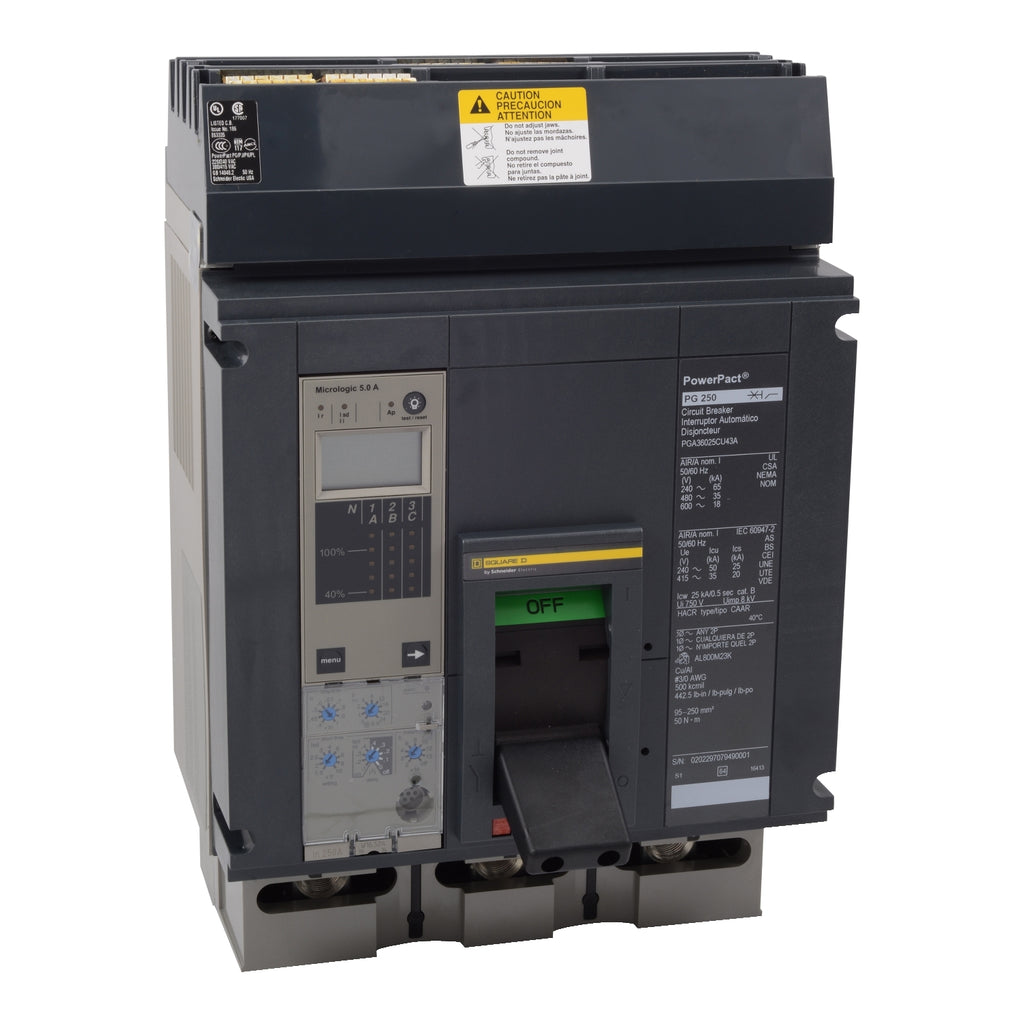

PGA36060U33A - Square D 600A 600V 3 Pole Powerpact PGA Molded Case Circuit Breaker 35kA@480V I-Line Plug-In

PGA36060U33A

PGA36060U33A is a Square D Powerpact PGA series molded case circuit breaker rated for 600 amps and 600 volts with 3 poles and I-Line style plug-in mounting.This circuit breaker features a P-Frame design with electronic MicroLogic 5.0 trip unit providing LSI (Long-Time, Short-Time, Instantaneous) protection functions. It has a 35kA interrupting rating at 480V and is UL listed for safety and reliability. The breaker supports 100% continuous current rating and connects via I-Line plug-in style with lug load connections.

Key Specifications
• Manufacturer: Square D
• Part Number: PGA36060U33A
• Amperage: 600A
• Voltage: 600V
• Poles: 3
• Interrupt Rating: 35kA at 480V
• Frame Type: P-Frame
• Trip Unit: Electronic MicroLogic 5.0 with LSI
• Mounting Type: I-Line Style Plug-In
• Continuous Current Rating: 100%
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36060U33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
