PFMA50LCY/UNV1 76 M25 - Eaton Crouse-Hinds Lighting and controls 400W 50000 lm

PFMA50LCY/UNV1 76 M25

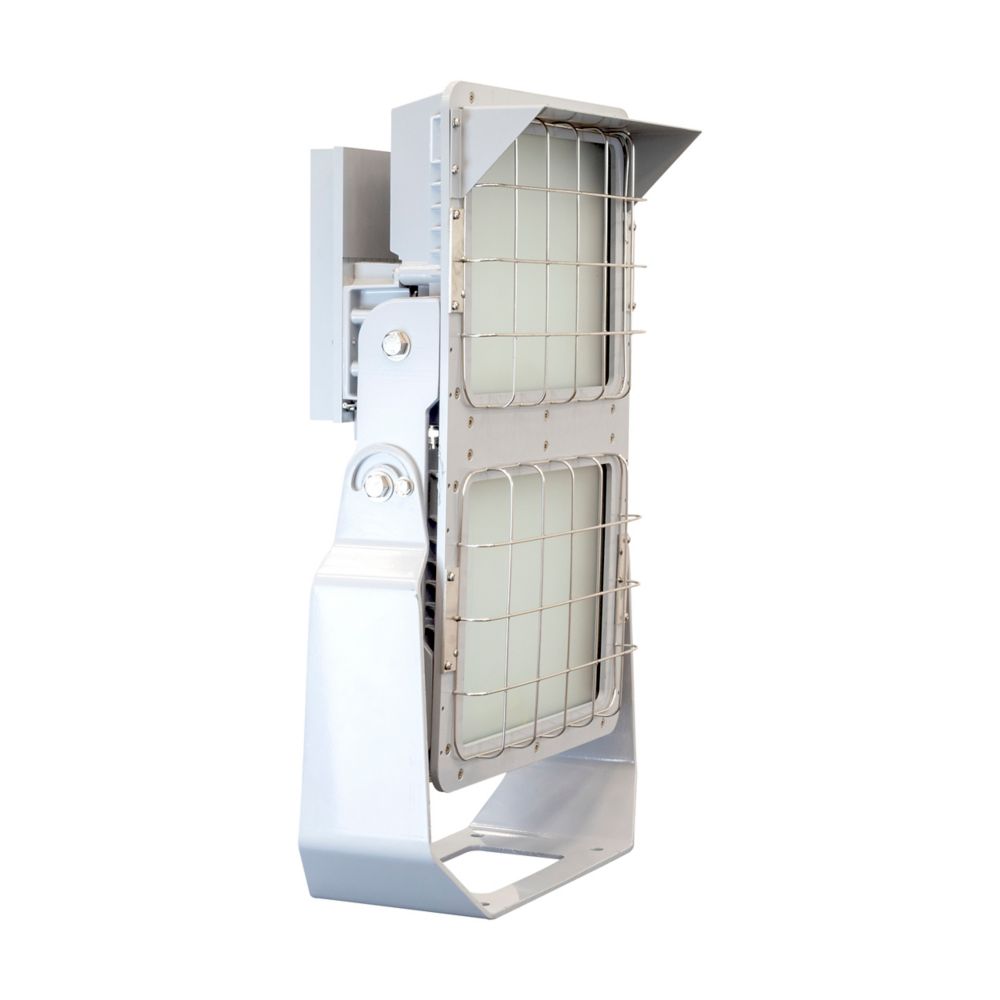

PFMA50LCY/UNV1 76 M25 is an Eaton Crouse-Hinds Champ Pro series LED floodlight designed for ordinary and non-hazardous locations.This dimmable LED floodlight features a 7x6 optic distribution, heat and impact resistant glass lens, die cast aluminum housing with gray finish, NEMA 4X and IP66 ratings, and yoke mounting. It delivers 50000 lumens at 126 lm/W from a 400W lamp, equivalent to 1500W+, with 100-277 Vac / 127-300 Vdc voltage and 50/60 Hz frequency.Key Specifications

• Part Number: PFMA50LCY/UNV1 76 M25
• Manufacturer: Eaton Crouse-Hinds
• Product Type: Floodlight
• Lumens: 50000
• Lumens per Watt: 126 lm/W
• Wattage: 400 W
• Amperage Rating: 4.14 A
• Voltage Rating: 100-277 Vac, 127-300 Vdc
• Frequency Rating: 50/60 Hz
• Color Temperature: Cool white
• NEMA Rating: 4X
• Ingress Protection: IP66
• Optical Distribution: 7x6
• Entry Size: 25 mm
• Lens Material: Heat and impact resistant glass
• Finish Color: Gray
• Material: Die cast aluminum
• Mounting Method: Yoke
• Dimming: Dimmable driver
• Power Factor: >0.90
• Equivalent Luminaire: 1500W+

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PFMA50LCY/UNV1 76 M25
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Floodlights
• Voltage : 100-277 Vac, 127-300 Vdc
• Amperage : 4.14 A
• Nema Rating : 4X
• Watts : 400W
• Enclosure : IP66
• Mounting : Yoke
• Hz : 50/60 Hz
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP66
• Lumens : 50000
• Lumens per watt : 126 lm/W
• Color temperature : Cool white
• Mounting Method : Yoke
• Equivalent luminaire : 1500W+
• Dimming : Dimmable driver
• Power factor : > 0.90

Product Data

• UPC : 662276661516
• Dimensions : 15.35 in x 24 in x 17.28 in (Length/Depth x Height x Width)
• Weight : 32.5 lb
