Product Info
- Manufacturer:Eaton
Description
PFMA40LCY/UNV1 76 M20 S891

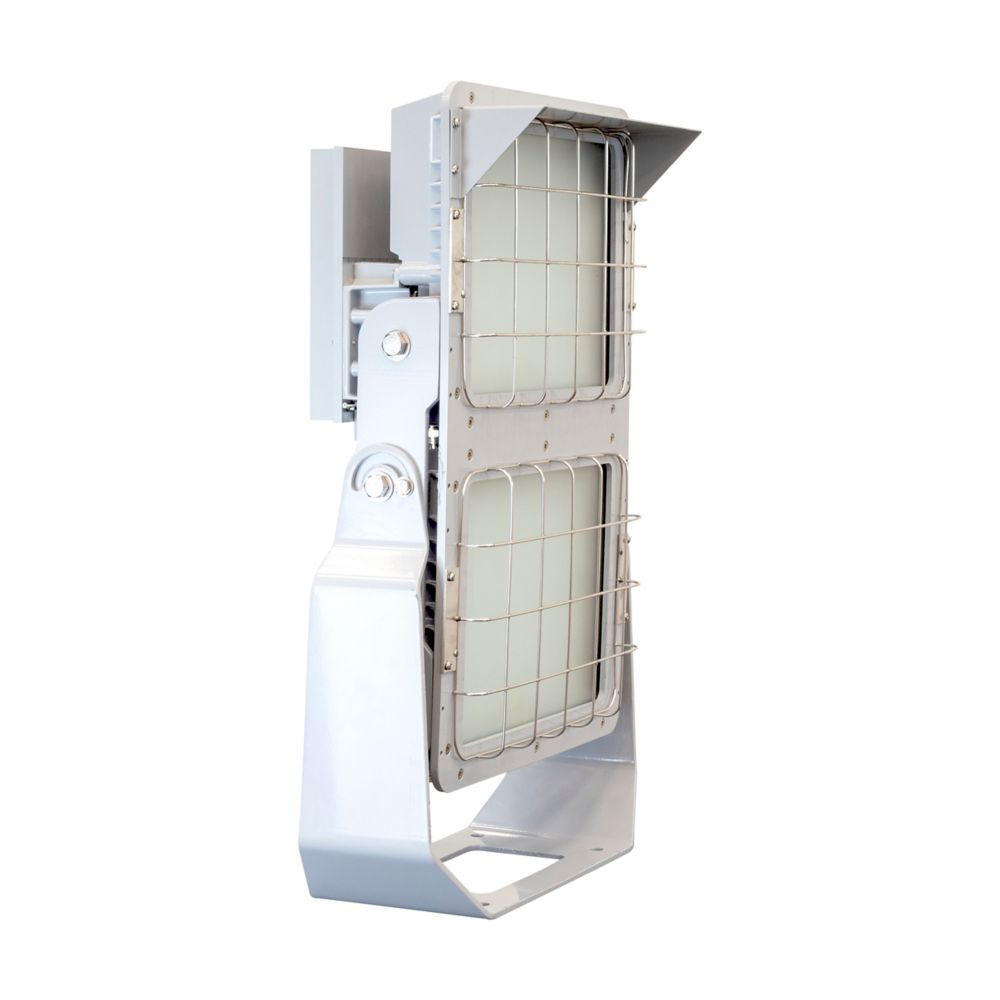

PFMA40LCY/UNV1 76 M20 S891 is an Eaton Crouse-Hinds Champ Pro series high lumen LED floodlight for ordinary and non-hazardous locations.This dimmable LED floodlight delivers 40,000 lumens at 119 lm/W with a cool white color temperature, featuring a diffused glass lens, 7x6 optics, 20mm entries, and NEMA 4X/IP66 ratings in die cast aluminum construction.Key Specifications
- Part Number: PFMA40LCY/UNV1 76 M20 S891
- Manufacturer: Eaton
- Lumens: 40000
- Lumens per watt: 119
- Color temperature: Cool white
- Voltage rating: 100-277 Vac, 127-300 Vdc
- Frequency rating: 50/60 Hz
- Wattage: 340 W
- Amperage Rating: 3.35 A
- NEMA Rating: 4X
- Ingress protection (IP) ratings: IP66
- Entry size: 20 mm
- Lens material: Diffused glass
- Material: Die cast aluminum
Specifications
- Part Number: PFMA40LCY/UNV1 76 M20 S891
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 100-277 Vac, 127-300 Vdc
- Amperage : 3.35 A
- Nema Rating : 4X
- Watts : 340 W
- Enclosure : Die cast aluminum
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 40000
- Lumens per watt : 119
- Color temperature : Cool white
- Mounting Method : Yoke
- Equivalent luminaire : 1500W+
- Dimming : Dimmable
- Power factor : > 0.90
- Entry type : 20 mm
Product Data
- UPC : 662276820012
- Dimensions : 15.35 in x 24 in x 17.28 in (Length/Depth x Height x Width)
- Weight : 32.5 lb
