2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
Description
PFMA25LCY/UNV34 76 M20

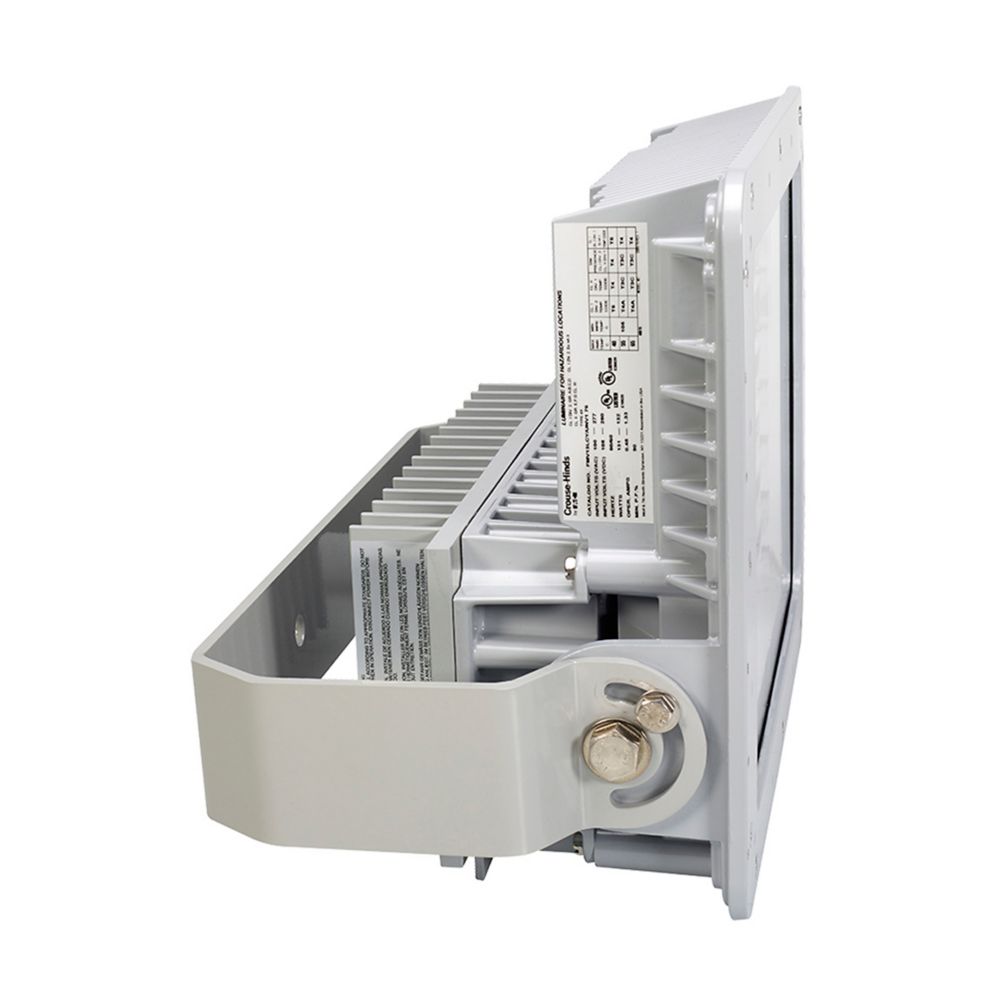

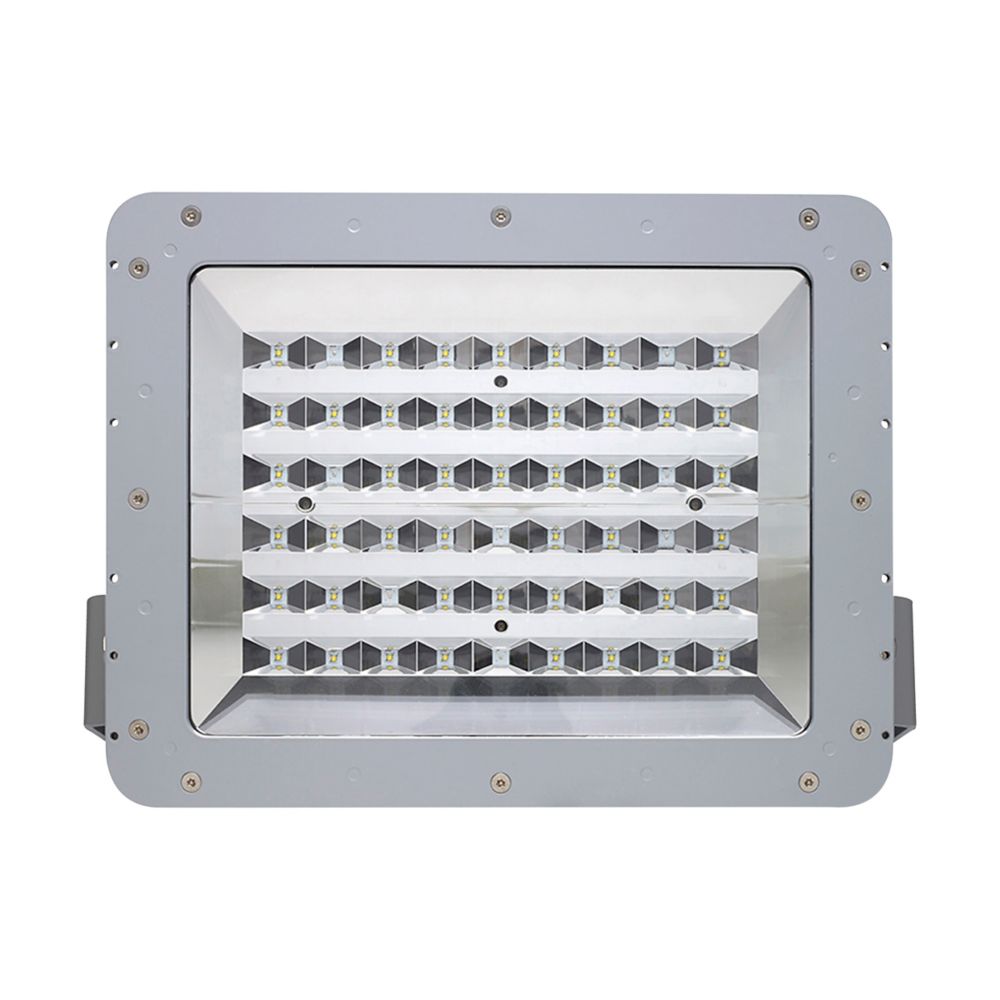

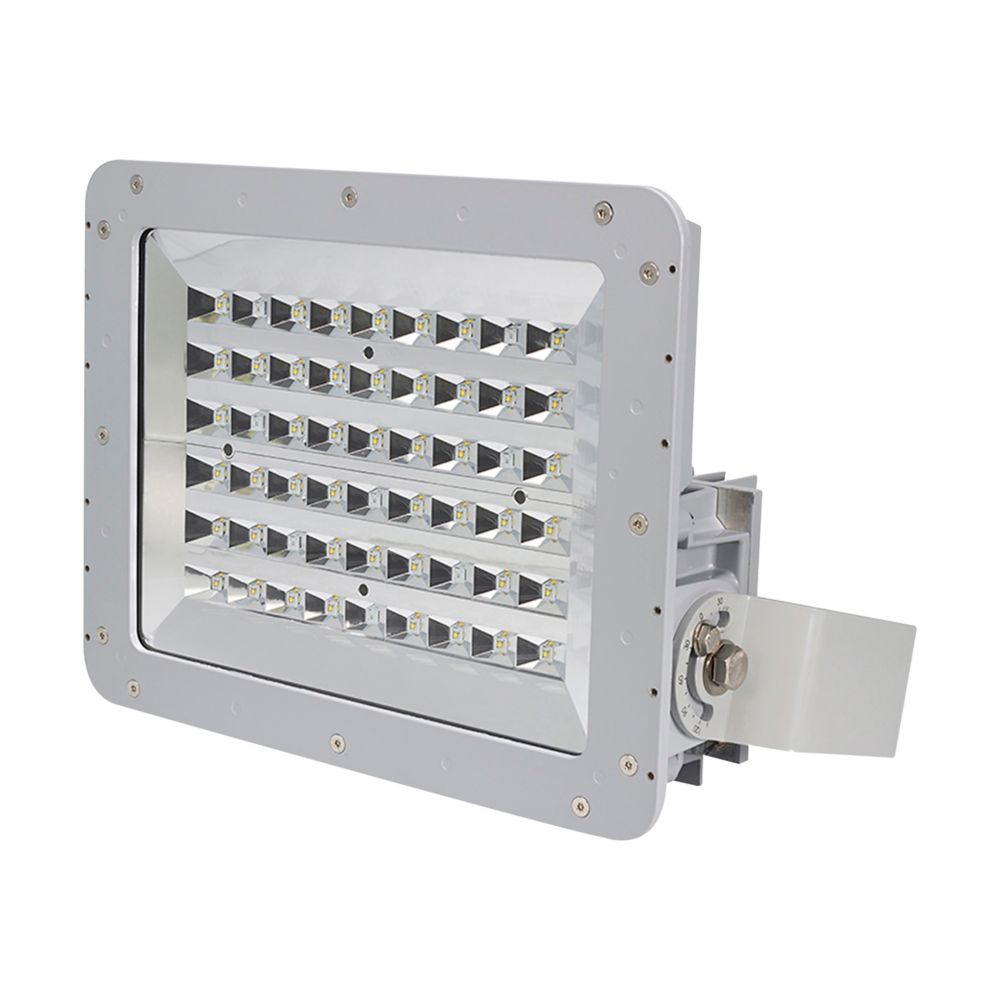

PFMA25LCY/UNV34 76 M20 is an Eaton Crouse-Hinds series Champ Pro PFMA high lumen LED floodlight designed for industrial and harsh area applications. This dimmable LED floodlight delivers 25,000 lumens with a 750-1000W equivalent output, featuring a heat and impact resistant glass lens and die cast aluminum housing rated NEMA 4X for outdoor use in corrosive, wet, dusty, and extreme temperature environments. Key Specifications
- Part Number: PFMA25LCY/UNV34 76 M20
- Manufacturer: Eaton
- Wattage: 217W
- Voltage: 347-480 V
- Amperage: 0.19A
- Lumens: 25,000
- Lumens per Watt: 117
- Color Temperature: Cool white
- Frequency: 50/60 Hz
- NEMA Rating: 4X
- IP Rating: IP66
- Mounting Method: Yoke
- Entry Size: 20mm
- Lens Material: Heat and impact resistant glass
- Housing Material: Die cast aluminum
- Finish: Gray
- Dimming: Dimmable driver
- Power Factor: >0.90
- Optical Distribution: 7x6
Specifications
- Part Number: PFMA25LCY/UNV34 76 M20
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 347-480 V
- Amperage : 0.19A
- Nema Rating : 4X
- Watts : 217W
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 25,000
- Lumens per watt : 117
- Color temperature : Cool white
- Mounting Method : Yoke
- Equivalent luminaire : 750-1000W
- Guard type : Heat and impact resistant glass
- Dimming : Dimmable driver
- Power factor : >0.90
- Trade size : 20mm
- Color : Gray
Product Data
- UPC : 662276685222
- Dimensions : 17.85 in x 12 in x 7 in (Length/Depth x Height x Width)
- Weight : 32.5 lb
