PFMA20LCY/UNV1 76 M20 S891 - Eaton Crouse-Hinds Lighting and controls 20K Lumen

PFMA20LCY/UNV1 76 M20 S891

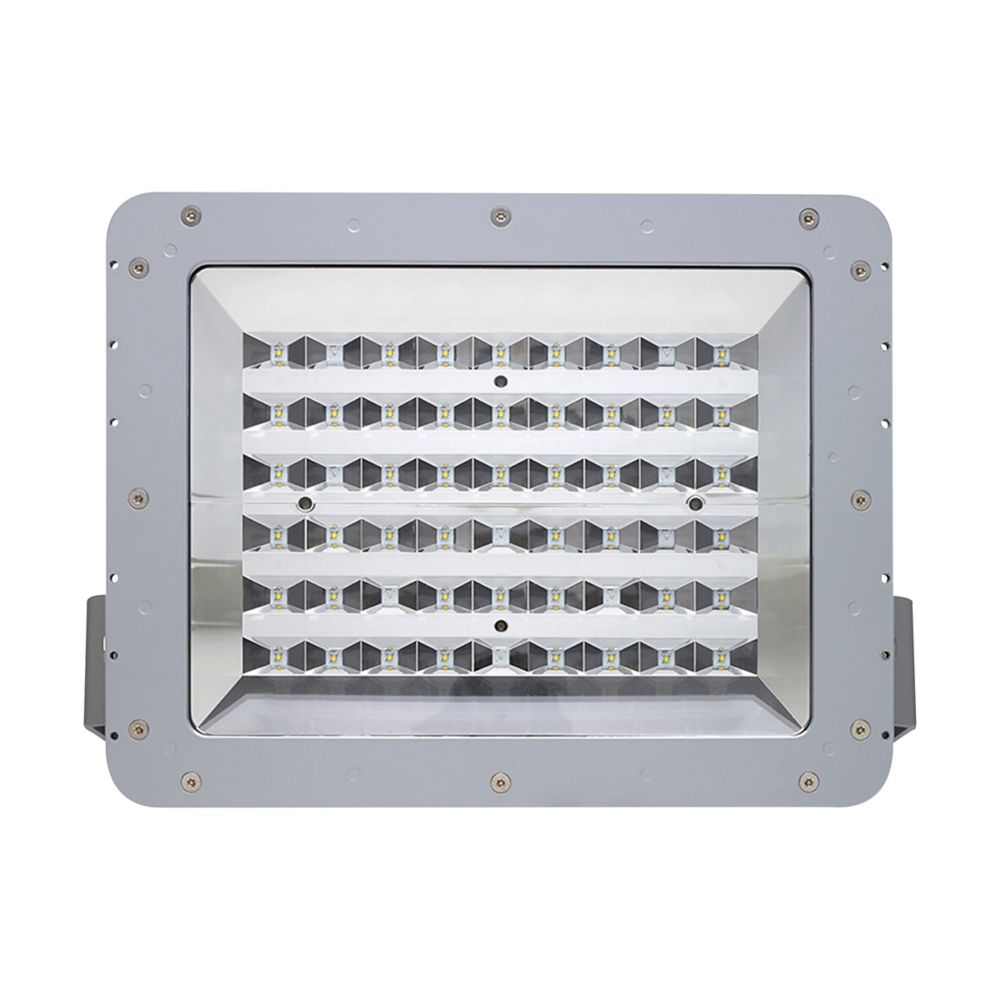

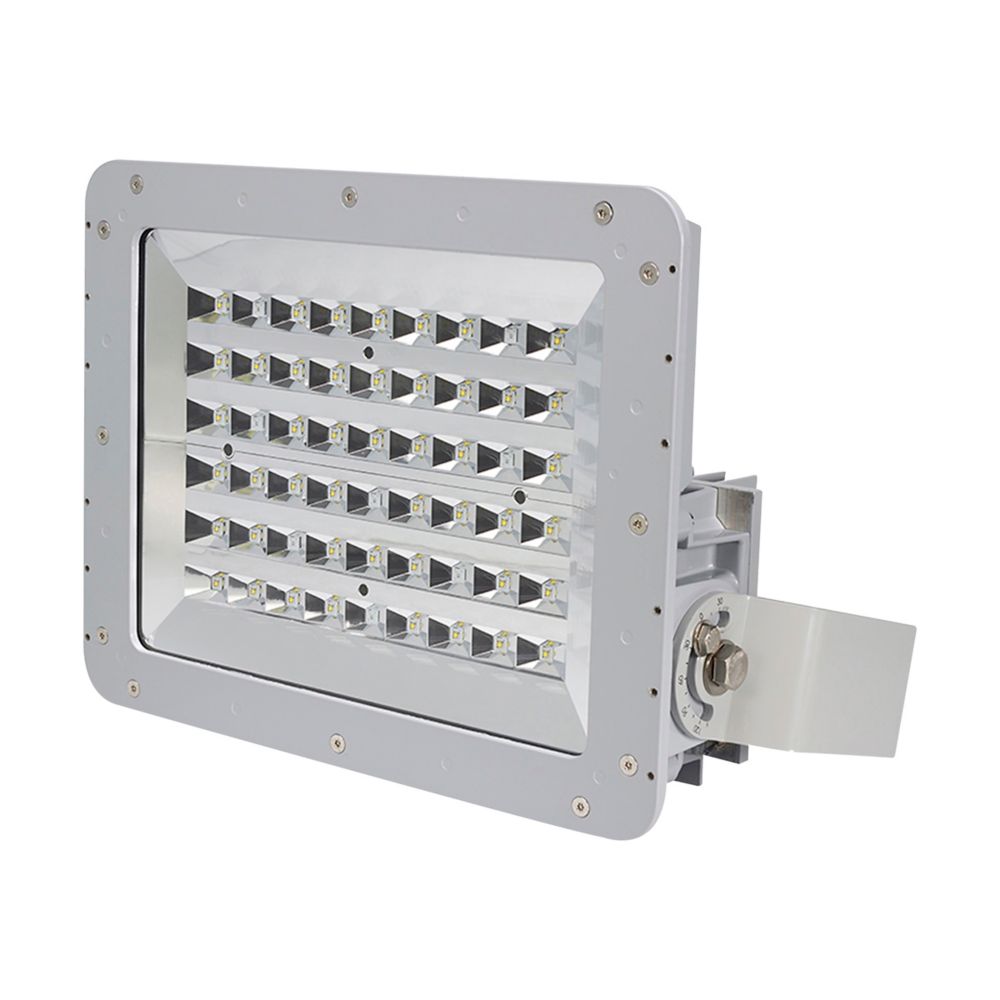

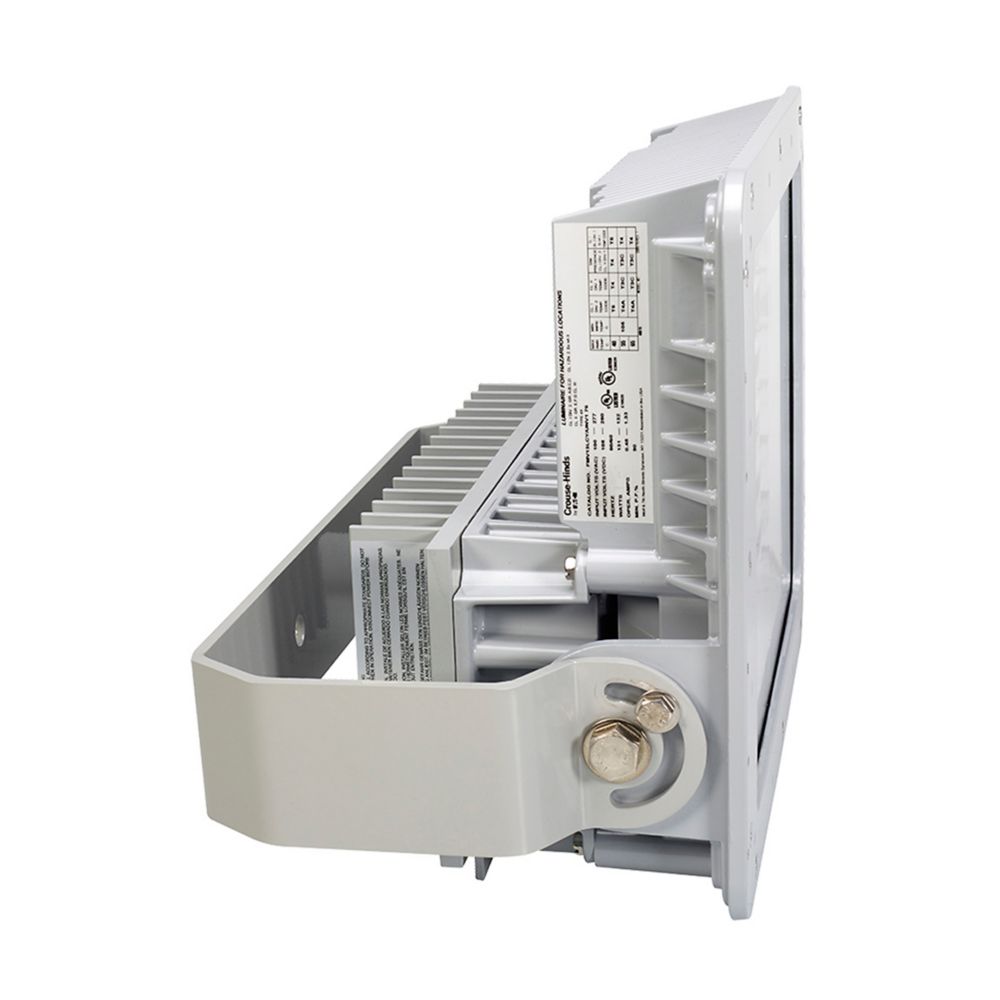

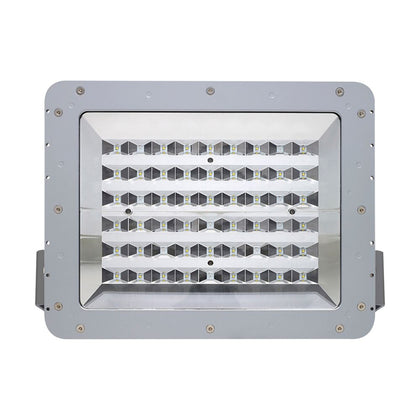

PFMA20LCY/UNV1 76 M20 S891 is a Champ Pro PFMA series high lumen LED floodlight designed for harsh industrial environments.This rugged LED floodlight delivers 20,500 nominal lumens with a 7x6 optical distribution pattern, diffused glass lens, and 20mm entry size. It operates on 100-277 VAC or 127-300 VDC at 50/60 Hz with input power of 171-175W and current of 1.76-0.67A. Features include cool white 5000K color temperature, gray finish, and yoke mount.Key Specifications

• Part Number: PFMA20LCY/UNV1 76 M20 S891
• Manufacturer: Eaton Crouse-Hinds
• Light source/intensity: 20L (20,500 nominal lumens)
• Voltage: 100-277 VAC, 127-300 VDC
• Frequency: 50/60 Hz
• Optical distribution: 76 (7x6 floodlight pattern)
• Entry size: M20 (20mm)
• Lens material: S891 (Diffused glass)
• Input power: 171-175W
• Input amps: 1.76-0.67A
• Color temperature: C (5000K, 70 CRI)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PFMA20LCY/UNV1 76 M20 S891
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Floodlights
• Voltage : 100-277 Vac, 127-300 Vdc
• Amperage : 1.76 A
• Nema Rating : 4X
• Watts : 177W
• Enclosure : Diffused glass lens
• Mounting : Yoke
• Hz : 50/60 Hz
• Dist Voltage : 100-277 VAC, 127-300 VDC
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP66
• Lumens : 20,500
• Lumens per watt : 115
• Color temperature : 5000K, 70 CRI
• Mounting Method : Yoke
• Equivalent luminaire : 600-750W
• Dimming : Dimmable driver
• Power factor : > 0.90

Product Data

• UPC : 662276823594
• Dimensions : 17.85 in x 12 in x 7 in (Length/Depth x Height x Width)
• Weight : 32.5 lb
