Product Info
- Manufacturer:Eaton Crouse-Hinds
Description
PFMA20LCY/UNV1 76

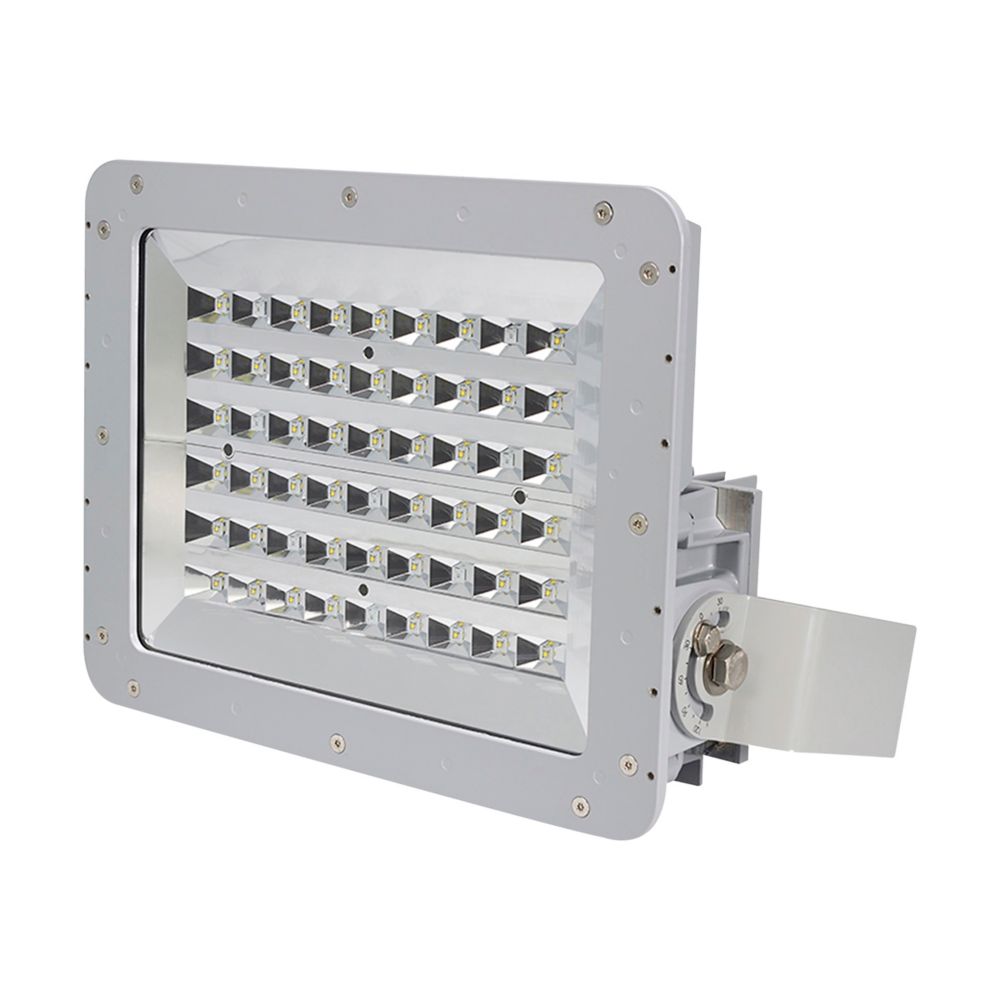

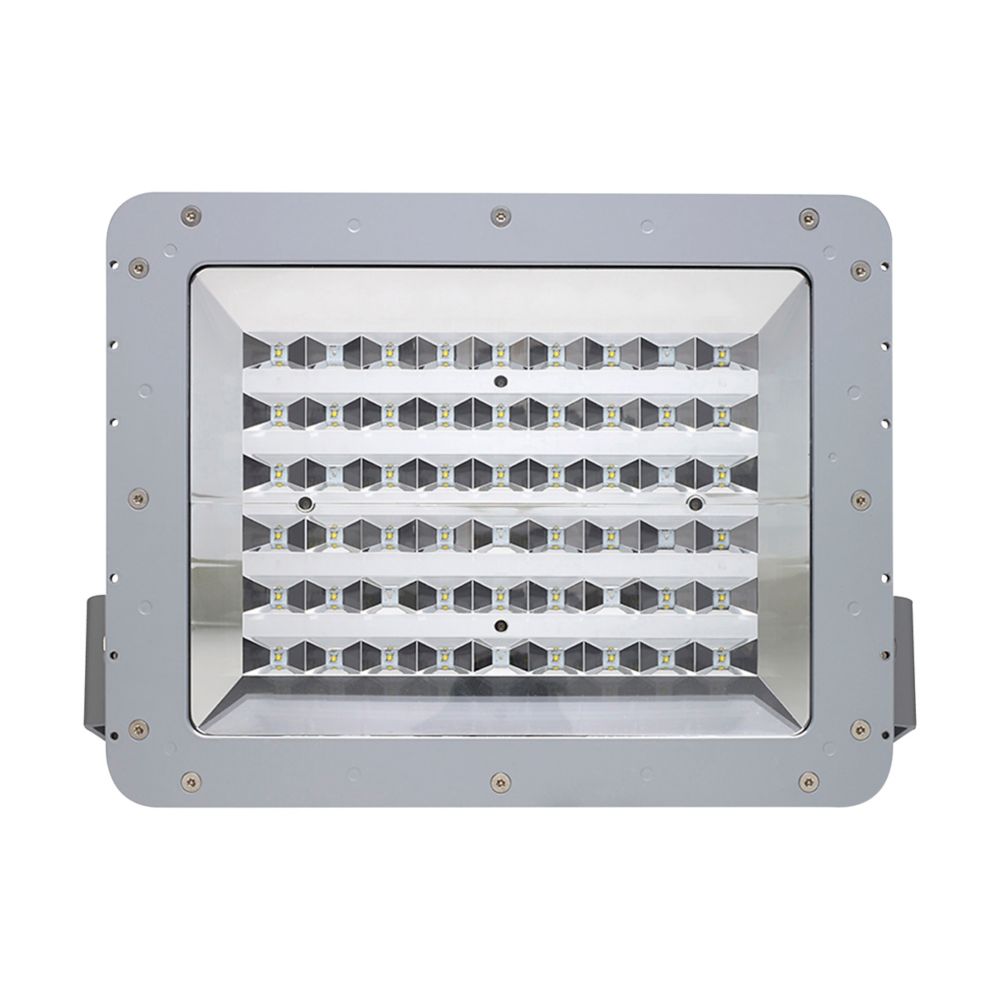

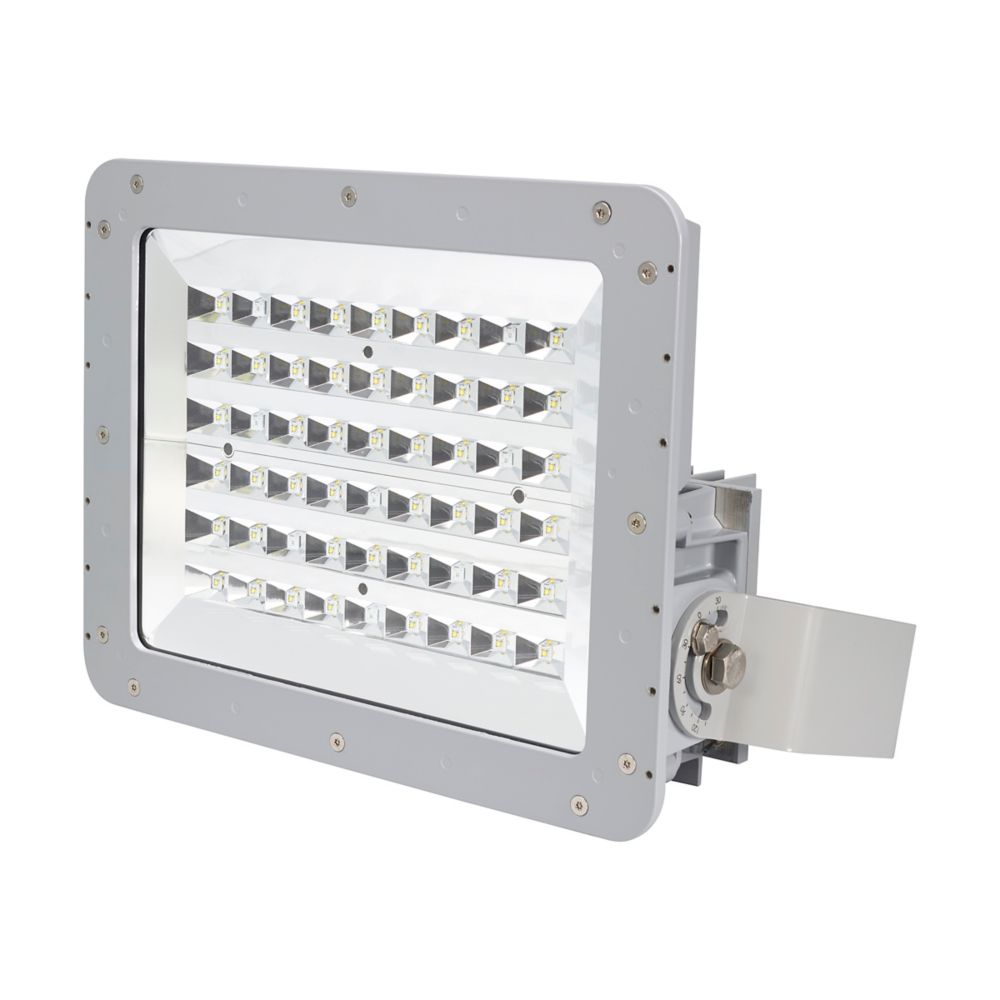

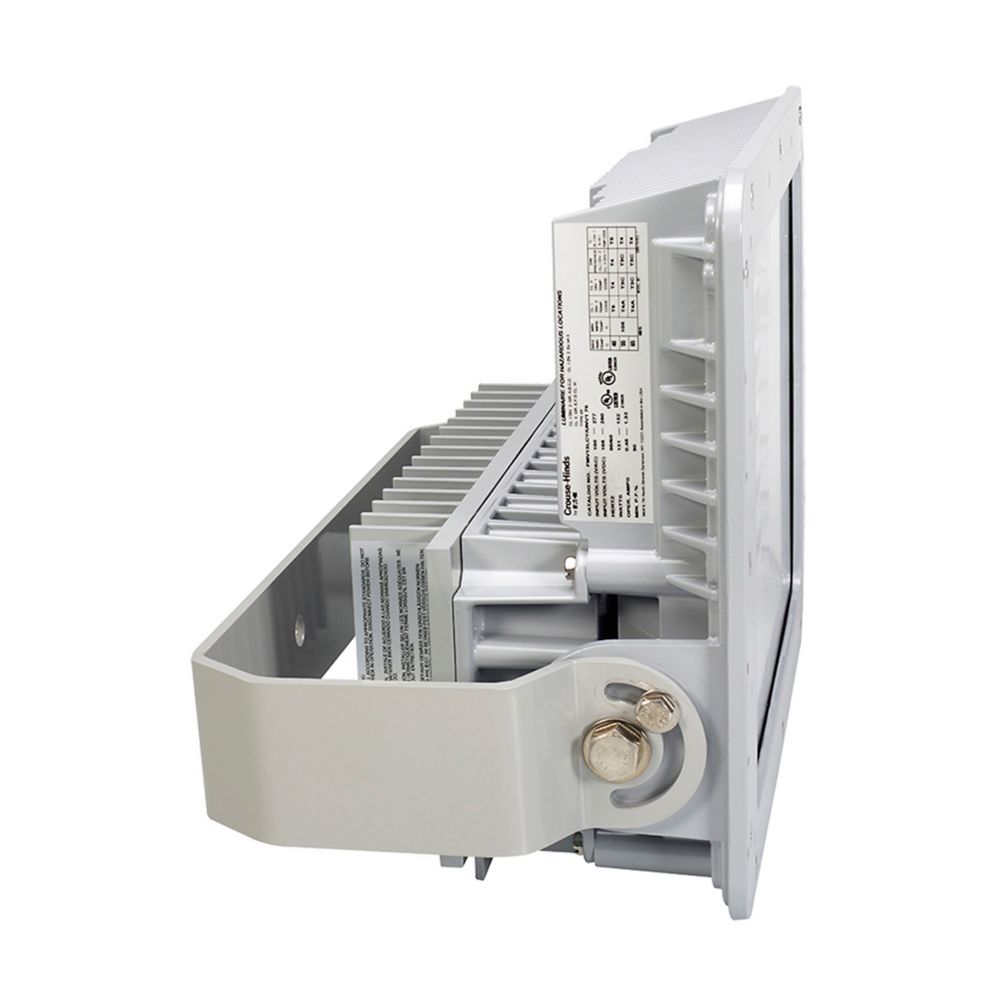

PFMA20LCY/UNV1 76 is a Champ Pro series high lumen LED floodlight designed for heavy industrial and harsh environments.Eaton Crouse-Hinds Champ Pro PFMA LED floodlight features 20,000 lumens output, dimmable driver, NEMA 4X/IP66 enclosure, die cast aluminum housing, and heat/impact resistant glass lens for corrosive, wet, and dusty conditions.Key Specifications
- Part Number: PFMA20LCY/UNV1 76
- Manufacturer: Eaton Crouse-Hinds
- Lumens: 20000
- Voltage: 100-277 Vac, 127-300 Vdc
- Amperage: 1.76 A
- Wattage: 177 W
- Frequency: 50/60 Hz
- NEMA Rating: 4X
- IP Rating: IP66
- Color Temperature: Cool white
- Lumens per Watt: 115 lm/W
- Equivalent: 600-750 W
Specifications
- Part Number: PFMA20LCY/UNV1 76
- Manufacturer : Eaton Crouse-Hinds
- Brand : Eaton Crouse-Hinds
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 100-277 Vac, 127-300 Vdc
- Amperage : 1.76 A
- Nema Rating : 4X
- Watts : 177W
- Enclosure : IP66
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 20000
- Lumens per watt : 115
- Color temperature : Cool white
- Mounting Method : Yoke
- Equivalent luminaire : 600-750 W
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662276648586
- Dimensions : 15.5 in x 12 in x 7 in (Length/Depth x Height x Width)
- Weight : 32.5 lb
