Product Info
- Manufacturer:Eaton Crouse-Hinds
Description
PFMA-9-76-PC-UNV1-M2

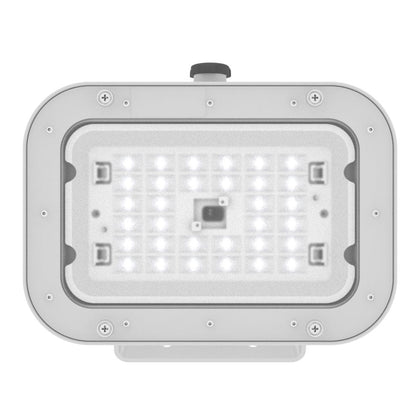

PFMA-9-76-PC-UNV1-M2 is an Eaton Crouse-Hinds Champ Pro series LED floodlight designed for ordinary and non-hazardous locations.This dimmable LED floodlight features 9000 lumens output at 162 lm/W efficiency, 100-277 Vac universal voltage, 50/60 Hz frequency, NEMA 4X/IP66/IP67 ratings, die cast aluminum construction with clear polycarbonate lens, yoke mounting, and 3/4" NPT entries.Key Specifications
- Part Number: PFMA-9-76-PC-UNV1-M2
- Manufacturer: Eaton Crouse-Hinds
- Lumens: 9000
- Lumens per Watt: 162 lm/W
- Voltage Rating: 100-277 Vac
- Frequency: 50/60 Hz
- Amperage: 0.59 - 0.22 A
- Wattage: 58 W
- Color Temperature: Cool White
- NEMA Rating: 4X
- IP Rating: IP66/IP67
- Mounting: Yoke
- Lens: Clear Polycarbonate
- Entry Size: 3/4" NPT
Specifications
- Part Number: PFMA-9-76-PC-UNV1-M2
- Manufacturer : Eaton Crouse-Hinds
- Brand : Eaton Crouse-Hinds
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 100-277 Vac
- Amperage : 0.59 - 0.22 A
- Nema Rating : 4X
- Watts : 58W
- Enclosure : IP66/IP67
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP67 IP66
- Lumens : 9000
- Lumens per watt : 162 lm/W
- Color temperature : Cool White
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277153782
- Dimensions : 16.12 in x 14.94 in x 9.94 in (Length/Depth x Height x Width)
- Weight : 23.85 lb
