Product Info
- Manufacturer:Eaton
Description
PFMA-7-66-UNV3-M2

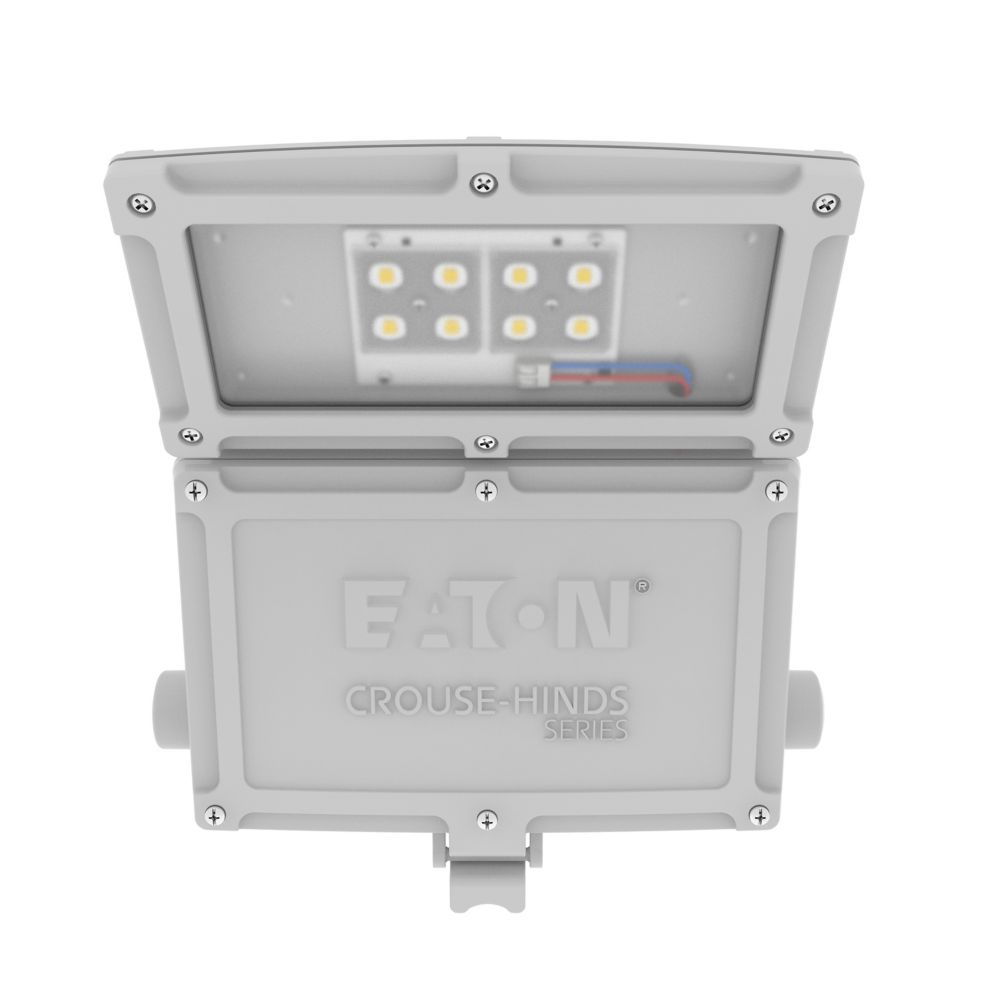

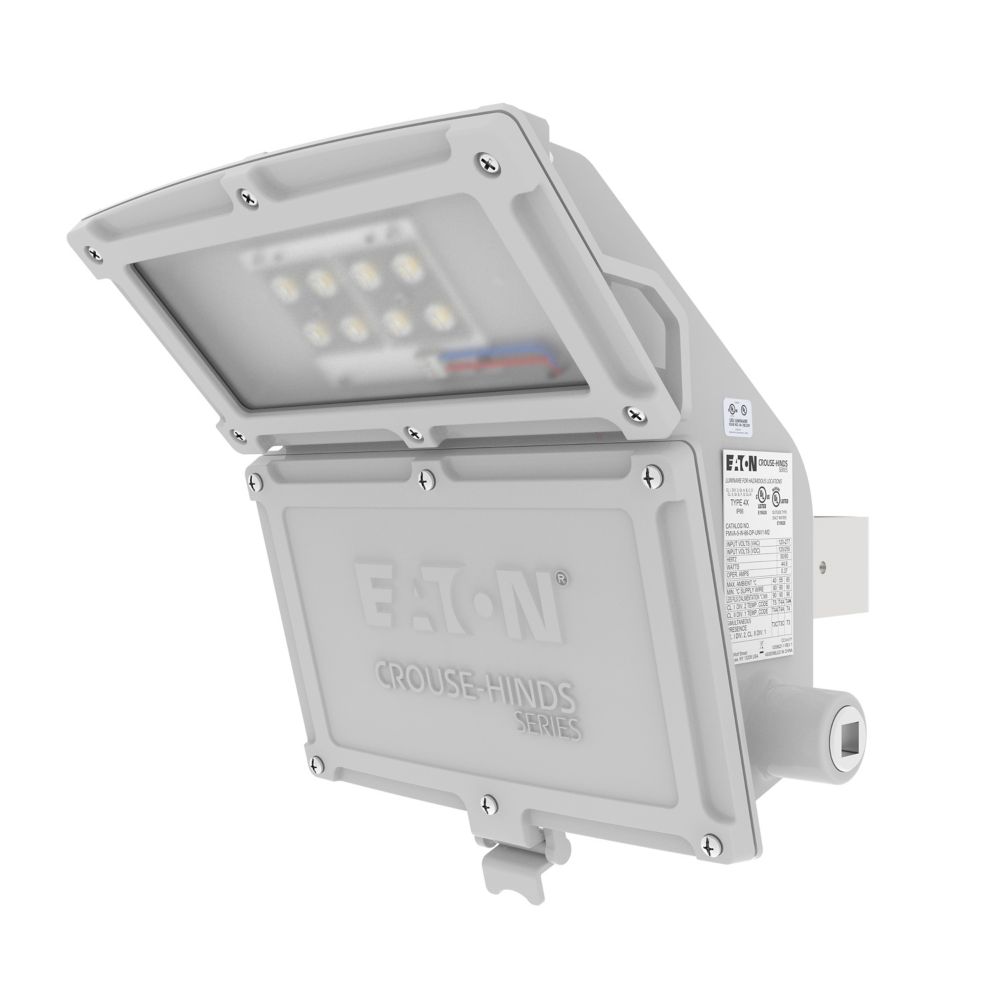

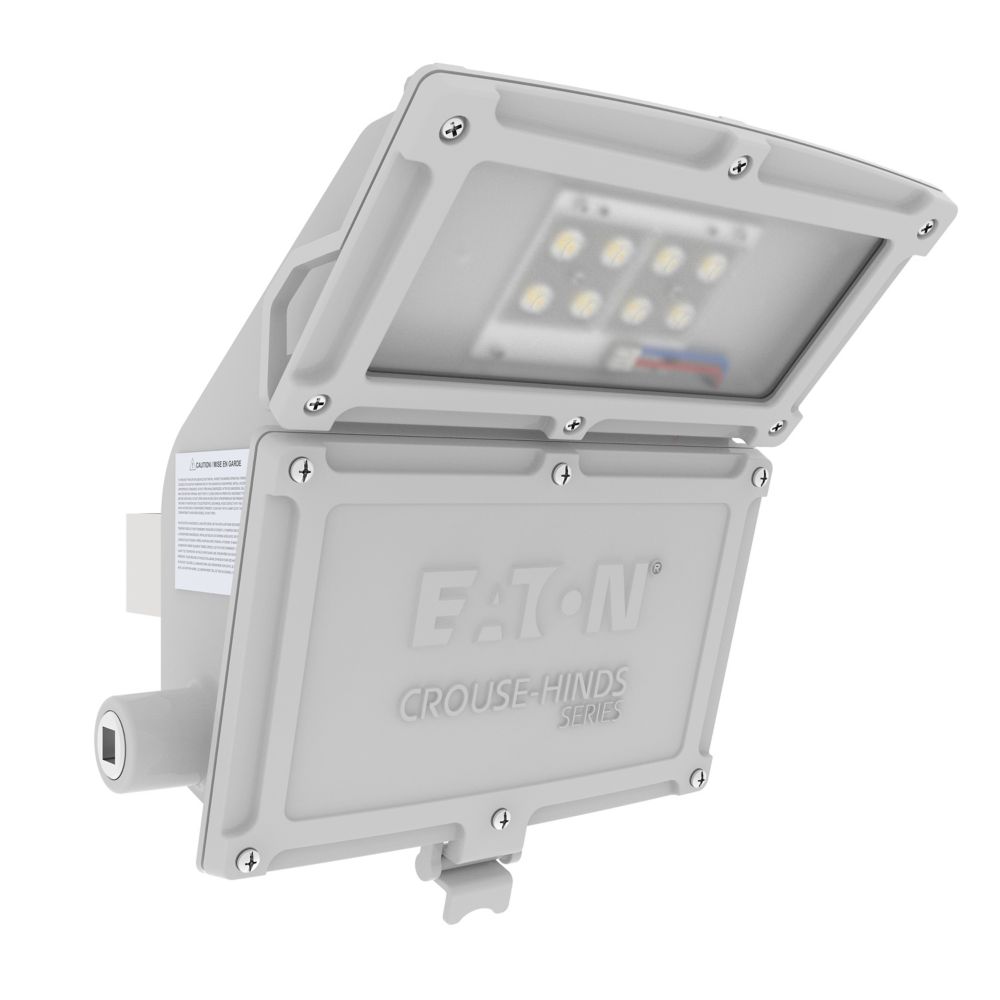

PFMA-7-66-UNV3-M2 is an Eaton Crouse-Hinds series Champ Pro LED floodlight designed for ordinary/non-hazardous locations.This dimmable LED floodlight features 7000 lumens output at 115 lm/W, 347-480 Vac voltage rating, 50/60 Hz frequency, and NEMA 4X/IP66 ratings for harsh environments.Key Specifications
- Part Number: PFMA-7-66-UNV3-M2
- Manufacturer: Eaton
- Voltage: 347-480 Vac
- Amperage: 0.16 A
- Lumens: 7000
- Lumens per Watt: 115
- Frequency: 50/60 Hz
- Wattage: 56 W
- Color Temperature: Cool white
- NEMA Rating: 4X
- IP Rating: IP66
- Mounting: Yoke
Specifications
- Part Number: PFMA-7-66-UNV3-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 347-480 Vac
- Amperage : 0.16 A
- Nema Rating : 4X
- Watts : 56W
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 7000
- Lumens per watt : 115
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277147590
- Dimensions : 14.1 in x 12.8 in x 12.6 in (Length/Depth x Height x Width)
- Weight : 14.7 lb
