- Manufacturer:Eaton
Description
PFMA-5-W-66-UNV3-M2

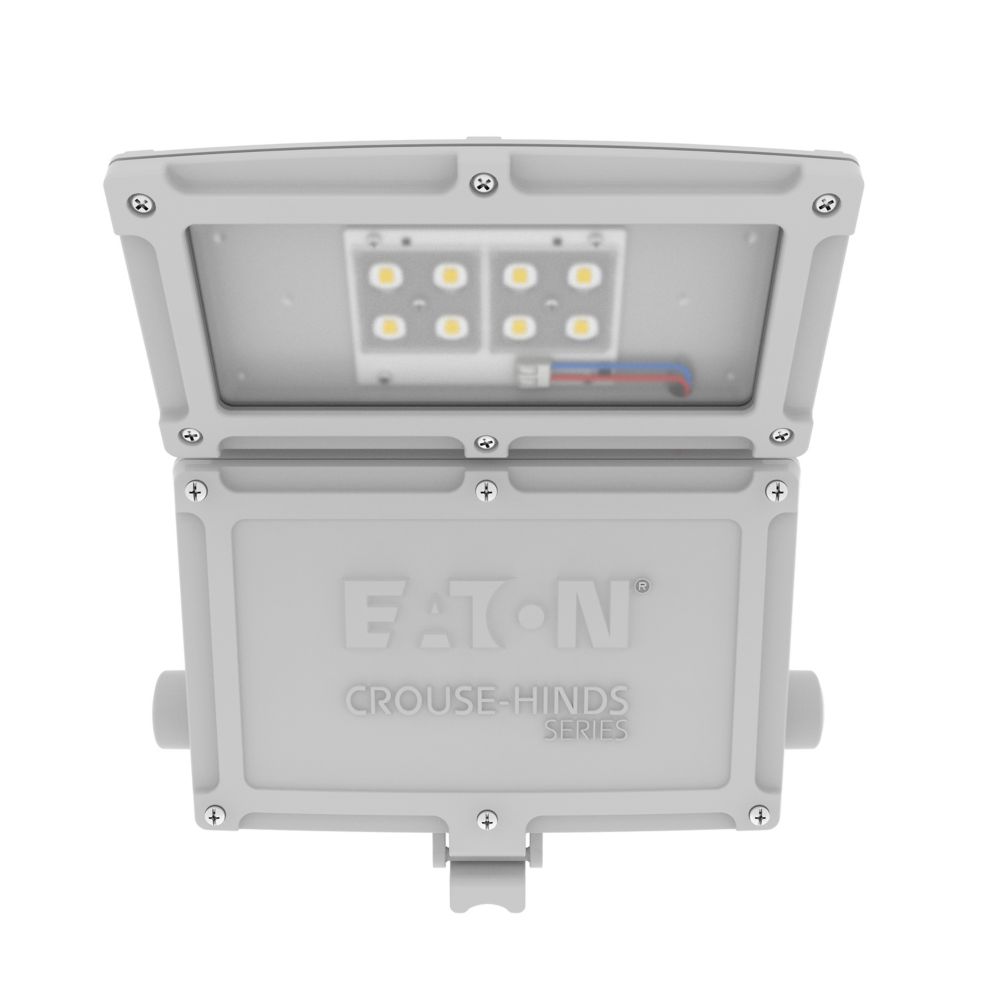

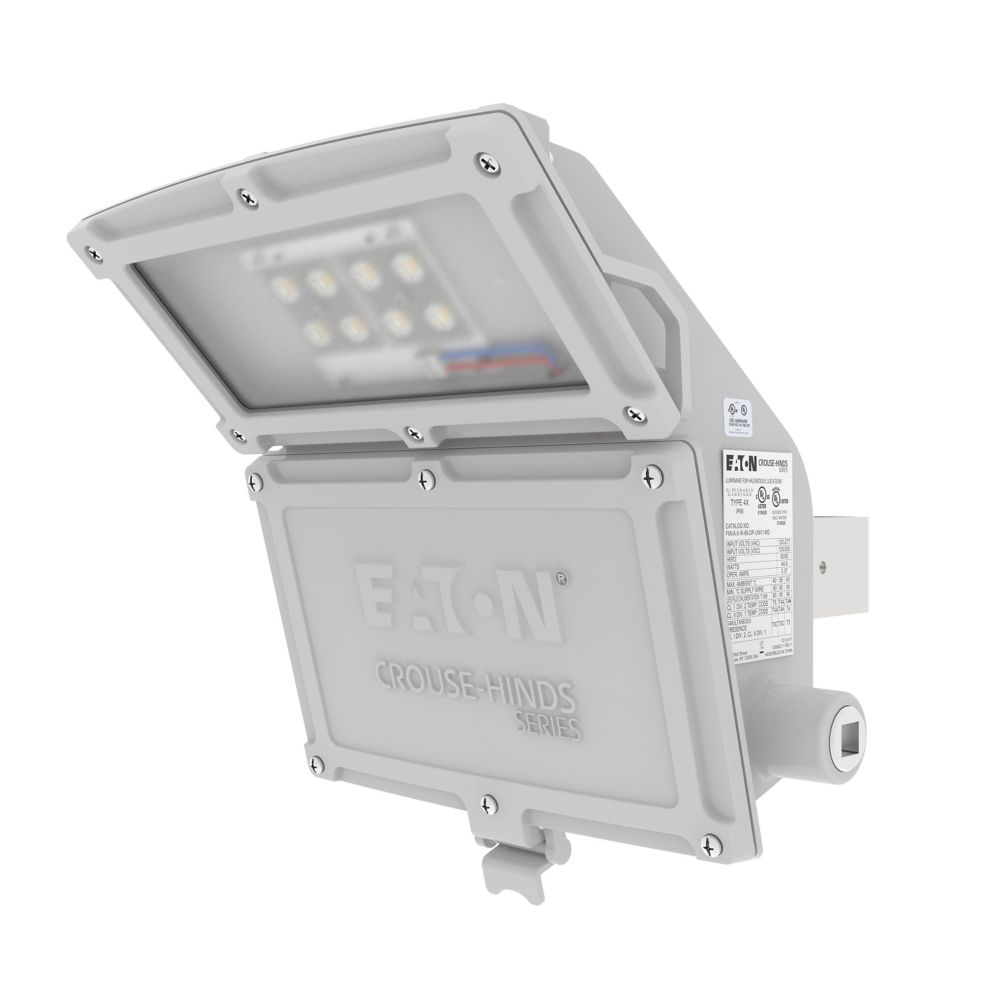

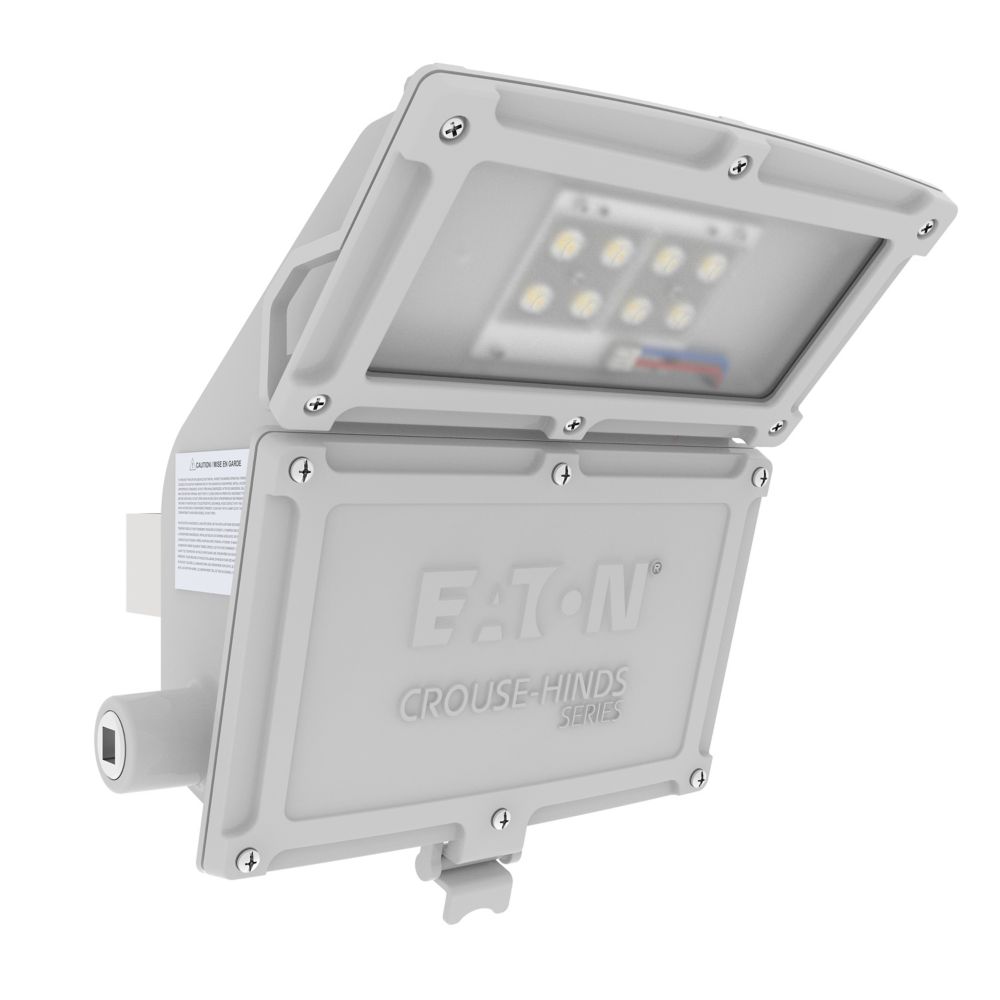

PFMA-5-W-66-UNV3-M2 is an Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight designed for harsh industrial environments.This warm white LED floodlight features a dimmable driver, heat and impact resistant glass lens, 5000 lumens output at 116 lm/W, and operates at 50/60 Hz with 0.13A current draw.Key Specifications
- Part Number: PFMA-5-W-66-UNV3-M2
- Manufacturer: Eaton
- Amperage: 0.13 A
- Lumens: 5000
- Frequency: 50/60 Hz
- Dimming: Dimmable driver
- Lens: Heat and impact resistant glass
- Power Factor: > 0.90
Specifications
- Part Number: PFMA-5-W-66-UNV3-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 347-480 Vac
- Amperage : 0.13 A
- Nema Rating : 4X
- Watts : 43W
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 5000
- Lumens per watt : 26W
- Color temperature : Warm white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277147569
- Dimensions : 14.1 in x 12.8 in x 12.6 in (Length/Depth x Height x Width)
- Weight : 14.7 lb
