- Manufacturer:Eaton
Description
PFMA-5-66-DG-UNV3-M2

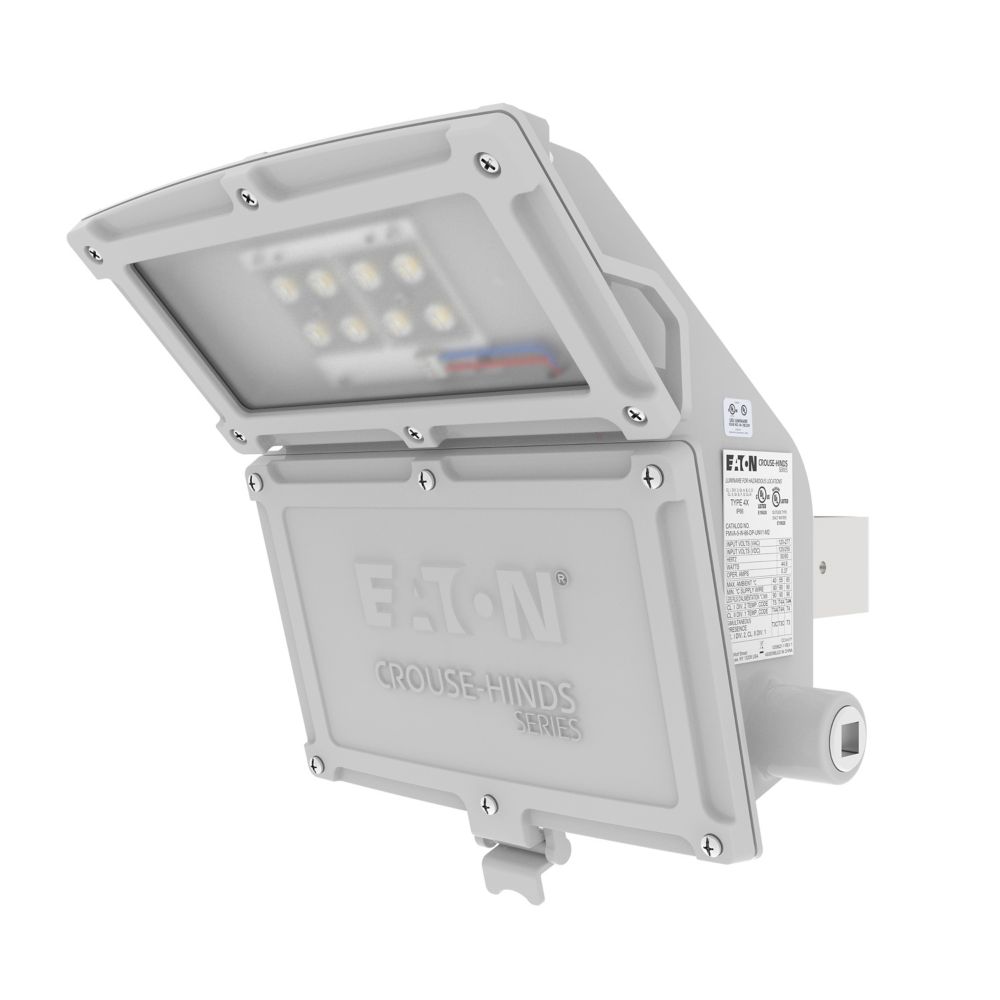

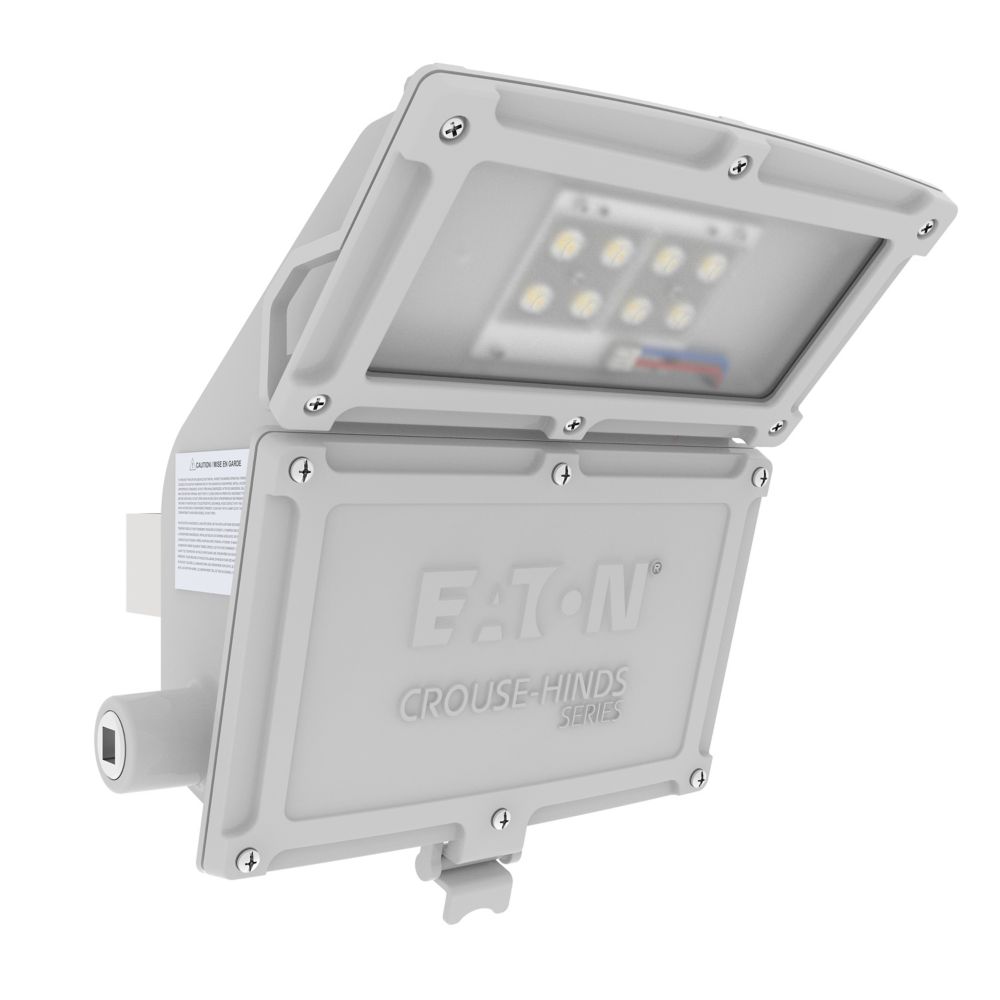

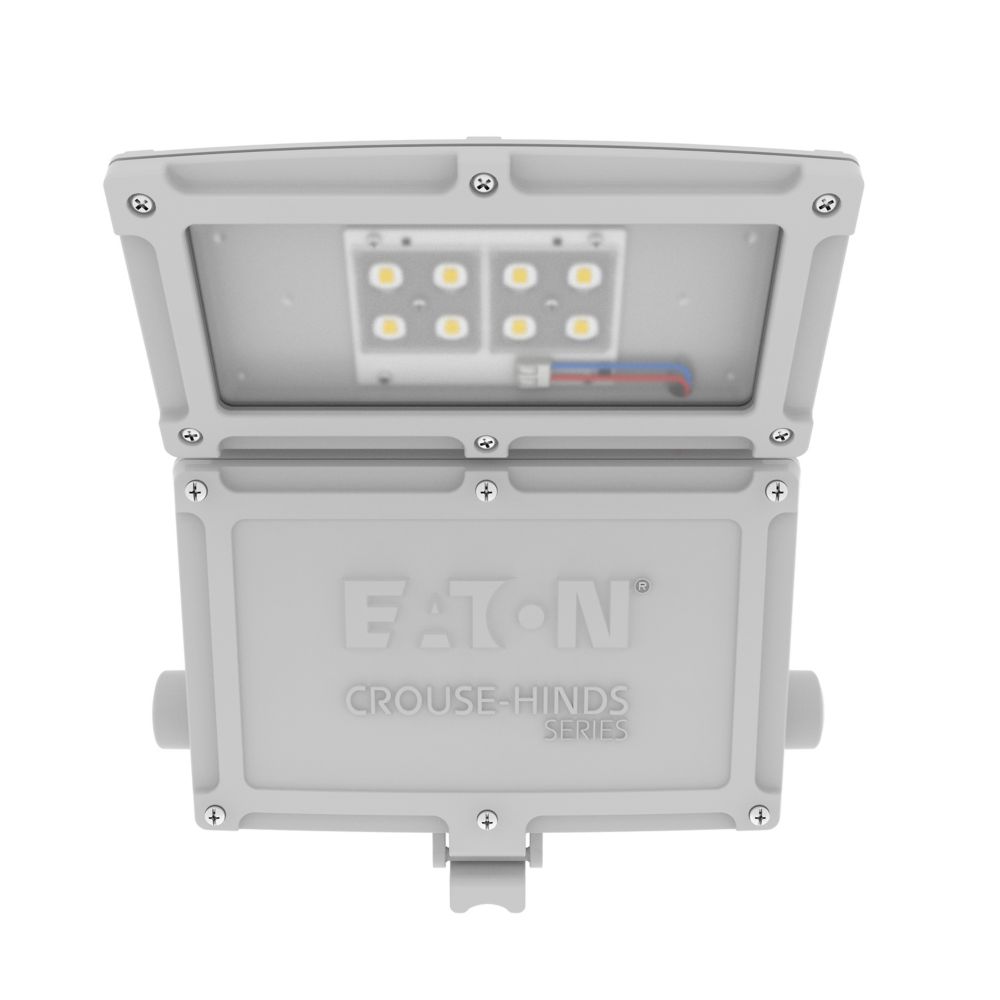

PFMA-5-66-DG-UNV3-M2 is an Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight designed for ordinary/non-hazardous locations.This dimmable LED floodlight features diffused glass lens, die cast aluminum construction, yoke mounting, and 6x6 optical distribution for harsh industrial applications.Key Specifications
- Part Number: PFMA-5-66-DG-UNV3-M2
- Manufacturer: Eaton
- Lumens: 5000
- Wattage: 43W
- Voltage: 347-480 Vac
- Amperage: 0.13A
- Frequency: 50/60 Hz
- NEMA Rating: 4X
- IP Rating: IP66
- Color Temperature: Cool white
- Dimming: Dimmable driver
- Power Factor: >0.90
- Mounting: Yoke
Specifications
- Part Number: PFMA-5-66-DG-UNV3-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 347-480 Vac
- Amperage : 0.13A
- Nema Rating : 4X
- Watts : 43W
- Enclosure : IP66
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 5000
- Lumens per watt : 26W
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277147545
- Dimensions : 14.1 in x 12.8 in x 12.6 in (Length/Depth x Height x Width)
- Weight : 14.7 lb
