Product Info
- Manufacturer:Eaton
Description
PFMA-3-W-66-UNV3-M2

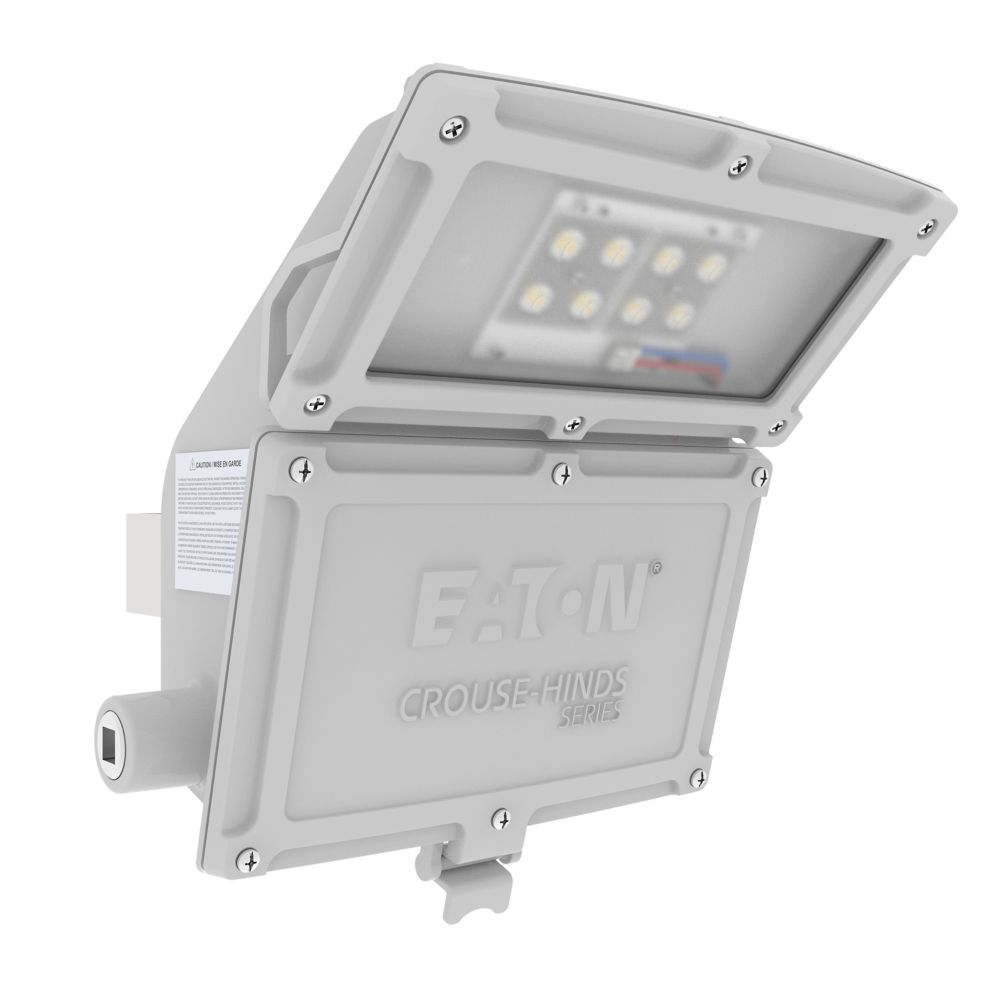

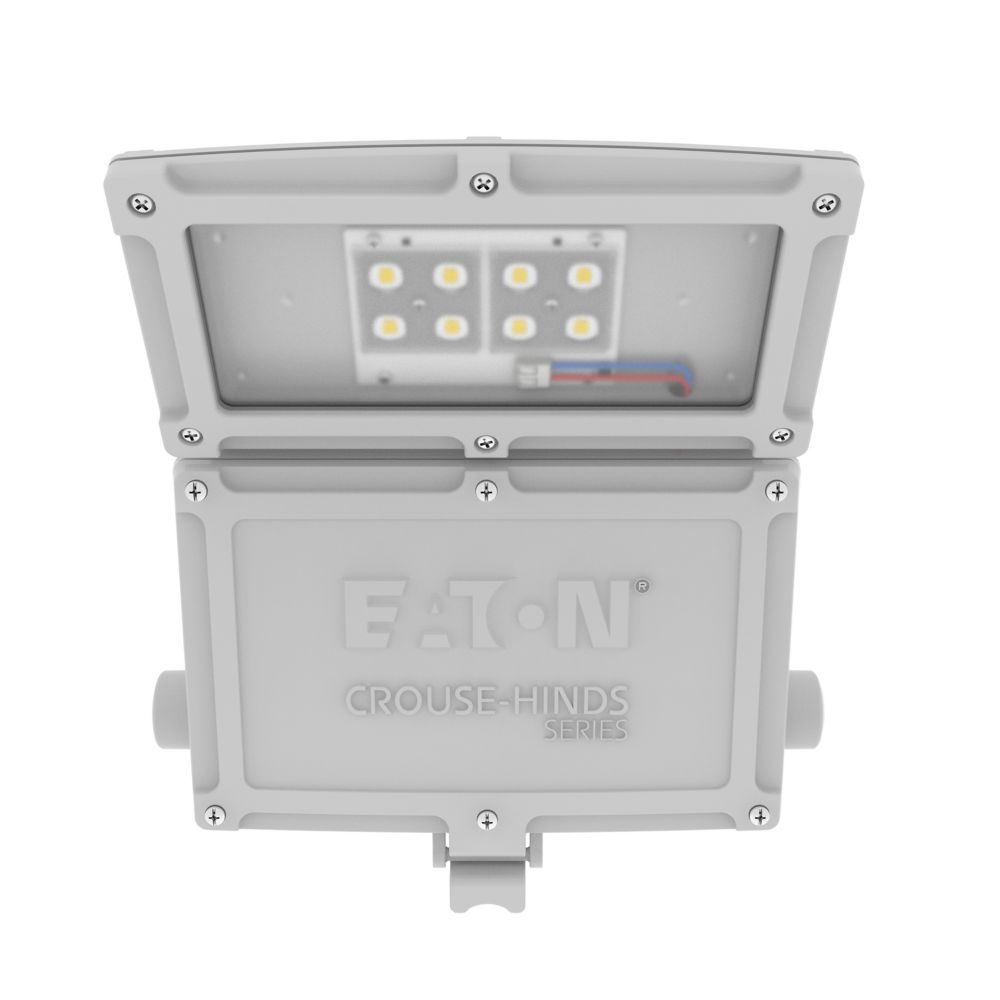

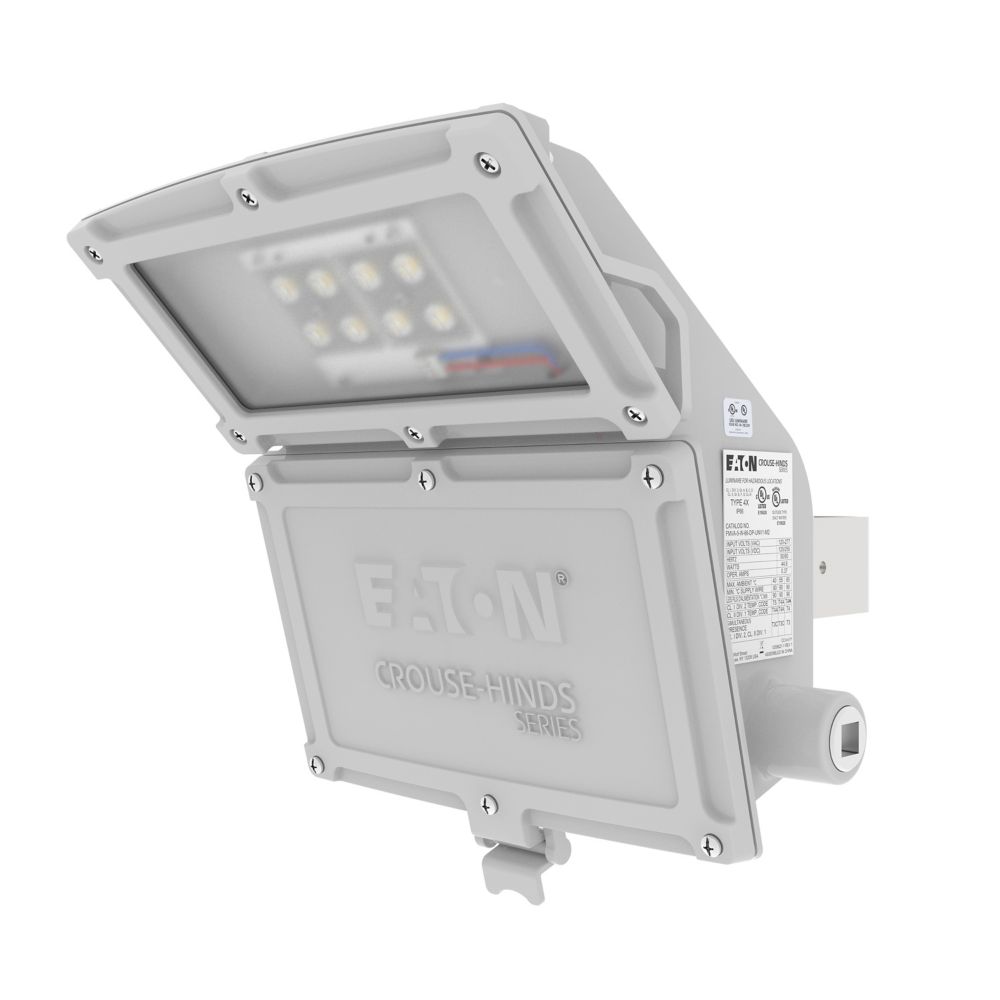

PFMA-3-W-66-UNV3-M2 is an Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight designed for ordinary/non-hazardous locations.This dimmable LED floodlight features 3000 lumens at 111 lm/W, warm white color temperature, 347-480 Vac voltage rating, 50/60 Hz frequency, 0.09 A amperage, NEMA 4X/IP66 ratings, heat and impact resistant glass lens, die cast aluminum construction, and yoke mounting with 6x6 optics.Key Specifications
- Part Number: PFMA-3-W-66-UNV3-M2
- Manufacturer: Eaton
- custitem_voltage: 347-480 Vac
- custitem_amperage: 0.09 A
- custitem_hz: 50/60 Hz
- custitem_nsdev_lumens: 3000
- nsdev_lumens_w: 111
- nsdev_color_temp: Warm white
- nema_rating: 4X
- nsdev_mounting_method: Yoke
Specifications
- Part Number: PFMA-3-W-66-UNV3-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 347-480 Vac
- Amperage : 0.09 A
- Nema Rating : 4X
- Watts : 30W
- Enclosure : IP66
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 3000
- Lumens per watt : 111
- Color temperature : Warm white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277147477
- Dimensions : 14.1 in x 12.8 in x 12.6 in (Length/Depth x Height x Width)
- Weight : 14.7 lb
