Product Info
- Manufacturer:Eaton
Description
PFMA-3-66-DG-UNV1-M2

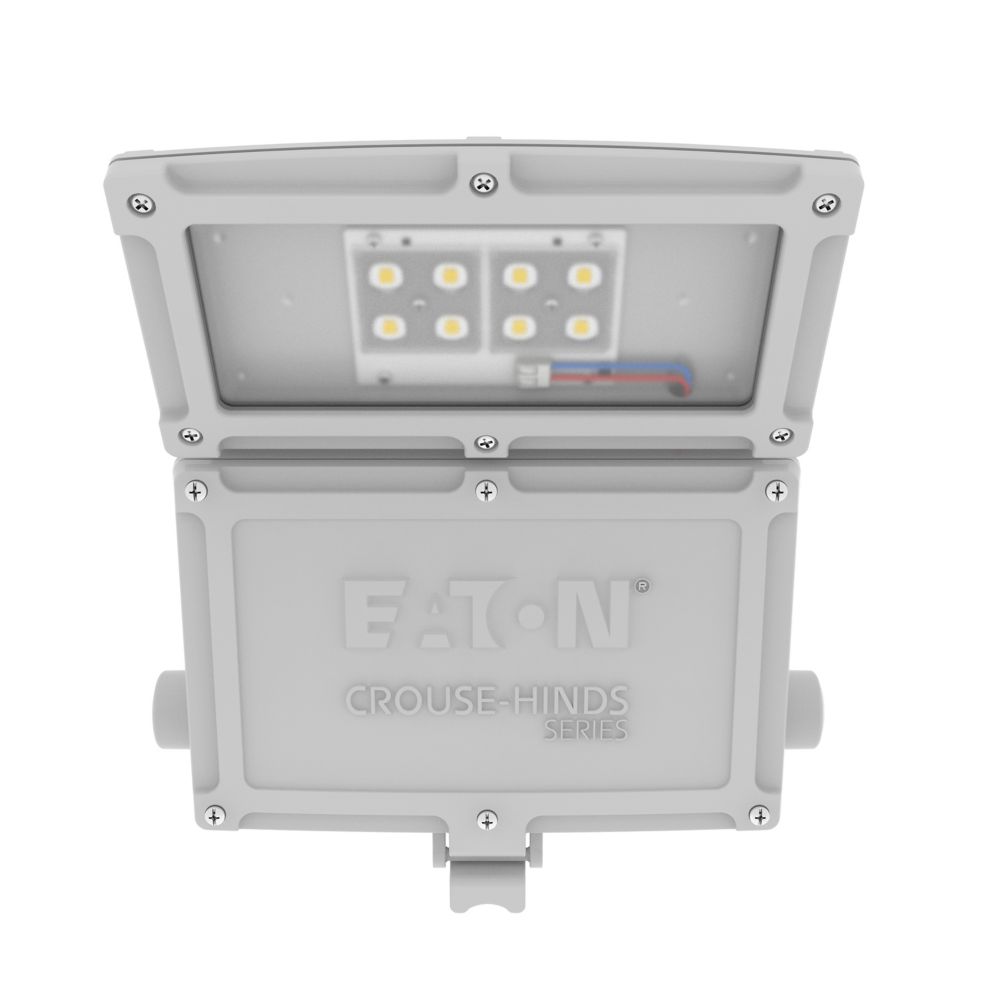

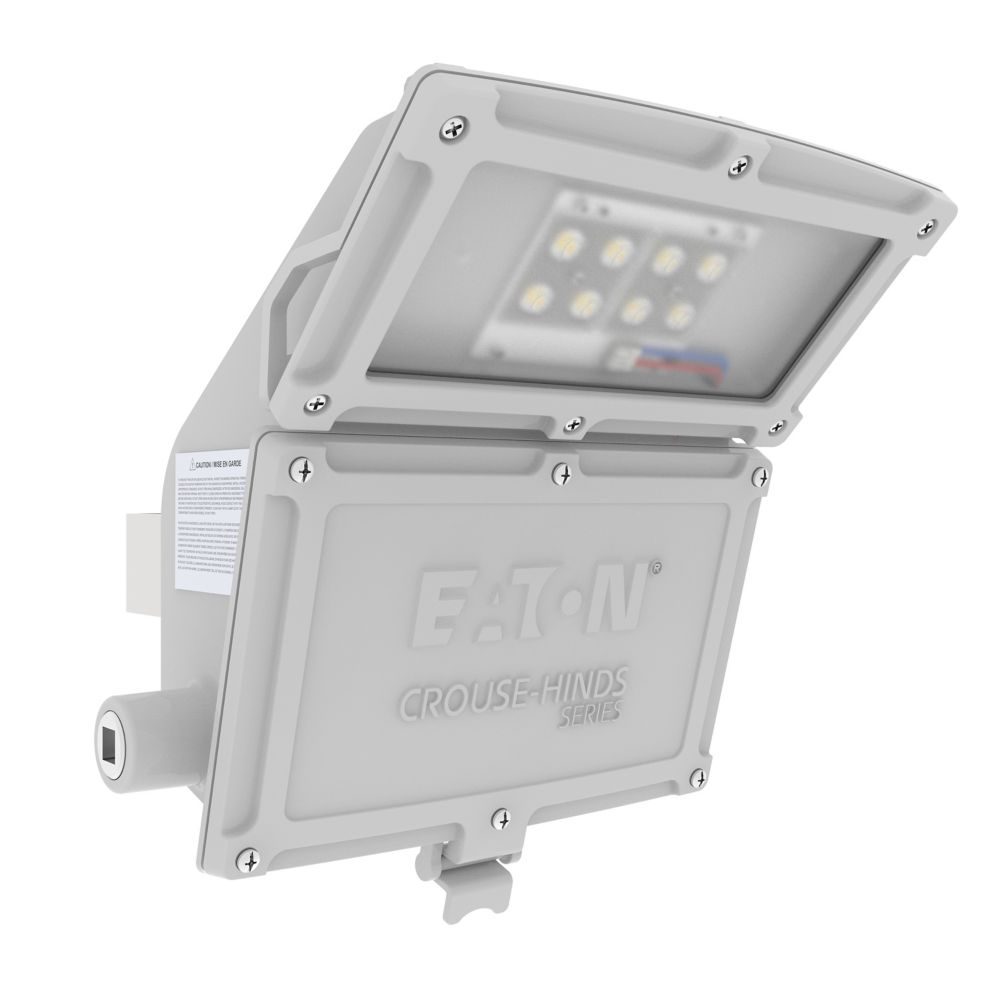

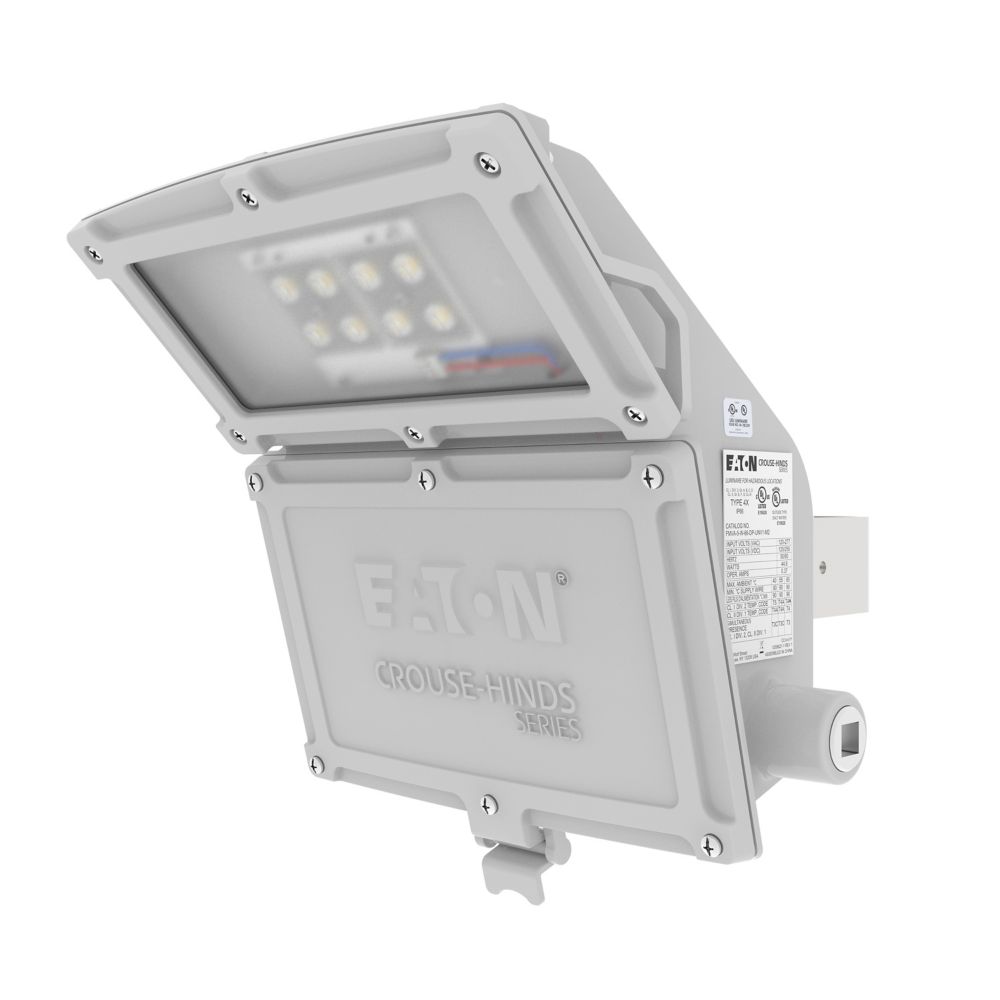

PFMA-3-66-DG-UNV1-M2 is an Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight designed for ordinary/non-hazardous locations.This dimmable LED floodlight features 3000 lumens output at 111 lm/W, 6x6 optical distribution with diffused glass lens, yoke mounting, NEMA 4X IP66 enclosure in die cast aluminum, and universal voltage input.Key Specifications
- Part Number: PFMA-3-66-DG-UNV1-M2
- Manufacturer: Eaton
- Product Type: LED Floodlight
- Voltage Rating: 120-277 Vac, 125-250 Vdc
- Frequency Rating: 50/60 Hz
- Amperage Rating: 0.26A
- Wattage: 30W
- Lumens: 3000
- Lumens per Watt: 111
- Color Temperature: Warm white
- Mounting Method: Yoke
- NEMA Rating: 4X
- Ingress Protection: IP66
- Lens Material: Diffused glass
- Optical Distribution: 6x6
- Dimming: Dimmable driver
- Power Factor: > 0.90
- Material: Die cast aluminum
Specifications
- Part Number: PFMA-3-66-DG-UNV1-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 120-277 Vac, 125-250 Vdc
- Amperage : 0.26A
- Nema Rating : 4X
- Watts : 30W
- Enclosure : Die cast aluminum
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 3000
- Lumens per watt : 111
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277147439
- Dimensions : 14.1 in x 12.8 in x 12.6 in (Length/Depth x Height x Width)
- Weight : 14.7 lb
