PFMA-15-76-PC-UNV3-M2 - Eaton Crouse-Hinds Lighting and controls 105W 15000lm

PFMA-15-76-PC-UNV3-M2

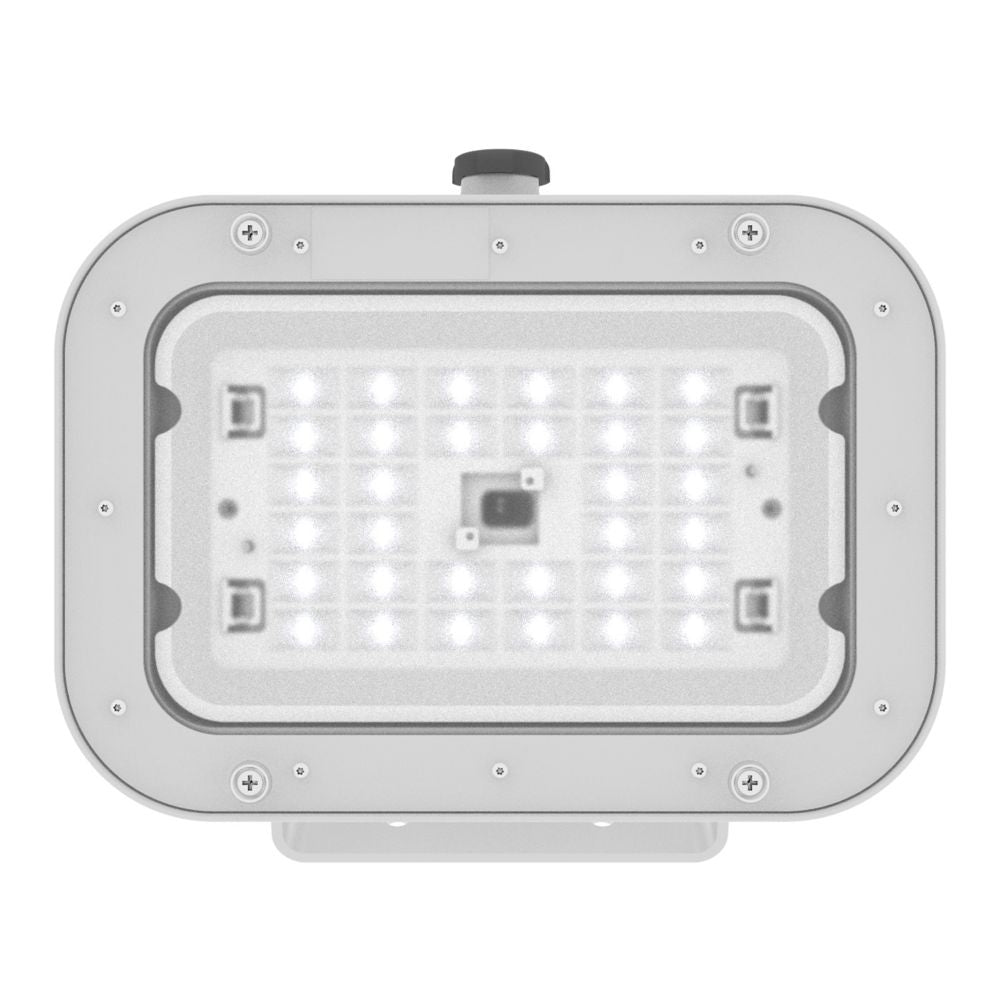

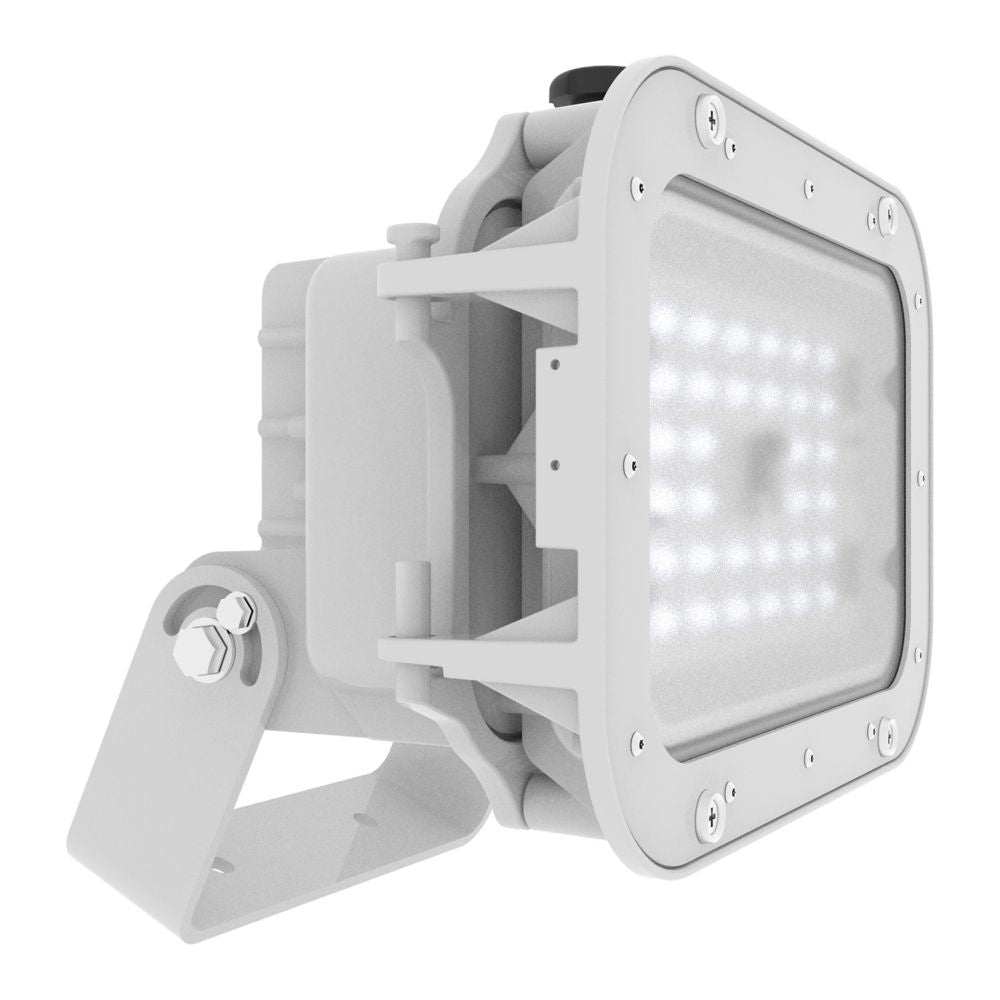

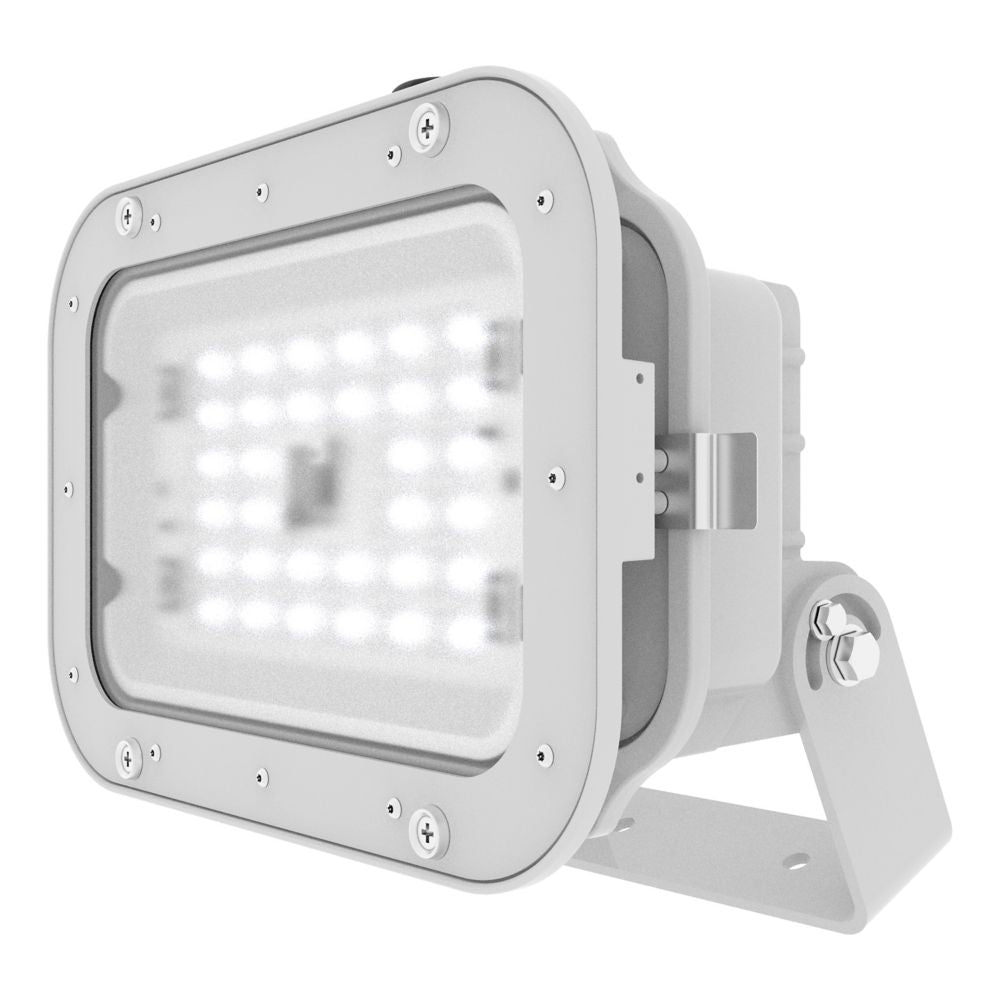

PFMA-15-76-PC-UNV3-M2 is an Eaton Crouse-Hinds Champ Pro series LED floodlight designed for ordinary and non-hazardous locations.This dimmable LED floodlight features 105W power consumption, 15000 lumens output at 154 lm/W efficiency, cool white color temperature, 347-480 Vac universal voltage rating, and 50/60 Hz frequency, with NEMA 4X and IP66/IP67 ratings for harsh environments. It includes 7x6 optical distribution, 3/4" entry size, clear polycarbonate lens, and yoke mounting on die-cast aluminum housing.Key Specifications

• Part Number: PFMA-15-76-PC-UNV3-M2
• Manufacturer: Eaton Crouse-Hinds
• Wattage: 105W
• Lumens: 15000
• Lumens per Watt: 154 lm/W
• Voltage: 347-480 Vac
• Frequency: 50/60 Hz
• Amperage: 0.30 - 0.22A
• Color Temperature: Cool white
• Lens: Clear polycarbonate
• Entry Size: 3/4"
• Optical Distribution: 7x6
• NEMA Rating: 4X
• IP Rating: IP66/IP67
• Mounting: Yoke

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PFMA-15-76-PC-UNV3-M2
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Floodlights
• Voltage : 347-480 Vac
• Amperage : 0.30 - 0.22A
• Nema Rating : 4X
• Watts : 105W
• Enclosure : IP66/IP67
• Mounting : Yoke
• Hz : 50/60 Hz
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP67 IP66
• Lumens : 15000
• Lumens per watt : 154
• Color temperature : Cool white
• Mounting Method : Yoke
• Dimming : Dimmable driver
• Power factor : > 0.90
• Entry type : 3/4"

Product Data

• UPC : 662277153744
• Dimensions : 16.12 in x 14.94 in x 9.94 in (Length/Depth x Height x Width)
• Weight : 23.85 lb
