PFMA-15-76-M20-UNV1-M2 - Eaton Crouse-Hinds Lighting and controls 100-277 V 107 W

PFMA-15-76-M20-UNV1-M2

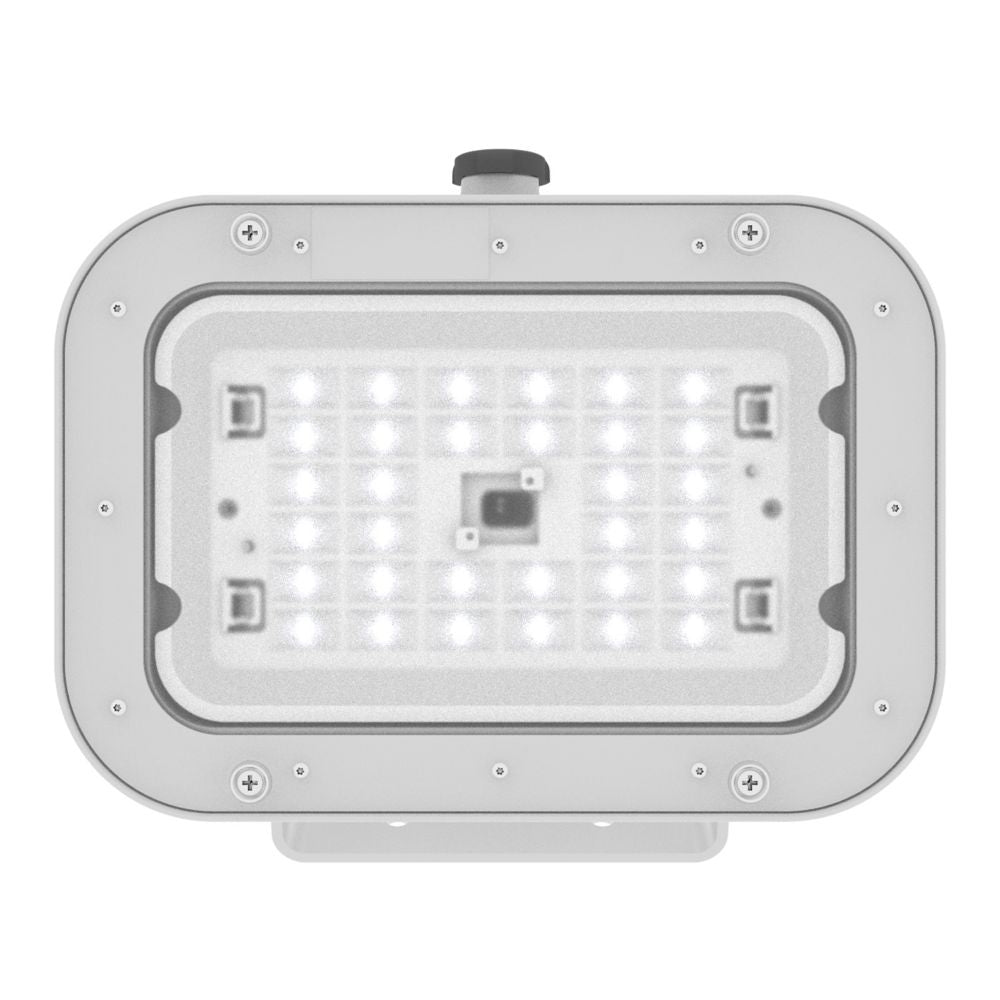

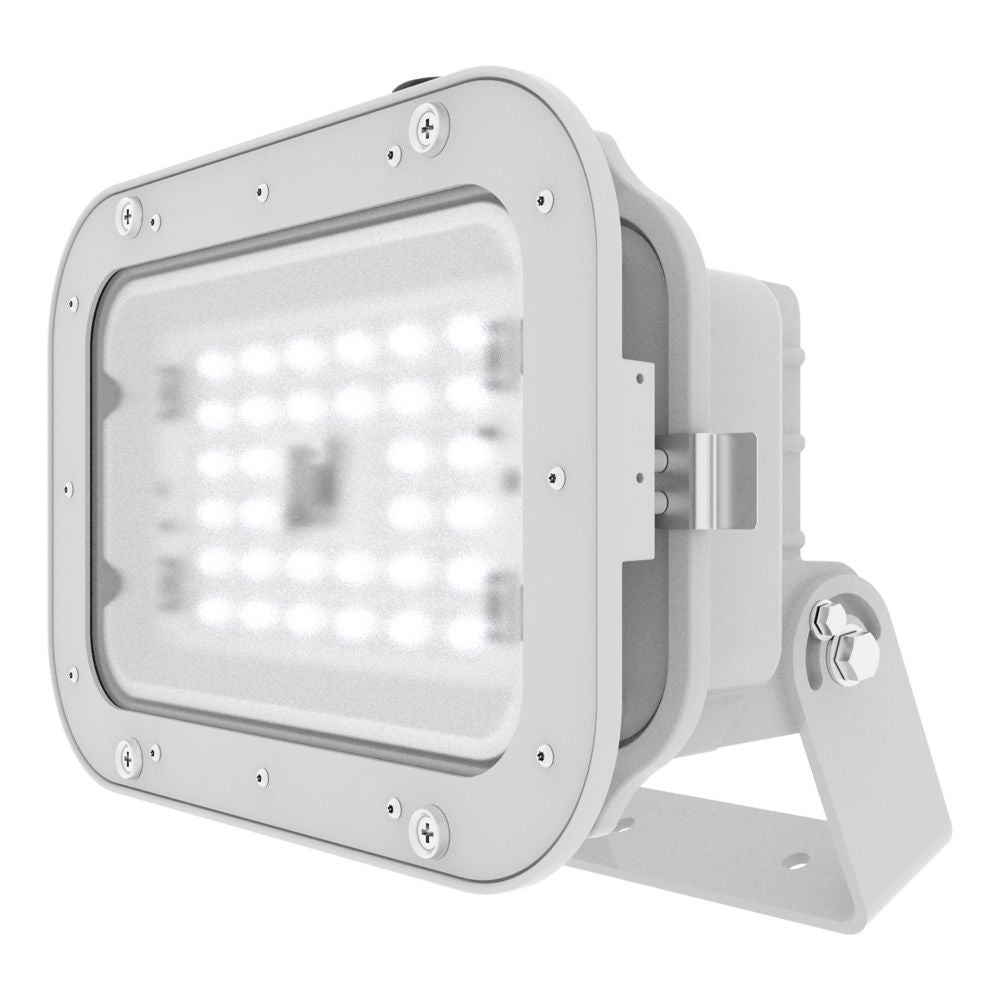

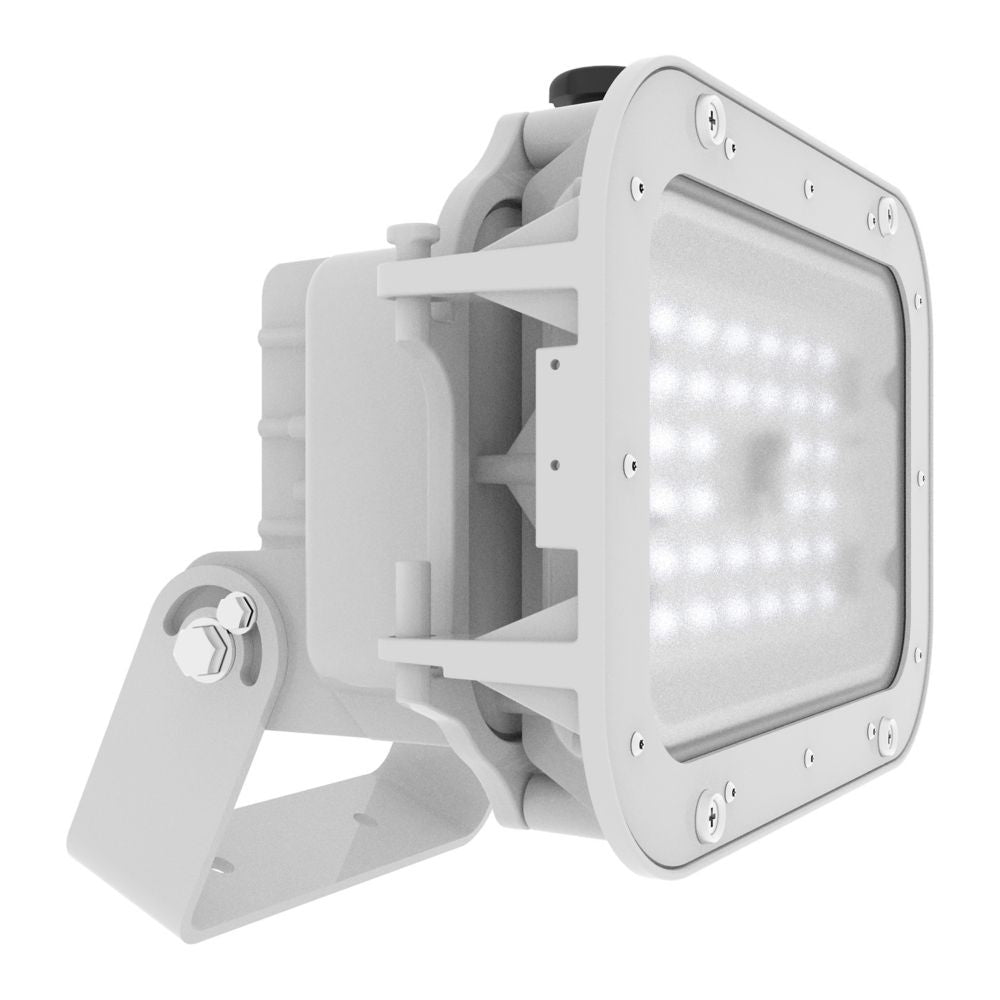

PFMA-15-76-M20-UNV1-M2 is an Eaton Crouse-Hinds Champ Pro PFMA LED floodlight.

It is rated for ordinary/non-hazardous locations, uses a yoke mount, and includes a 20 mm entry, 7x6 optics, a dimmable driver, and a die-cast aluminum housing.

Key Specifications

• Part Number: PFMA-15-76-M20-UNV1-M2
• Manufacturer: Eaton Crouse-Hinds
• Product Type: Floodlight
• Area classification: Ordinary/Non-Hazardous Locations
• NEMA Rating: 4X
• Ingress protection (IP) ratings: IP67 IP66
• Lamp type: LED
• Lumens: 15000
• Lumens per watt: 154
• Color temperature: Cool white
• Mounting Method: Yoke
• Voltage rating: 100-277 Vac
• Frequency rating: 50/60 Hz
• Optical distribution: 7x6
• Entry size: 20 mm
• Lens material: Heat and impact resistant glass
• Wattage: 107W
• Dimming: Dimmable driver
• Power factor: > 0.90
• Amperage Rating: 1.07 - 0.38A
• Material: Die cast aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PFMA-15-76-M20-UNV1-M2
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Floodlights
• Type : Floodlight
• Voltage : 100-277 V
• Amperage : 1.07-0.38 A
• Nema Rating : Type 4X; IP67
• Watts : 107W
• Enclosure : NEMA 4X
• Mounting : Yoke
• Hz : 50/60 Hz
• Protection : IP67 IP66
• Material : Die cast aluminum
• Rated Current : 1.07-0.38 A
• Ingress protection (IP) ratings : IP67 IP66
• Lumens : 15000
• Lumens per watt : 154
• Color temperature : Cool white
• Mounting Method : Yoke
• Dimming : Dimmable driver
• Power factor : > 0.90
• Special features : 7x6 optics
• Entry type : M20

Product Data

• UPC : 662277153676
• Dimensions : 16.12 in x 14.94 in x 9.94 in (Length/Depth x Height x Width)
• Weight : 25.1 lb
