Product Info
- Manufacturer:Eaton
Description
PFMA-15-76-DG-UNV3-M2

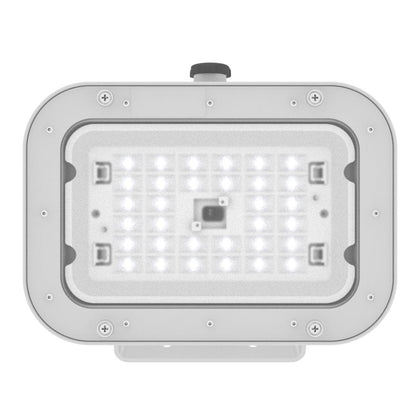

PFMA-15-76-DG-UNV3-M2 is an Eaton Crouse-Hinds series Champ Pro LED floodlight designed for ordinary/non-hazardous locations with diffused glass lens and yoke mounting.This dimmable LED floodlight features 7x6 optics, NEMA 4X IP66/67 rating, die cast aluminum housing with gray epoxy powder coat, and operates at 347-480 Vac, 50/60 Hz with 105W power consumption.Key Specifications
- Part Number: PFMA-15-76-DG-UNV3-M2
- Manufacturer: Eaton
- Voltage: 347-480 Vac
- Amperage: 0.30 - 0.22A
- Lumens: 15000
- Lumens per Watt: 154 lm/W
- Frequency: 50/60 Hz
- Wattage: 105W
- Color Temperature: Cool white
- NEMA Rating: 4X
- Mounting: Yoke
Specifications
- Part Number: PFMA-15-76-DG-UNV3-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 347-480 Vac
- Amperage : 0.30 - 0.22A
- Nema Rating : 4X
- Watts : 105W
- Enclosure : IP66 IP67
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP67 IP66
- Lumens : 15000
- Lumens per watt : 154 lm/W
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277154000
- Dimensions : 16.12 in x 14.94 in x 9.94 in (Length/Depth x Height x Width)
- Weight : 24.95 lb
