PFMA-13-76-PC-UNV1-M2 - Eaton Lighting and controls LED Floodlight 13000 Lumens

PFMA-13-76-PC-UNV1-M2

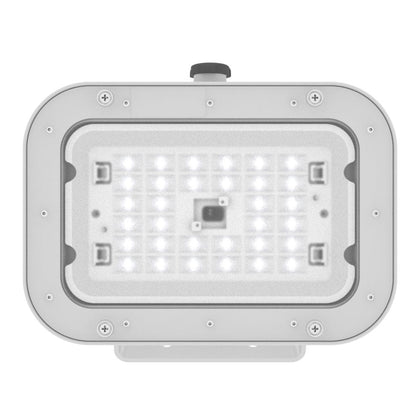

PFMA-13-76-PC-UNV1-M2 is an Eaton Crouse-Hinds Champ Pro series LED floodlight designed for ordinary/non-hazardous locations.This dimmable LED floodlight features 13000 lumens output at 154 lm/W efficiency, 100-277 Vac universal voltage input, and NEMA 4X/IP66/IP67 ratings for harsh environments. It includes 7x6 optical distribution, yoke mounting, and gray epoxy powder coat finish on die cast aluminum housing.Key Specifications

• Part Number: PFMA-13-76-PC-UNV1-M2
• Manufacturer: Eaton
• Voltage: 100-277 Vac
• Frequency: 50/60 Hz
• Lumens: 13000
• Lumens per Watt: 154
• Amperage: 0.91 - 0.32 A
• Wattage: 90 W
• Power Factor: > 0.90
• Color Temperature: Cool white
• Optical Distribution: 7x6
• Entry Size: 3/4"
• Lens Material: Clear polycarbonate
• NEMA Rating: 4X
• IP Rating: IP66/IP67
• Material: Die cast aluminum
• Mounting: Yoke

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PFMA-13-76-PC-UNV1-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Floodlights
• Voltage : 100-277 Vac
• Amperage : 0.91 - 0.32 A
• Nema Rating : 4X
• Watts : 90W
• Enclosure : Die cast aluminum
• Mounting : Yoke
• Hz : 50/60 Hz
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP67 IP66
• Lumens : 13000
• Lumens per watt : 154
• Color temperature : Cool white
• Mounting Method : Yoke
• Dimming : Dimmable driver
• Power factor : > 0.90

Product Data

• UPC : 662277153584
• Dimensions : 16.12 in x 14.94 in x 9.94 in (Length/Depth x Height x Width)
• Weight : 23.85 lb
