Product Info
- Manufacturer:Eaton Crouse-Hinds
Description
PFMA-13-76-M25-DG-UNV1-M2

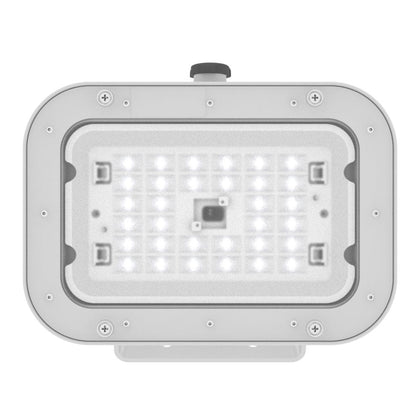

PFMA-13-76-M25-DG-UNV1-M2 is an Eaton Crouse-Hinds Champ Pro series LED floodlight designed for ordinary/non-hazardous locations with diffused glass lens and 25 mm entry.This high-performance LED floodlight delivers 13000 lumens at 154 lm/W with 7x6 optical distribution, yoke mounting, and NEMA 4X/IP66/IP67 protection. It features 100-277 Vac universal voltage, 50/60 Hz frequency, dimmable driver, and die cast aluminum construction with gray epoxy powder coat.Key Specifications
- Part Number: PFMA-13-76-M25-DG-UNV1-M2
- Manufacturer: Eaton Crouse-Hinds
- Voltage: 100-277 Vac
- Frequency: 50/60 Hz
- Amperage: 0.91 - 0.32A
- Lumens: 13000
- Lumens per Watt: 154
- Wattage: 90W
- Color Temperature: Cool white
- NEMA Rating: 4X
- Mounting: Yoke
- Lens: Diffused glass
- Entry Size: 25 mm
Specifications
- Part Number: PFMA-13-76-M25-DG-UNV1-M2
- Manufacturer : Eaton Crouse-Hinds
- Brand : Eaton Crouse-Hinds
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 100-277 Vac
- Amperage : 0.91 - 0.32A
- Nema Rating : 4X
- Watts : 90W
- Enclosure : Die cast aluminum
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP67 IP66
- Lumens : 13000
- Lumens per watt : 154
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277153560
- Dimensions : 16.12 in x 14.94 in x 9.94 in (Length/Depth x Height x Width)
- Weight : 25.26 lb
