Product Info
- Manufacturer:Eaton Crouse-Hinds
Description
PFMA-13-76-GV-UNV1-M2

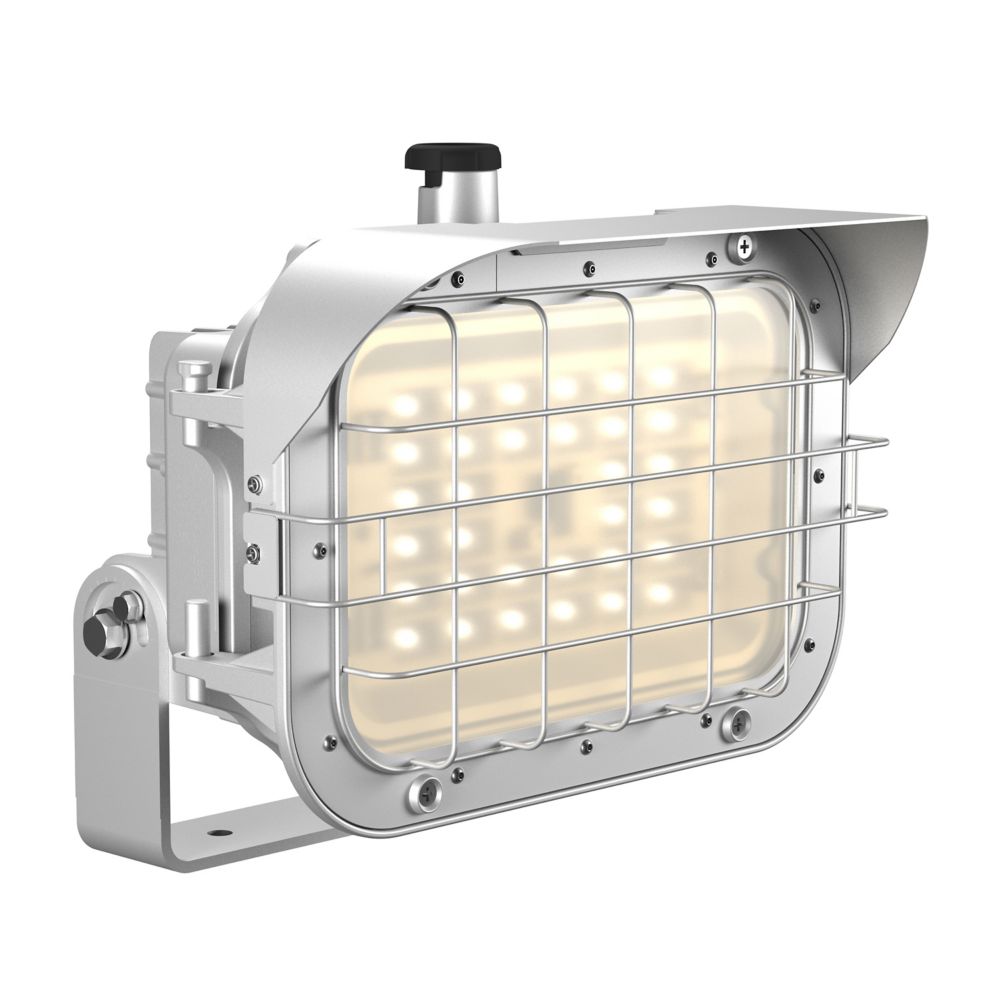

PFMA-13-76-GV-UNV1-M2 is an Eaton Crouse-Hinds Champ Pro series LED floodlight designed for ordinary/non-hazardous locations with 13000 lumens output.This dimmable LED floodlight features 7x6 optical distribution, yoke mounting, NEMA 4X rating, IP66/IP67 ingress protection, die cast aluminum housing, and 3/4" entry with heat and impact resistant glass lens.Key Specifications
- Part Number: PFMA-13-76-GV-UNV1-M2
- Manufacturer: Eaton Crouse-Hinds
- Voltage rating: 100-277 Vac
- Frequency rating: 50/60 Hz
- Amperage Rating: 0.91 - 0.32A
- Wattage: 90W
- Lumens: 13000
- Lumens per watt: 154
- Color temperature: Cool white
- NEMA Rating: 4X
- Ingress protection (IP) ratings: IP66 IP67
- Mounting Method: Yoke
- Optical distribution: 7x6
- Entry size: 3/4"
- Lens material: Heat and impact resistant glass
Specifications
- Part Number: PFMA-13-76-GV-UNV1-M2
- Manufacturer : Eaton Crouse-Hinds
- Brand : Eaton Crouse-Hinds
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 100-277 Vac
- Amperage : 0.91 - 0.32A
- Nema Rating : 4X
- Watts : 90W
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66 IP67
- Lumens : 13000
- Lumens per watt : 154
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
- Color : Gray epoxy powder coat
Product Data
- UPC : 662277183062
- Dimensions : 16.938 in x 20.313 in x 14.75 in (Length/Depth x Height x Width)
- Weight : 24.95 lb
