Product Info
- Manufacturer:Eaton Crouse-Hinds
Description
PFMA-13-76-G-UNV3-M2

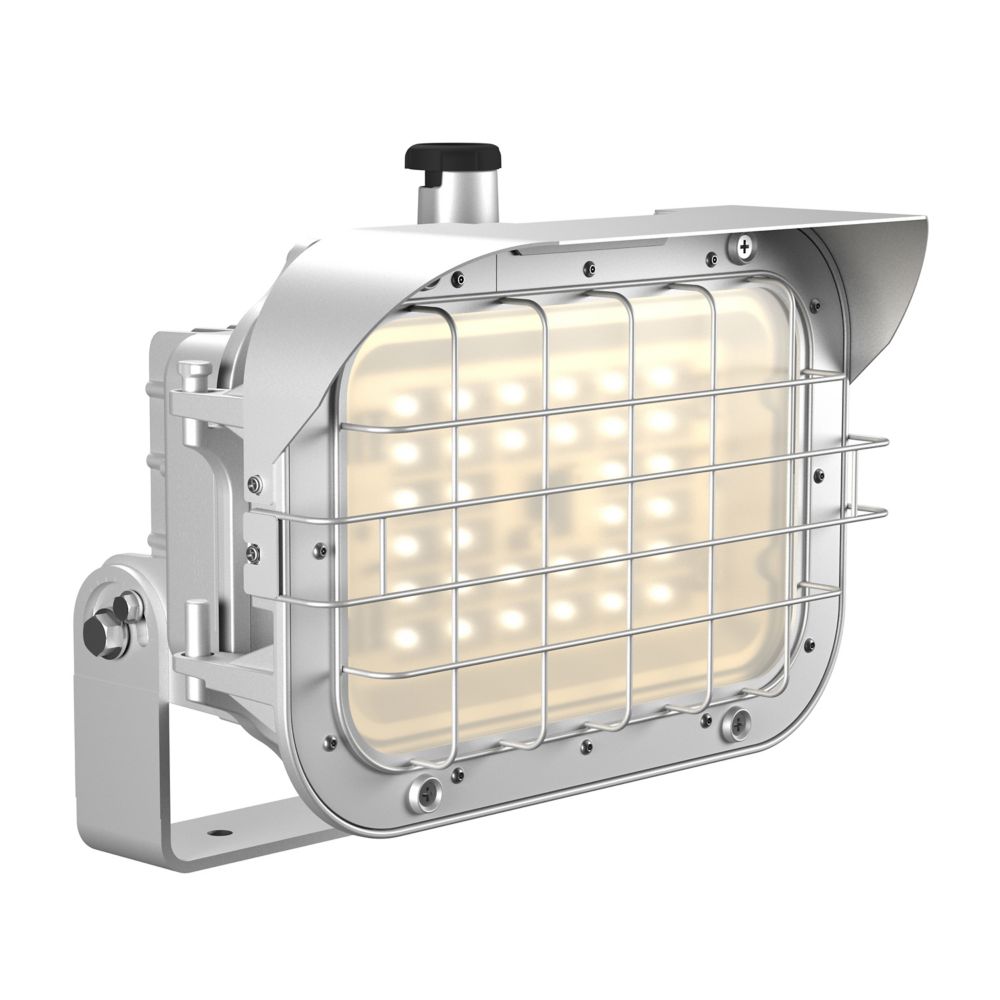

PFMA-13-76-G-UNV3-M2 is an Eaton Crouse-Hinds Champ Pro series LED floodlight designed for ordinary/non-hazardous locations.This dimmable LED floodlight features a die cast aluminum housing with gray epoxy powder coat, yoke mounting, 7x6 optics, glass lens, and 3/4" entry, delivering 13000 lumens at 154 lm/W from a 90W LED source.Key Specifications
- Part Number: PFMA-13-76-G-UNV3-M2
- Manufacturer: Eaton Crouse-Hinds
- Voltage rating: 347-480 Vac
- Amperage Rating: 0.26 - 0.19A
- Lumens: 13000
- Wattage: 90W
- Lumens per watt: 154
- Frequency rating: 50/60 Hz
- NEMA Rating: 4X
- Color temperature: Cool white
- Dimming: Dimmable driver
- Mounting Method: Yoke
Specifications
- Part Number: PFMA-13-76-G-UNV3-M2
- Manufacturer : Eaton Crouse-Hinds
- Brand : Eaton Crouse-Hinds
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 347-480 Vac
- Amperage : 0.26 - 0.19A
- Nema Rating : 4X
- Watts : 90W
- Enclosure : Die cast aluminum
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66 IP67
- Lumens : 13000
- Lumens per watt : 154
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277183079
- Dimensions : 16.938 in x 20.313 in x 14.75 in (Length/Depth x Height x Width)
- Weight : 24.95 lb
