Product Info
- Manufacturer:Eaton
Description
PFMA-13-76-G-UNV1-M2

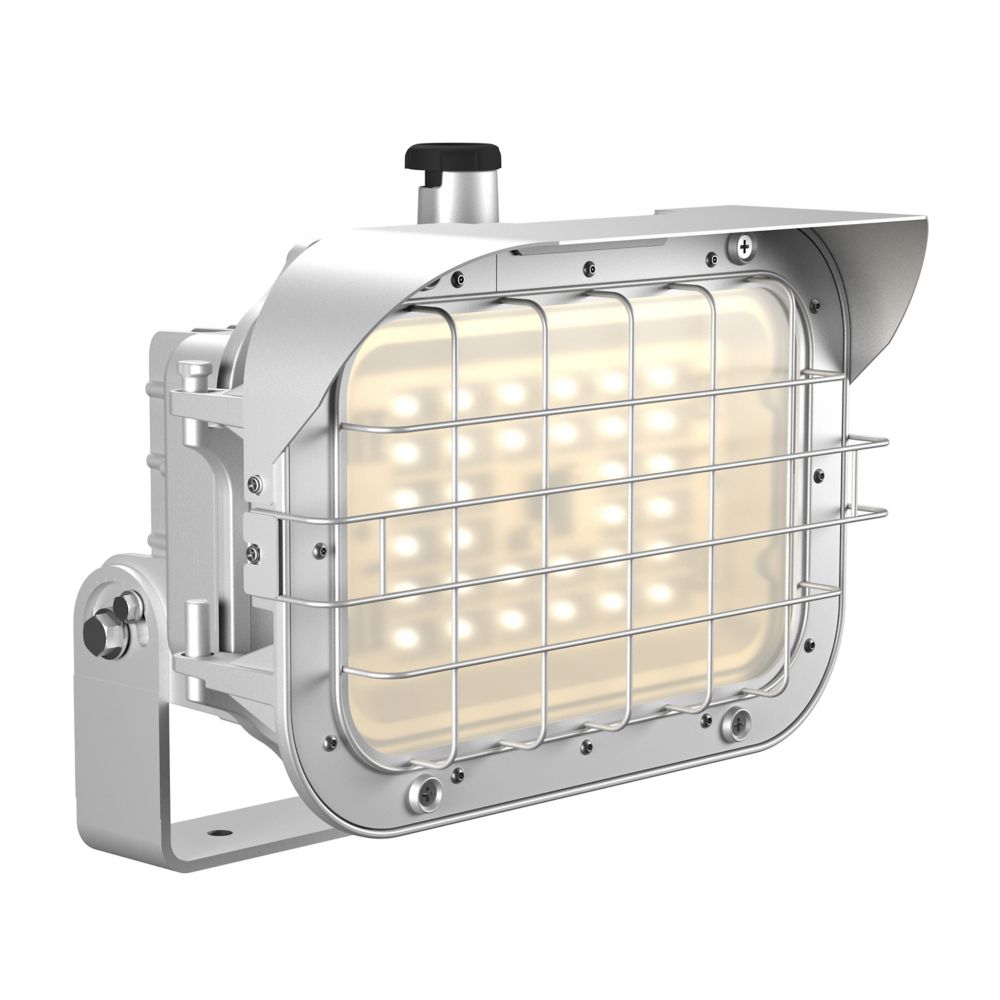

PFMA-13-76-G-UNV1-M2 is an Eaton Crouse-Hinds series Champ Pro LED floodlight designed for ordinary/non-hazardous locations.This dimmable LED floodlight features 13000 lumens output at 154 lm/W efficacy, 7x6 optical distribution, yoke mounting, and NEMA 4X/IP66/IP67 ratings for robust performance in wet locations.Key Specifications
- Part Number: PFMA-13-76-G-UNV1-M2
- Manufacturer: Eaton
- Voltage: 100-277 Vac
- Amperage: 0.91 - 0.32A
- Lumens: 13000
- Lumens per Watt: 154 lm/W
- Wattage: 90W
- Frequency: 50/60 Hz
- Color Temperature: Cool white
- Entry Size: 3/4"
- Lens Material: Heat and impact resistant glass
- Mounting: Yoke
- NEMA Rating: 4X
- Dimming: Dimmable driver
- Power Factor: >0.90
Specifications
- Part Number: PFMA-13-76-G-UNV1-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 100-277 Vac
- Amperage : 0.91 - 0.32A
- Nema Rating : 4X
- Watts : 90W
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66 IP67
- Lumens : 13000
- Lumens per watt : 154
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277183048
- Dimensions : 16.938 in x 20.313 in x 14.75 in (Length/Depth x Height x Width)
- Weight : 24.95 lb
