Product Info
- Manufacturer:Eaton
Description
PFMA-11-76-M25-UNV1-M2

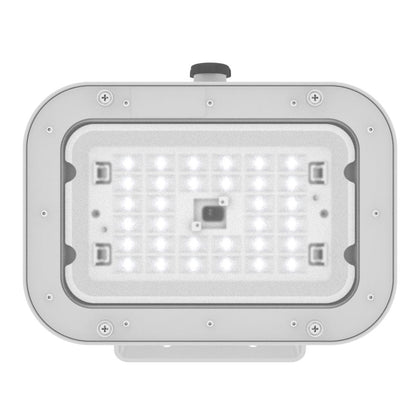

PFMA-11-76-M25-UNV1-M2 is an Eaton Crouse-Hinds series Champ Pro LED floodlight designed for ordinary/non-hazardous locations.This dimmable LED floodlight features 77W power consumption, 11000 lumens output at 158 lm/W efficiency, 100-277 Vac universal voltage, and 50/60 Hz frequency, with 7x6 optical distribution, 25 mm entry, heat and impact resistant glass lens, NEMA 4X/IP66/IP67 ratings, yoke mounting, and die cast aluminum construction.Key Specifications
- Part Number: PFMA-11-76-M25-UNV1-M2
- Manufacturer: Eaton
- Lumens: 11000
- Wattage: 77W
- Voltage: 100-277 Vac
- Frequency: 50/60 Hz
- Amperage: 0.79 - 0.28A
- Lumens per Watt: 158 lm/W
- Optical Distribution: 7x6
- Entry Size: 25 mm
- Lens Material: Heat and impact resistant glass
- NEMA Rating: 4X
- IP Rating: IP66 IP67
- Mounting: Yoke
- Material: Die cast aluminum
Specifications
- Part Number: PFMA-11-76-M25-UNV1-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Floodlights
- Voltage : 100-277 Vac
- Amperage : 0.79 - 0.28A
- Nema Rating : 4X
- Watts : 77W
- Enclosure : IP66 IP67
- Mounting : Yoke
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP67 IP66
- Lumens : 11000
- Lumens per watt : 158 lm/W
- Color temperature : Cool white
- Mounting Method : Yoke
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662277153454
- Dimensions : 16.12 in x 14.94 in x 9.94 in (Length/Depth x Height x Width)
- Weight : 25.26 lb
