Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG63P2500E5MN

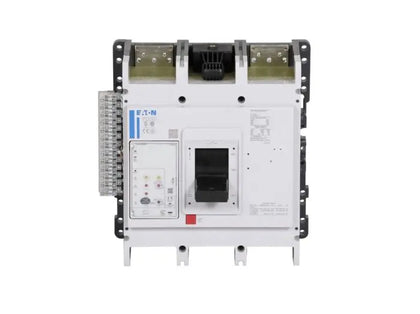

PDG63P2500E5MN is an Eaton Power Defense PDG6 molded case circuit breaker rated at 2500 A and configured as a 3-pole device. It features a PXR20 ARMS LSIG electronic trip unit with Modbus RTU and relays and is globally rated with 100 kA interruption at 480 V AC, making it ideal for large-scale commercial and industrial power distribution systems.
- Manufacturer: Eaton
- Series: Power Defense PDG6
- Amperage Rating: 2500 A
- Poles: 3
- Interrupt Rating: 100 kA @ 480 V AC
- Voltage Rating: Up to 600 V AC
- Trip Unit: PXR20 ARMS LSIG with Modbus RTU & relays
- Terminations: Terminal pads only (no lugs included)
- Application: High-capacity molded case circuit breaker for commercial and industrial power systems
Specifications
- Part Number: PDG63P2500E5MN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 2500
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 786679393314
- Dimensions : 247.7 mm x 406.4 mm x 393.7 mm (Length/Depth x Height x Width)
- Weight : 136.5429 lb
- Standards : CCC Marked UL 489 IEC 60947-2 CSA
