Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG63P2500E4MN

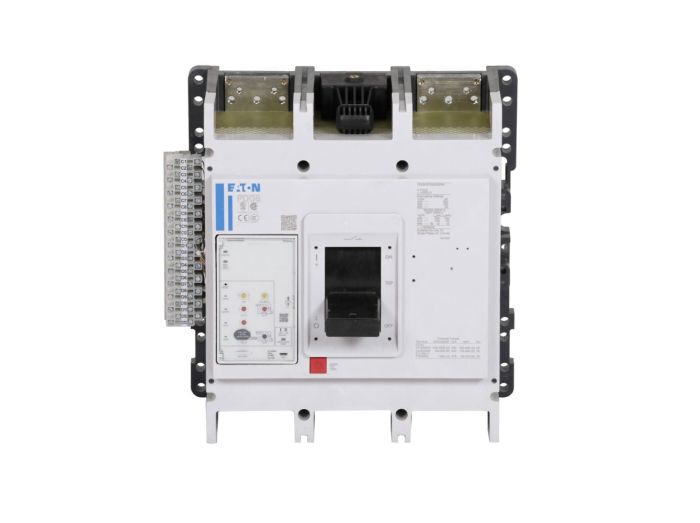

PDG63P2500E4MN is an Eaton Power Defense PDG6 molded case circuit breaker with a 2500 A rating and 3 poles. This globally rated breaker uses a PXR20 ARMS LSI electronic trip unit with Modbus RTU and relays, providing advanced protection, metering, and communication for commercial and industrial power distribution systems.
- Manufacturer: Eaton
- Family: Power Defense molded case circuit breaker
- Frame Size: PDG6, Frame 6
- Poles: 3
- Amperage Rating: 2500 A
- Voltage Class: up to 600 Vac, 100 kA interrupting at 480 Vac
- Trip Unit: PXR20 ARMS LSI electronic trip with Modbus RTU and relays
- Terminations: Terminal pads, lugs not included
- Application: Large commercial and industrial power distribution and protection
Additional Information
Lugs not included
Specifications
- Part Number: PDG63P2500E4MN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 2500
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 78667937771
- GTIN : 00786679377710
- Dimensions : 247.7 mm x 406.4 mm x 393.7 mm (Length/Depth x Height x Width)
- Weight : 136.5429 lb
- Standards : CCC Marked UL 489 IEC 60947-2 CSA
