PDG63P1600E5MN – Eaton Power Defense PDG6 1600 A 3-Pole Molded Case Circuit Breaker

PDG63P1600E5MN

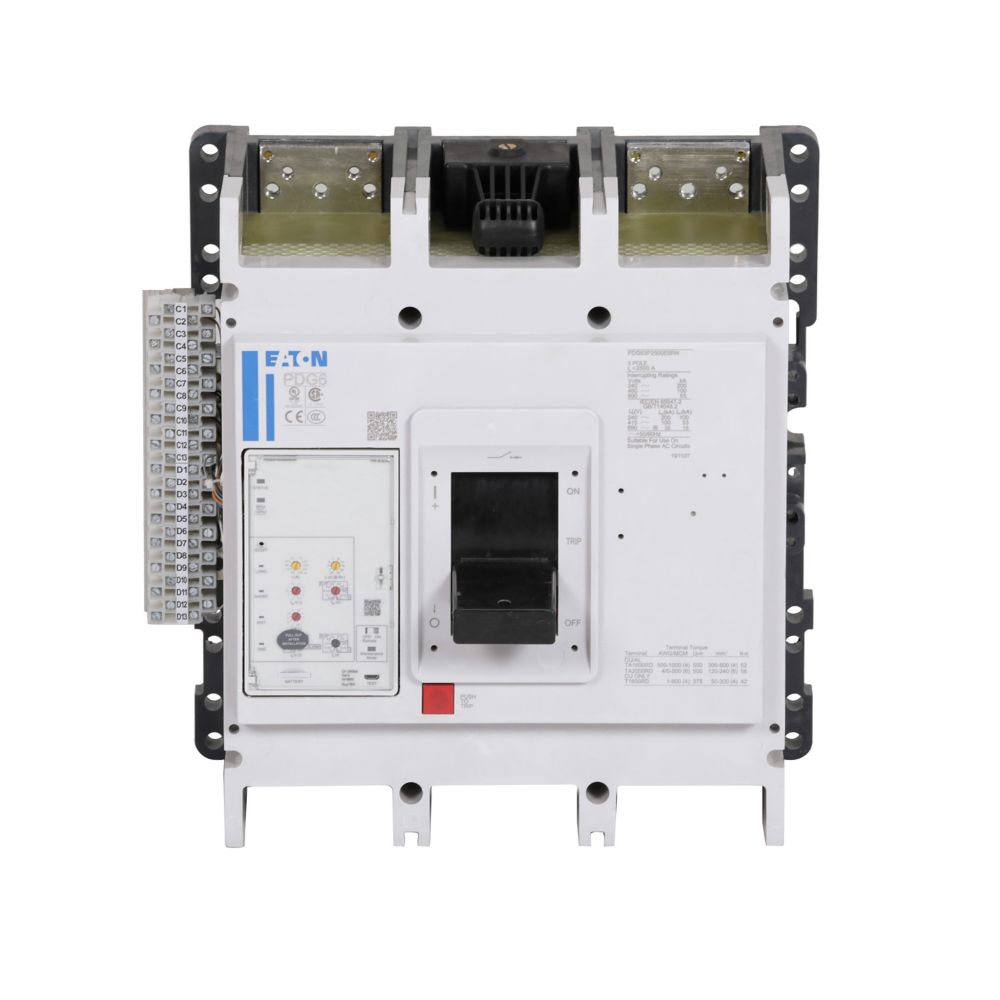

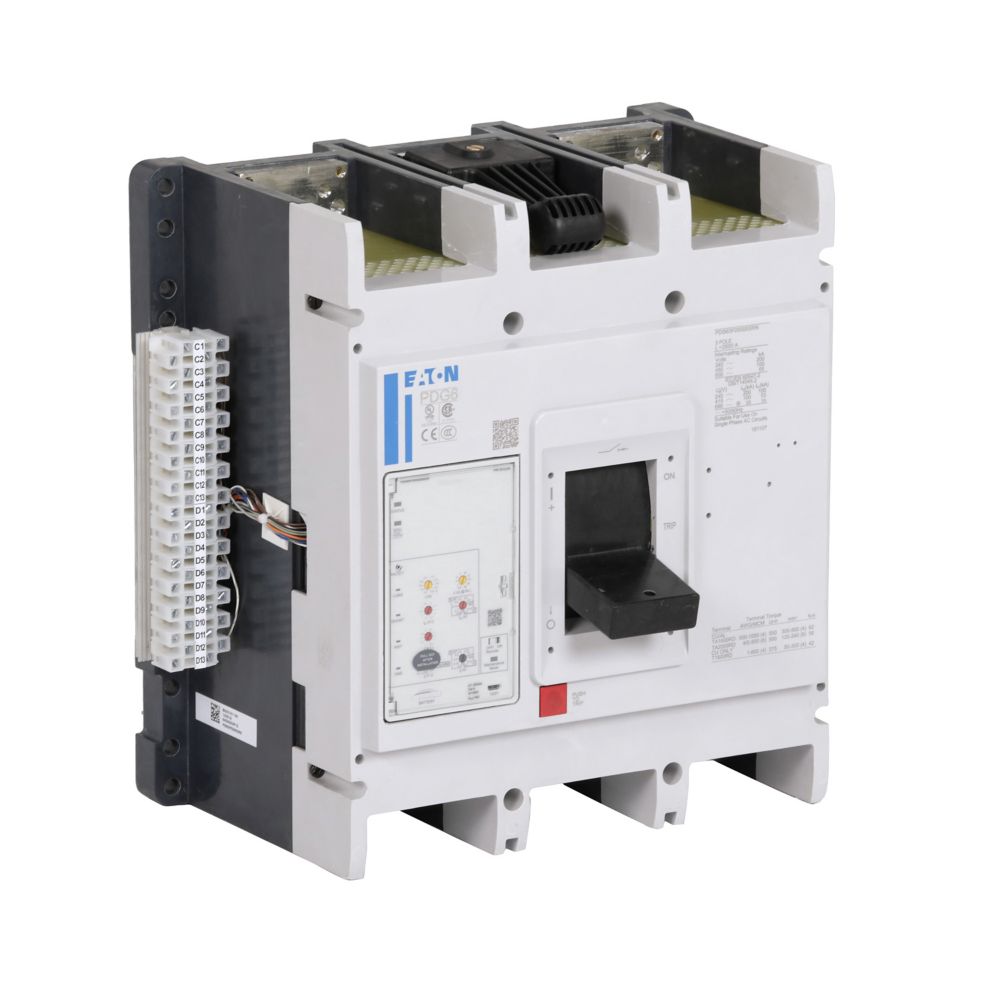

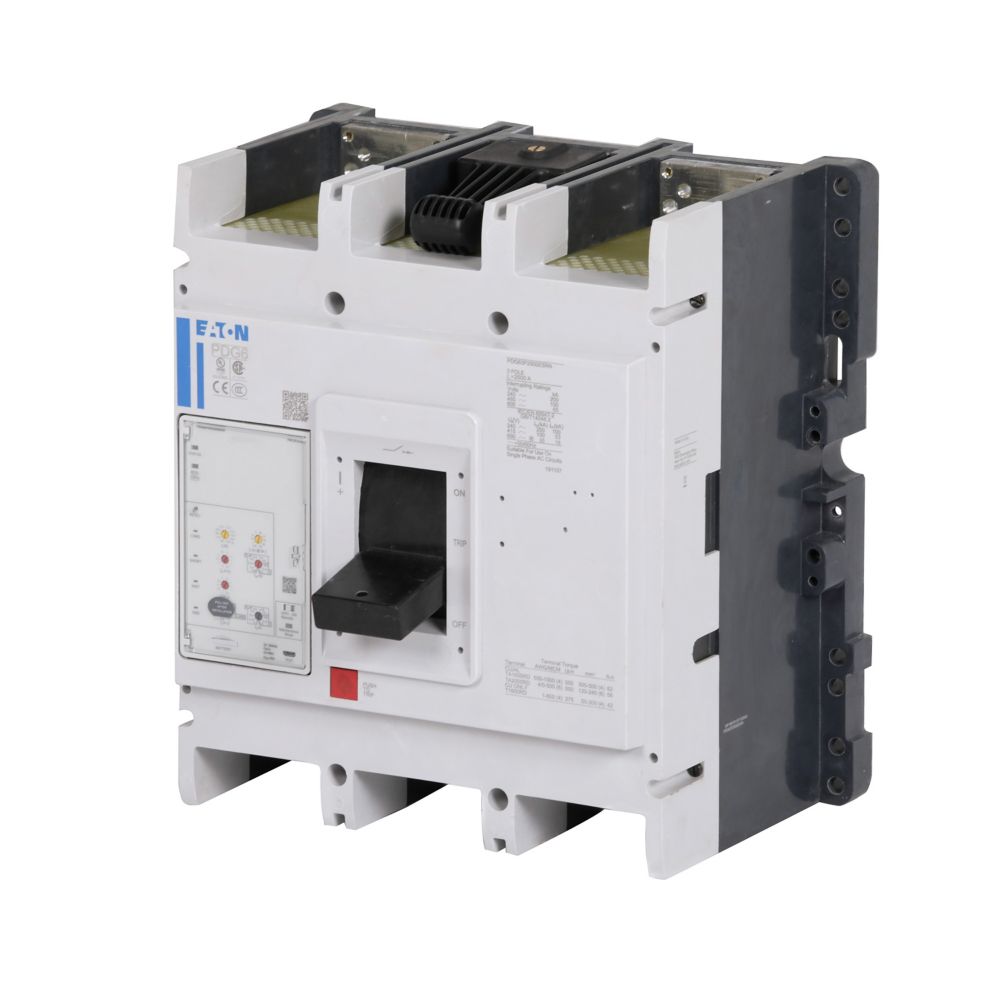

PDG63P1600E5MN is an Eaton Power Defense PDG6 molded case circuit breaker rated at 1600 A and configured as a 3-pole device. It features a PXR20 ARMS LSIG electronic trip unit with Modbus RTU and relays, offering advanced protection and diagnostics for industrial and commercial power distribution systems. [oai_citation:0‡RSP Supply](https://rspsupply.com/images/downloads/Eaton/P/Eaton%20PDG63P1600E5MN/Eaton%20Data%20Sheet.pdf?utm_source=chatgpt.com)

• Manufacturer: Eaton
• Series: Power Defense PDG6
• Amperage Rating: 1600 A
• Poles: 3
• Interrupt Rating: 100 kA at 480 V AC
• Voltage Rating: Up to 600 V AC
• Trip Unit: PXR20 ARMS LSIG with Modbus RTU and relays

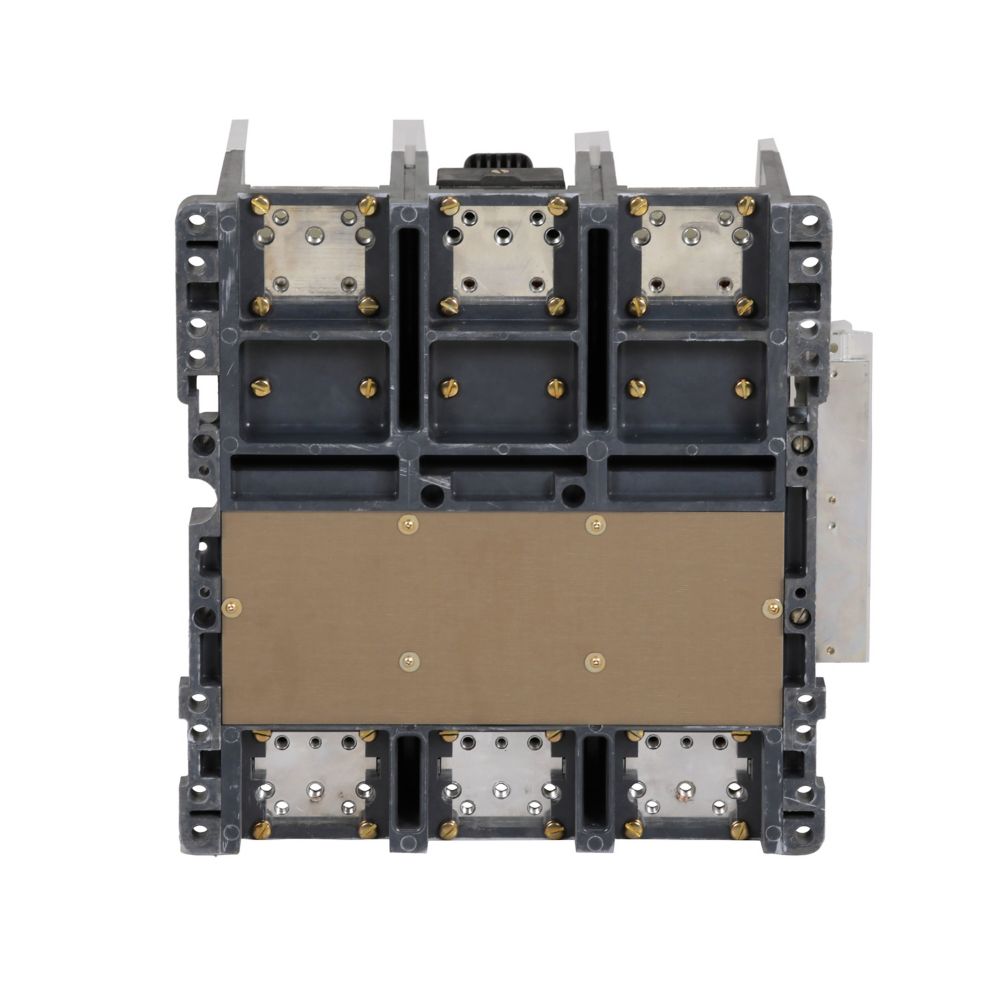

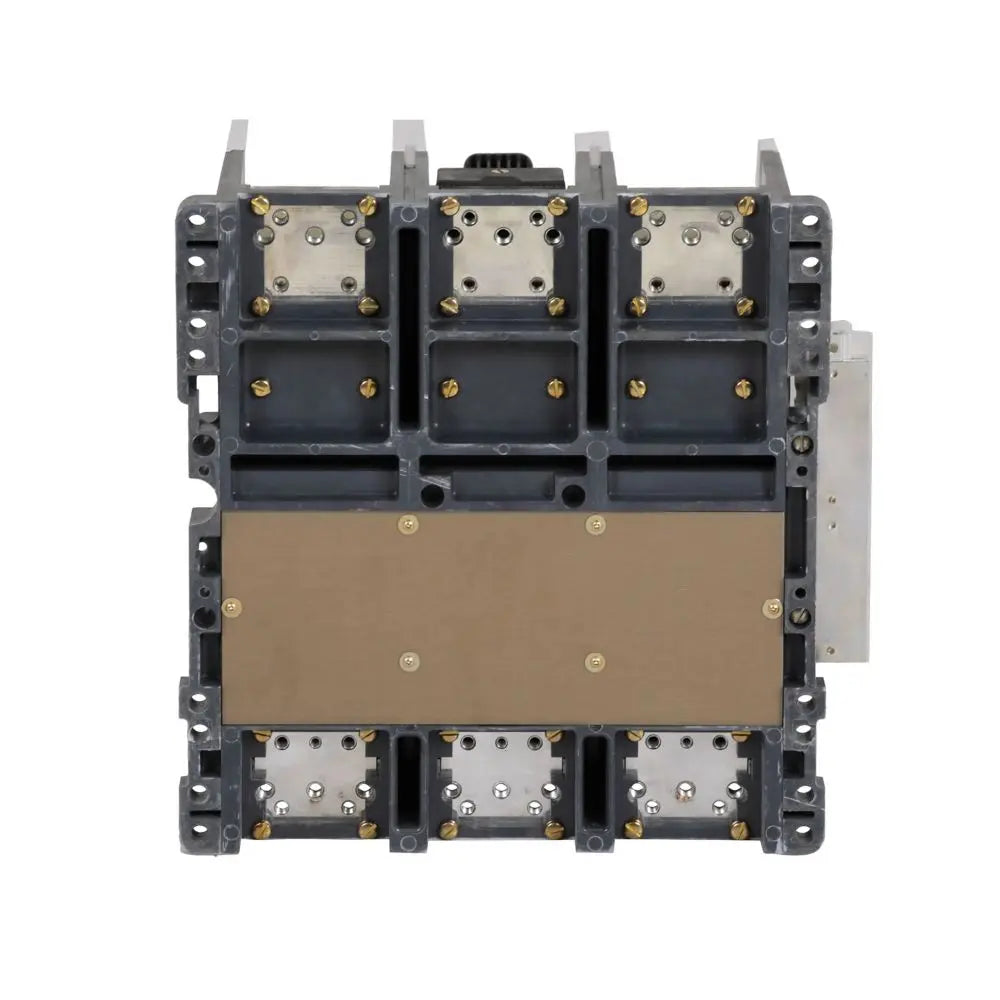

• Terminations: Terminal pads only (no lugs included) [oai_citation:1‡Quality Switchgear](https://www.qualityswitchgear.com/products/molded-case/eaton-cutler-hammer/PDG63P1600E5MN?utm_source=chatgpt.com)
• Application: Large-scale commercial and industrial power distribution systems

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG63P1600E5MN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 78667944754
• GTIN : 00786679447543
• Dimensions : 247.7 mm x 406.4 mm x 393.7 mm (Length/Depth x Height x Width)
• Weight : 171.9553 lb
• Standards : CCC Marked UL 489 IEC 60947-2 CSA
