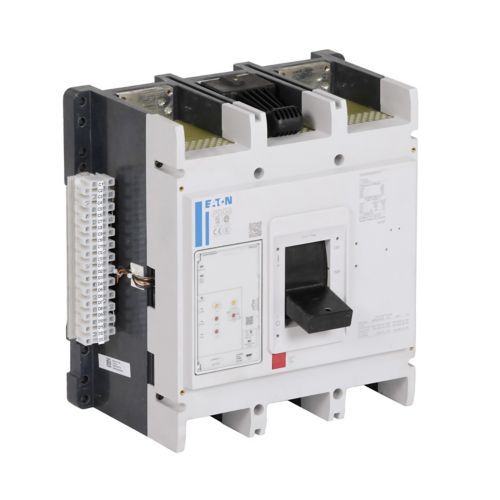

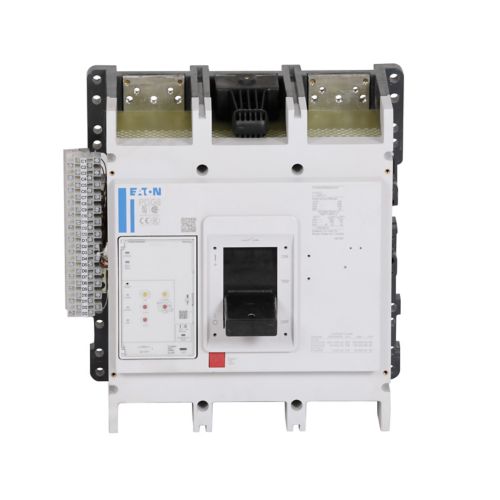

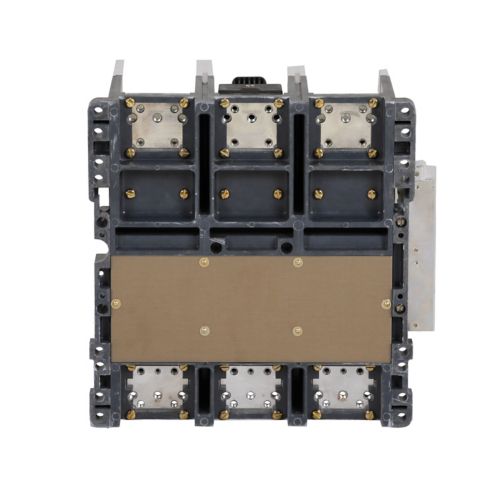

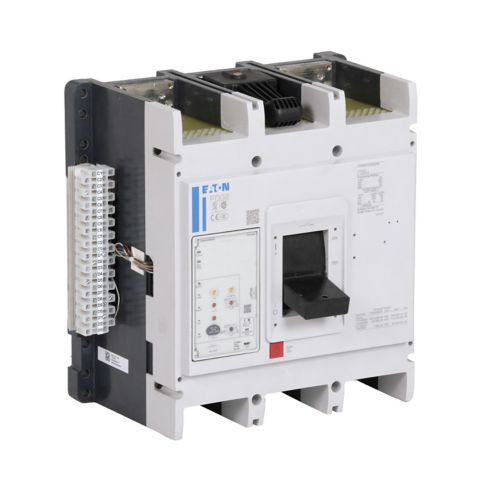

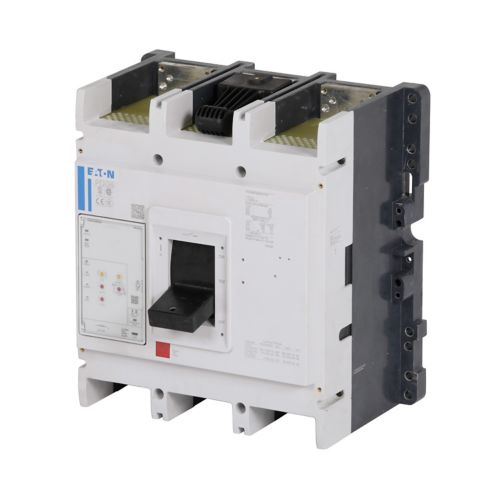

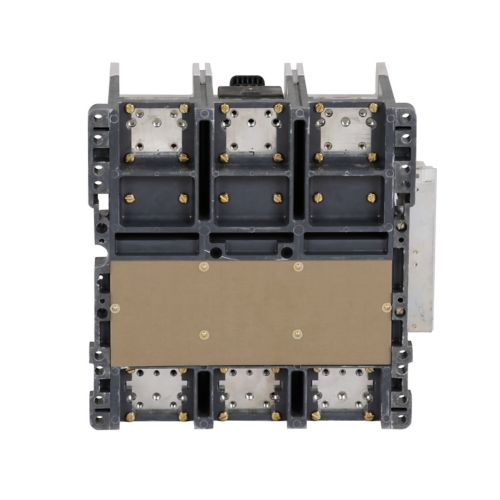

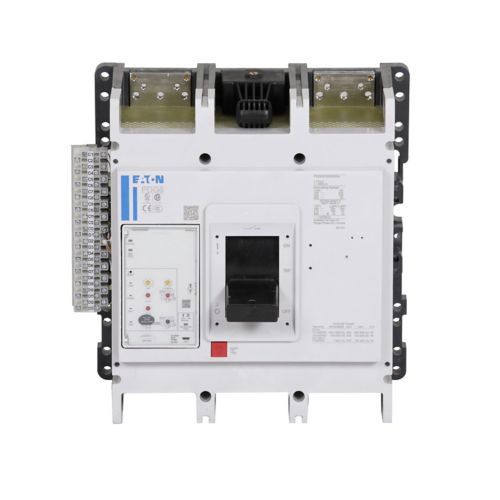

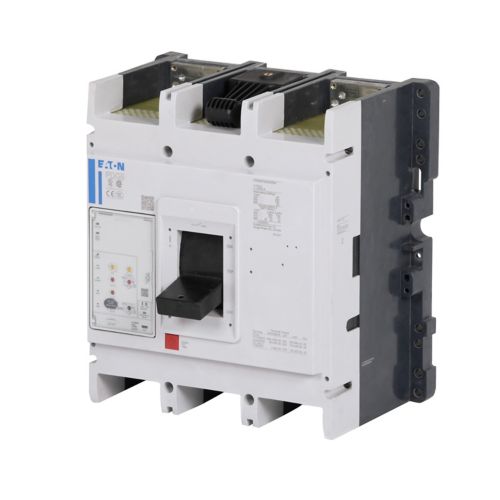

PDG63M2500E4MN - Eaton Cutler Hammer 2500A 600VAC 3-Pole Molded Case Circuit Breaker 6 Frame PXR20 LSI

PDG63M2500E4MN

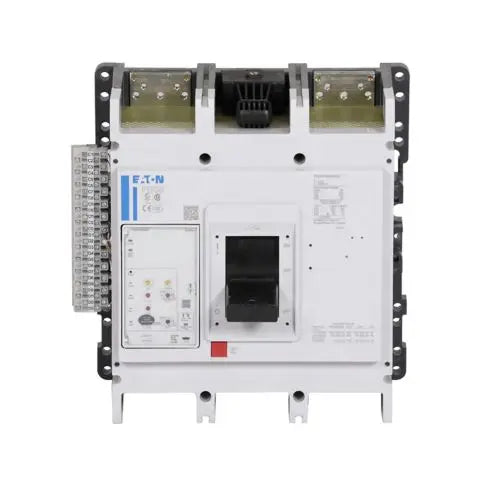

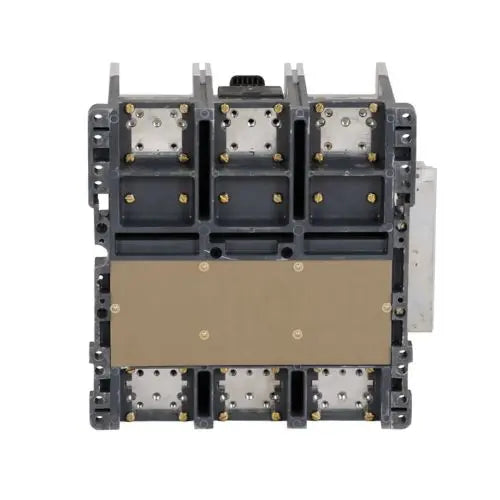

PDG63M2500E4MN is a 3-pole molded case circuit breaker from Eaton Cutler Hammer designed for high power protection applications.This breaker features a 2500 ampere rating and a maximum voltage of 600 VAC with a 6 frame size. It includes a Power Xpert Release (PXR) 20 LSI trip unit with ARMS (Arcflash Reduction Maintenance System) for enhanced safety and predictive maintenance. The breaker has an interrupt rating of 65 kA at 480 volts and 45 kA at 600 volts. It supports Modbus RTU communication for integration and monitoring. Certified to UL 489 standards, it is a globally accepted platform meeting UL, CSA, IEC, and CCC certifications.

Key Specifications
• Amperage: 2500 Amp
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: 6 Frame
• Interrupt Rating: 65 kA at 480 VAC, 45 kA at 600 VAC
• Trip Unit: PXR 20 LSI with ARMS
• Communication: Modbus RTU
• Certifications: UL 489, CSA, IEC, CCC
• Mounting Type: Bolt-On
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PDG63M2500E4MN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Section : Molded case circuit breaker
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 2500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State



Product Data

• UPC : 786679374405
• Dimensions : 247.7 mm x 406.4 mm x 393.7 mm (Length/Depth x Height x Width)
• Weight : 136.5429
