PDG63M1600E5RN - Eaton Power Defense 1600A 600VAC 3 Pole Molded Case Circuit Breaker with PXR20 ARMS LSIG Trip

Save $14,382.60
SKU: PDG63M1600E5RN-New
Condition: New
Price:
$0.00 $14,382.60
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

PDG63M1600E5RN - Eaton||Cutler Hammer Bolt-On 600V 1600A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
PDG63M1600E5RN - Eaton||Cutler Hammer Bolt-On 600V 1600A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
PDG63M1600E5RN - Eaton||Cutler Hammer Bolt-On 600V 1600A 3 pole circuit breaker 65kA@480V - Essential Electric Supply

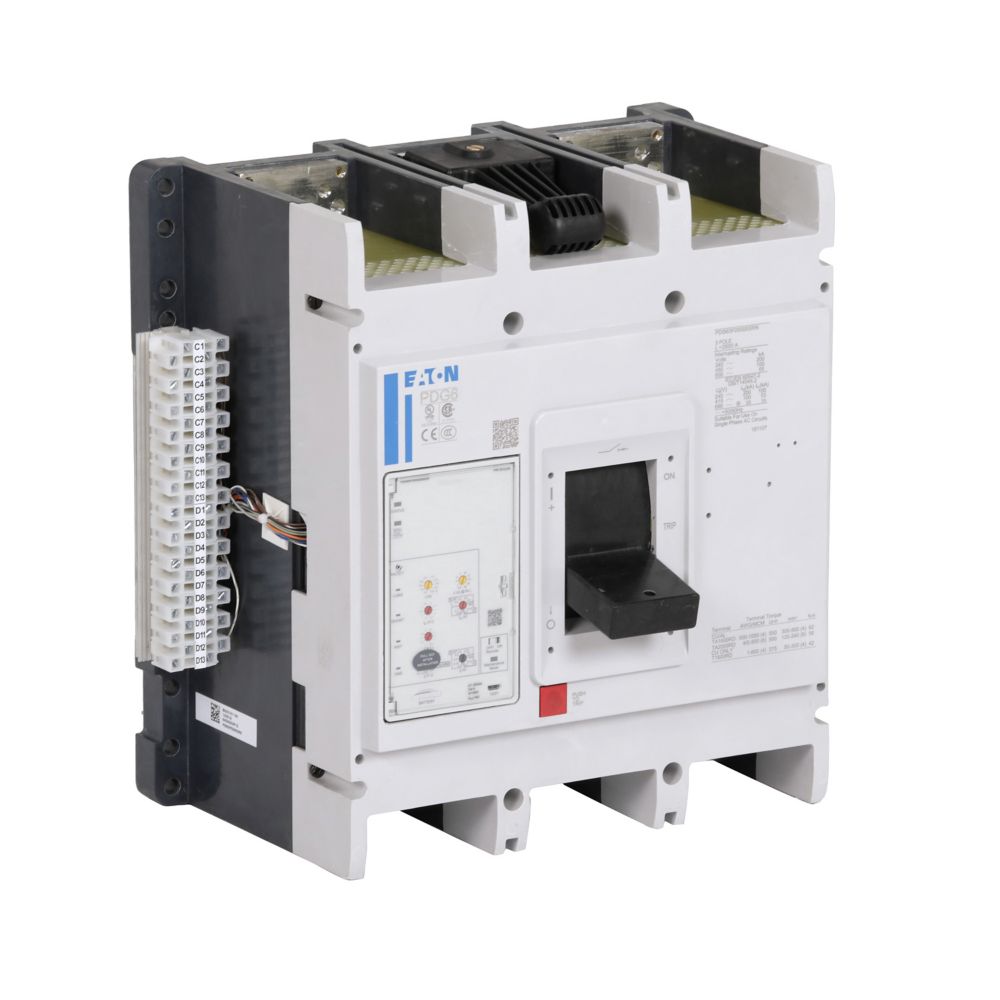

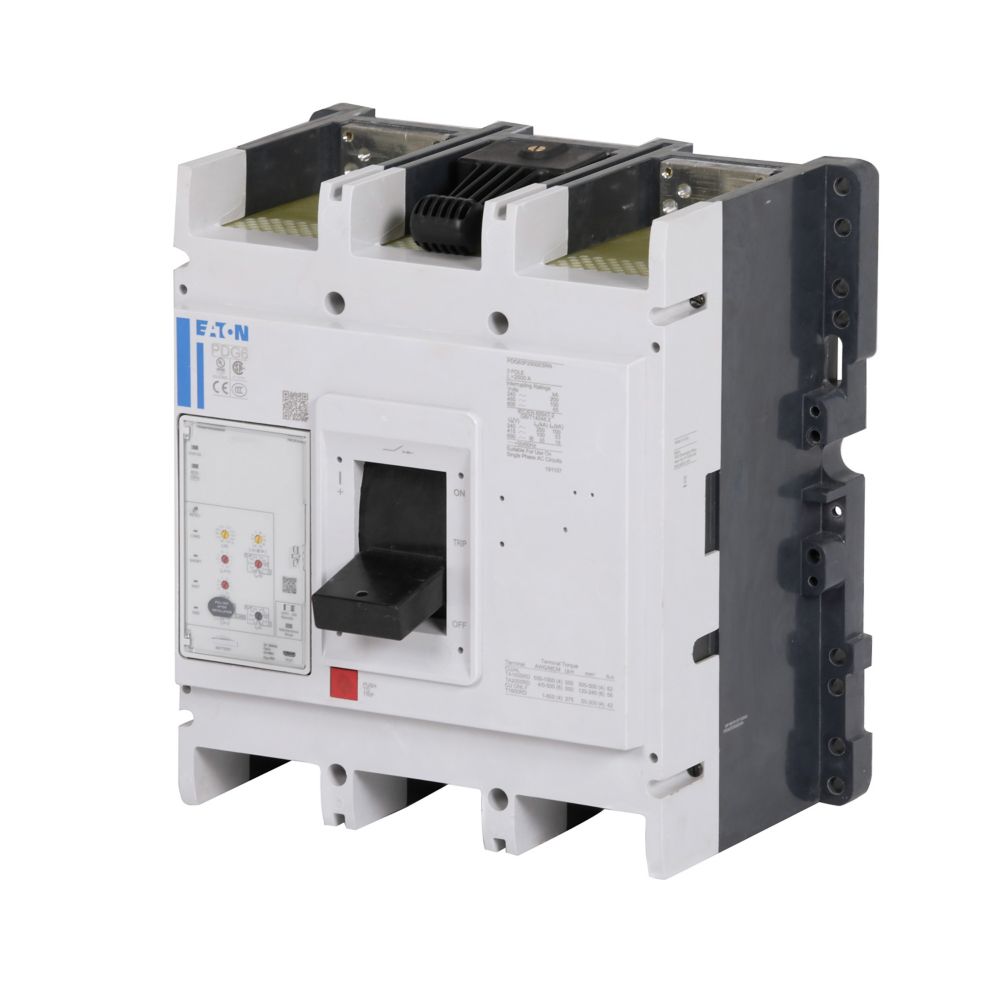

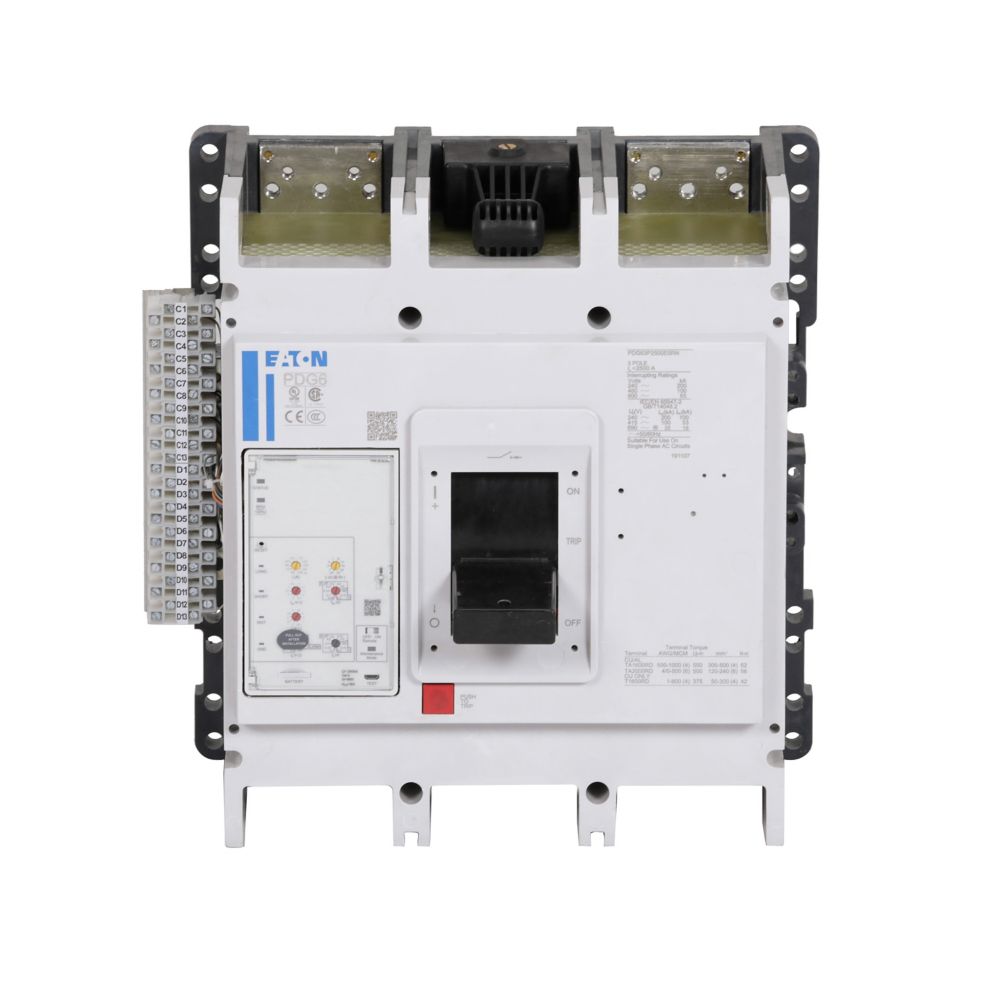

Roll over image to zoom in Click on image to zoom Images are for reference only
PDG63M1600E5RN - Eaton||Cutler Hammer Bolt-On 600V 1600A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
PDG63M1600E5RN - Eaton||Cutler Hammer Bolt-On 600V 1600A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
PDG63M1600E5RN - Eaton||Cutler Hammer Bolt-On 600V 1600A 3 pole circuit breaker 65kA@480V - Essential Electric Supply

Description

PDG63M1600E5RN


PDG63M1600E5RN is a high-performance Eaton Power Defense molded case circuit breaker designed for demanding electrical distribution applications. This breaker features a globally rated Frame 6 design, three poles, and a robust 1600A amperage rating, making it suitable for industrial and commercial power systems. The PXR20 ARMS LSIG trip unit provides advanced protection and arc flash reduction, while the no terminals configuration offers flexibility for custom installations. The breaker is rated for 600 VAC and delivers a 65 kA interrupt capacity at 480 VAC, ensuring reliable operation under fault conditions. Engineered for durability and safety, the PDG63M1600E5RN is built to meet global standards and is ideal for environments requiring high interrupt capacity and advanced trip functionality. The IP2X enclosure type provides protection against accidental contact, and the breaker is designed for easy integration into a variety of panel configurations.
  • Part Number: PDG63M1600E5RN
  • Manufacturer: Eaton
  • Series/Frame: Power Defense, Frame 6
  • Amperage Rating: 1600 A
  • Voltage Rating: 600 VAC
  • Poles: 3
  • Interrupt Rating: 65 kAIC at 480 VAC
  • Mounting Type: No Terminals
  • Enclosure Type: IP2X
  • Trip Unit: PXR20 ARMS LSIG with Relays
  • Certifications: Globally Rated
  • Application: Industrial, Commercial Power Distribution
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: PDG63M1600E5RN
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Power Defense Series
  • Type : PDG
  • Voltage : 600
  • Amperage : 1600
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Bolt-On
  • Protection : Solid State

Product Data

  • UPC : 7.86679E+11
  • Dimensions : 247.7 mm x 406.4 mm x 393.7 mm (Length/Depth x Height x Width)
  • Weight : 171.9553
