Product Info
- Manufacturer:Eaton
- Sub-Category:Under Voltage Release
Description
PDG5XUV120ACU

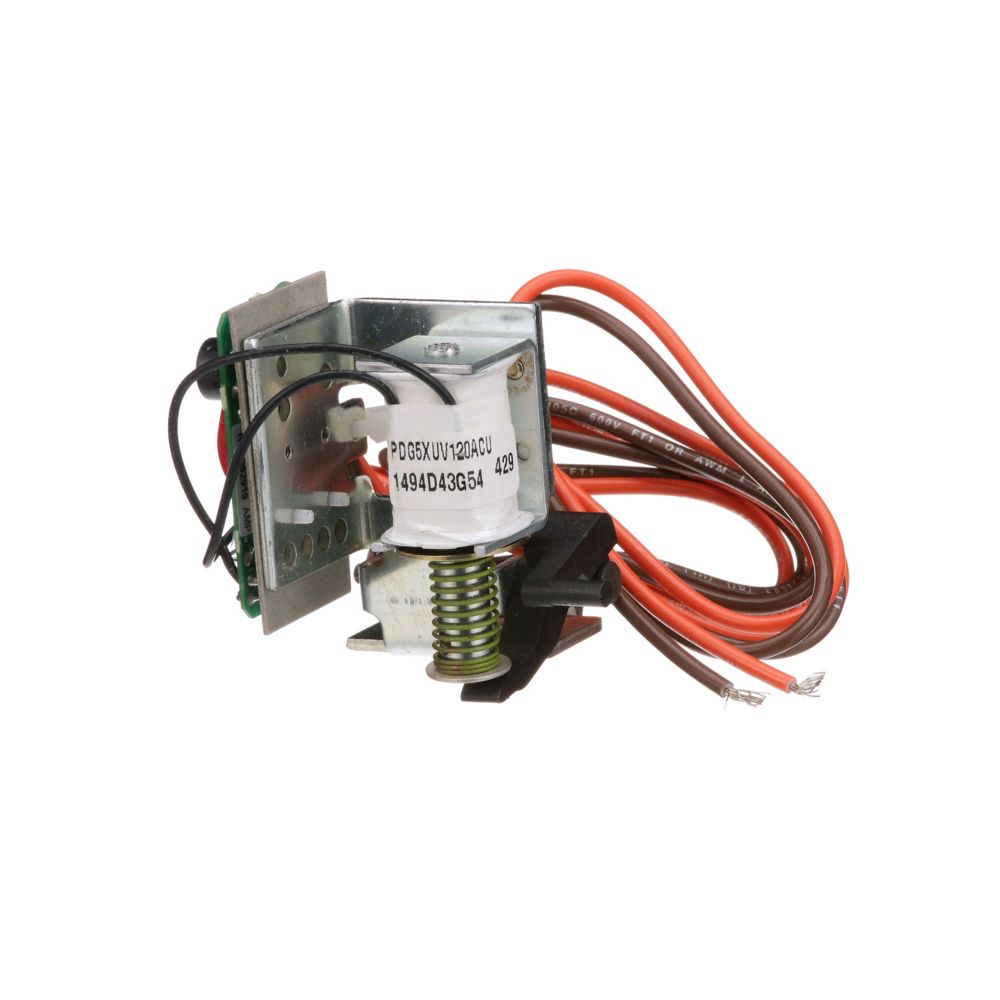

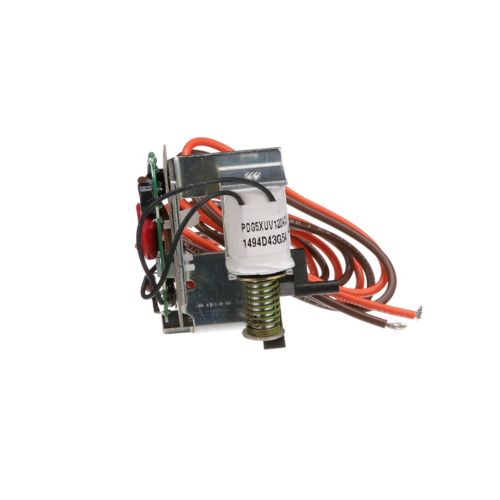

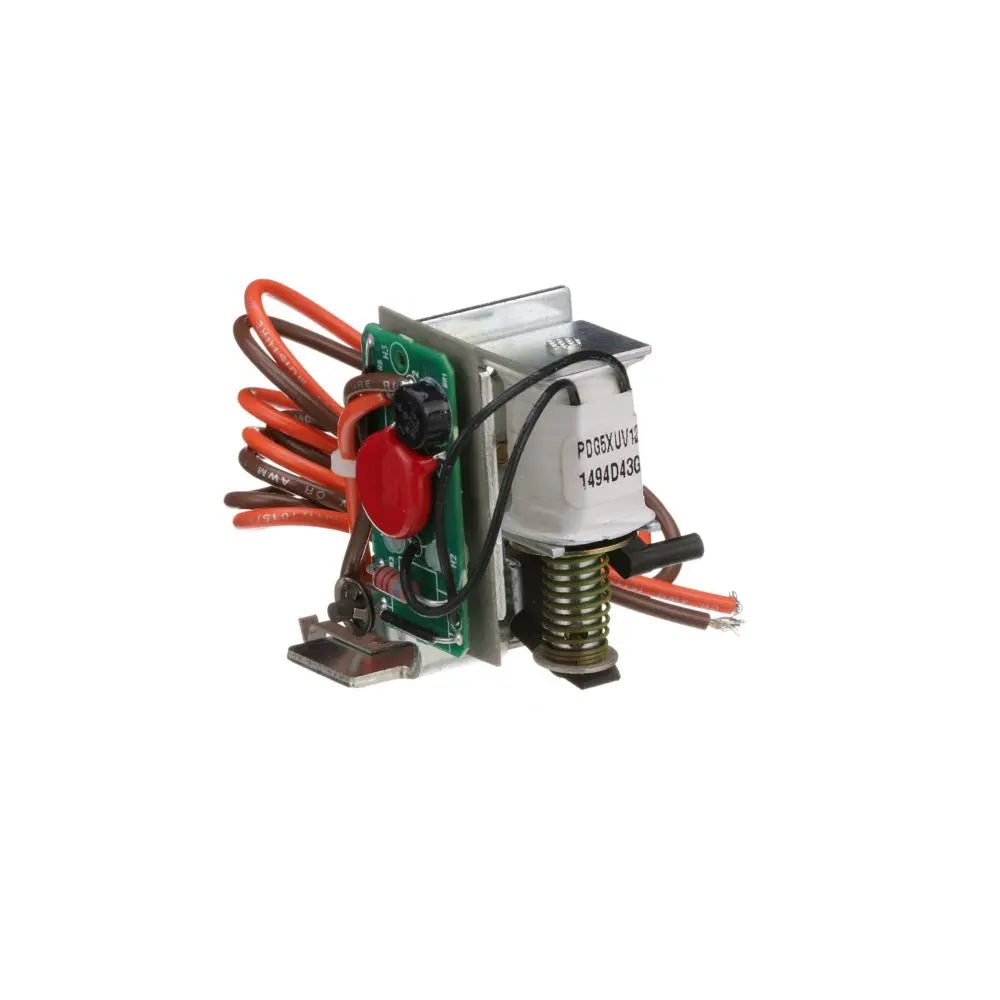

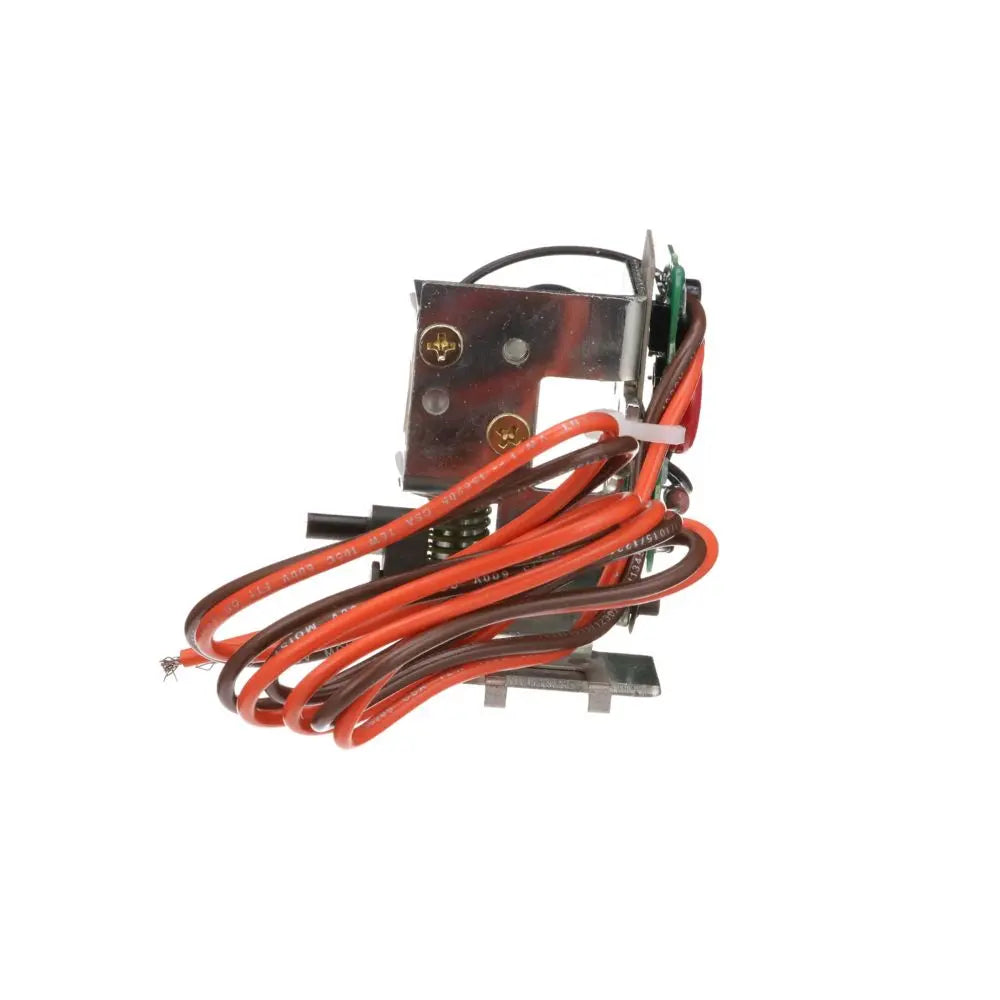

PDG5XUV120ACU is a Cutler Hammer Power Defense undervoltage release accessory designed for PDG frame circuit breakers with a control voltage rating of 110-127 VAC.This undervoltage release (UVR) unit is compatible with all PDG, PDC, and PDJ frame circuit breakers, providing reliable trip functionality when the control voltage falls below the specified range. It features a 0.75 meter pigtail connection and supports a maximum voltage rating of 600 V. The product meets industry standards including UL 489, IEC 60947-2, CSA, and is RoHS compliant.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: PDG5XUV120ACU
- Type: Undervoltage Release Accessory
- Voltage Rating: 110-127 VAC control voltage
- Maximum Voltage: 600 V
- Compatible Frames: PDG, PDC, PDJ
- Connection: 0.75 m pigtail
- Standards: UL 489, IEC 60947-2, CSA, RoHS Compliant
- Series: Power Defense (PD5 Global)
Specifications
- Part Number: PDG5XUV120ACU
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Under Voltage Release
- Section : Accessory
- Family : Power Defense Series
- Type : PDG
- Control Voltage Minimum : 110
- Compatible Frames : PDG,PDC,PDJ
- Control Voltate Maximum : 127
Product Data
- UPC : 786679612231
- Dimensions : 69.85 mm x 69.85 mm x 44.45 mm (Length/Depth x Height x Width)
- Weight : 0.50575508
