Product Info
- Manufacturer:Eaton
- Sub-Category:Trip Units & Programmers
Description
PDG5XPXR31200E2N

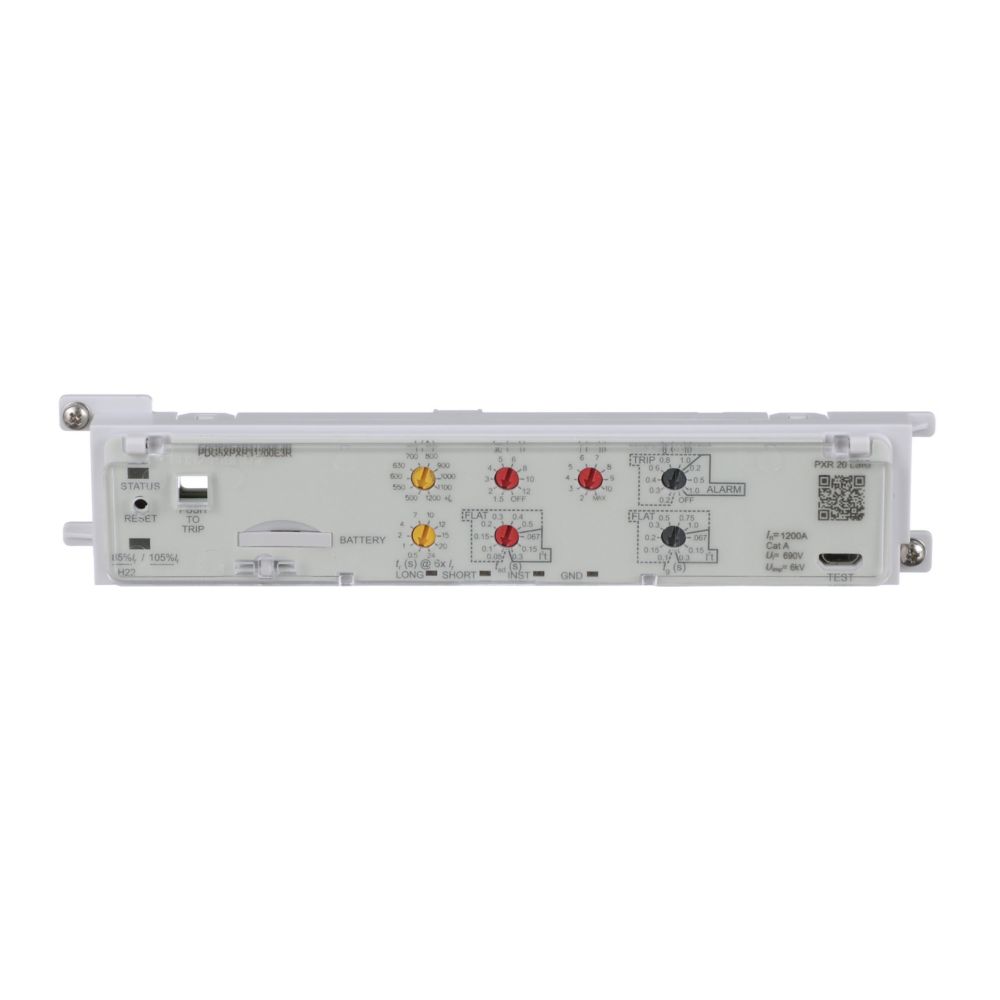

PDG5XPXR31200E2N is a Cutler Hammer Power Defense trip unit designed for industrial circuit breakers requiring precise fault protection.This trip unit features a 1200 amp rating, 600 volt maximum voltage, and three poles, compatible with PDG, PDF, and PDJ Frame 5 circuit breakers. It provides solid-state LSI (Long-Time, Short-Time, Instantaneous) protection for reliable and accurate fault detection in demanding electrical systems. Certified to IEC 60947-2, CSA, UL 489, and CCC standards, it meets rigorous safety and performance requirements.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 1200 A
- Voltage: 600 V
- Poles: 3
- Frame: 5 (Power Defense)
- Trip Unit Type: PXR20 LSI (Long-Time, Short-Time, Instantaneous)
- Mounting Type: Accessory Trip Unit for Molded Case Breakers
- Interrupt Rating: Compatible with PDG, PDF, PDJ Frame 5 breakers
- Certifications: IEC 60947-2, CSA, UL 489, CCC Marked, RoHS Compliant
Specifications
- Part Number: PDG5XPXR31200E2N
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Poles : 3
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Amperage Maximum : 1200
- Protection : Solid State
- Compatible Frames : PDG,PDF,PDJ Frame 5
Product Data
- UPC : 786679603185
- GTIN : 00786679603185
- Dimensions : 206.4 mm x 82.6 mm x 139.7 mm (Length/Depth x Height x Width)
- Weight : 2.23
