Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG53P1200E2NN

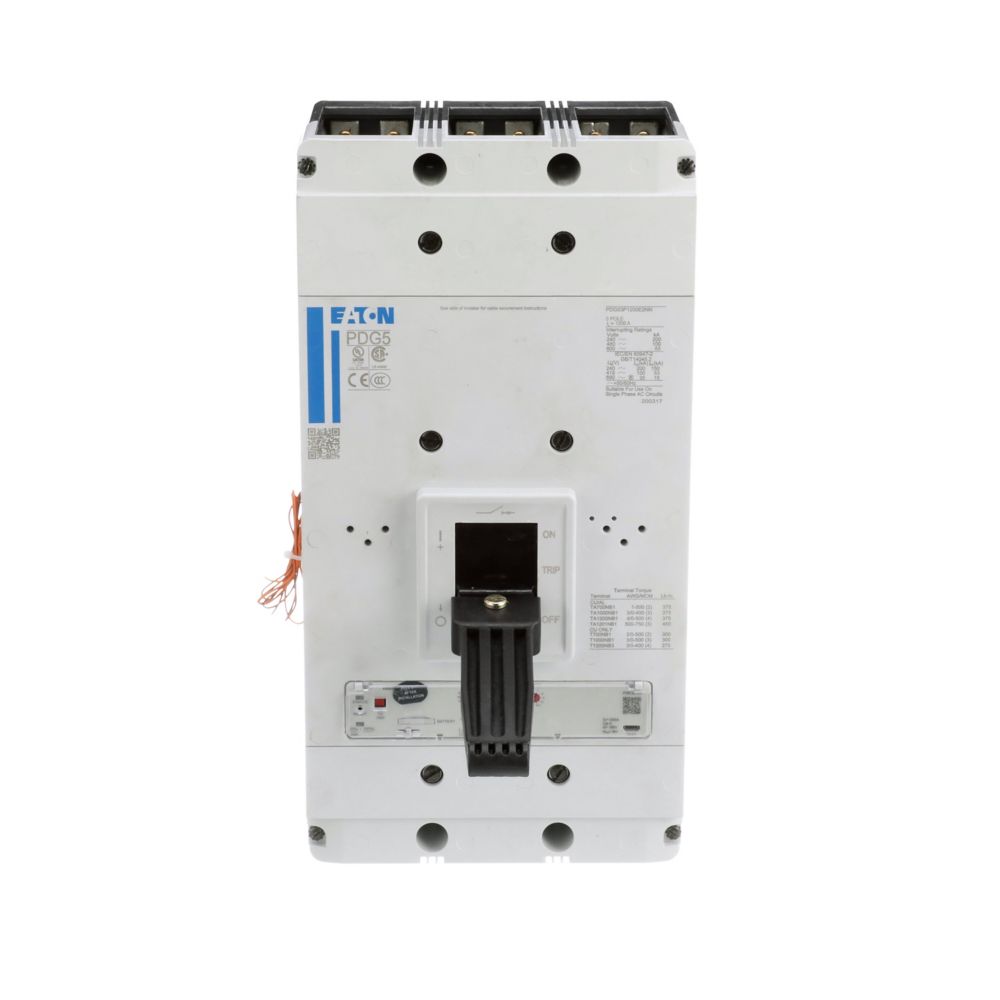

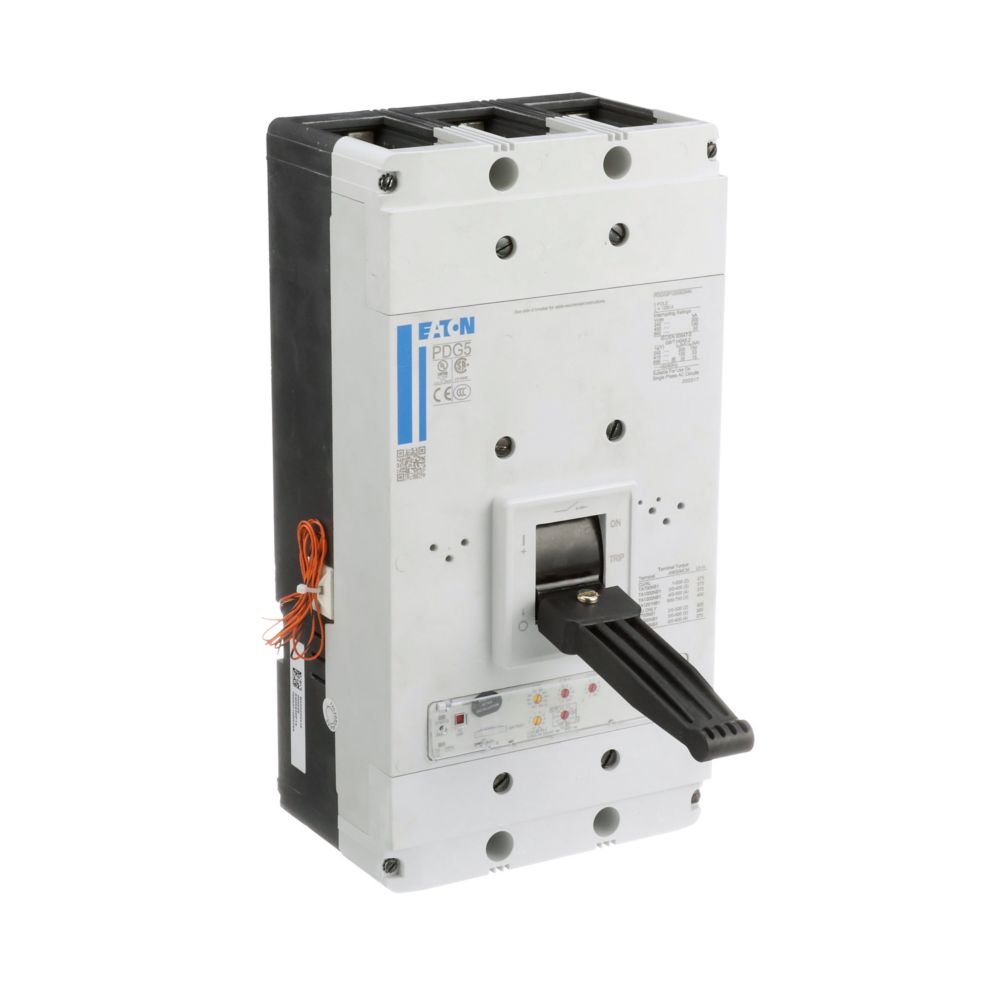

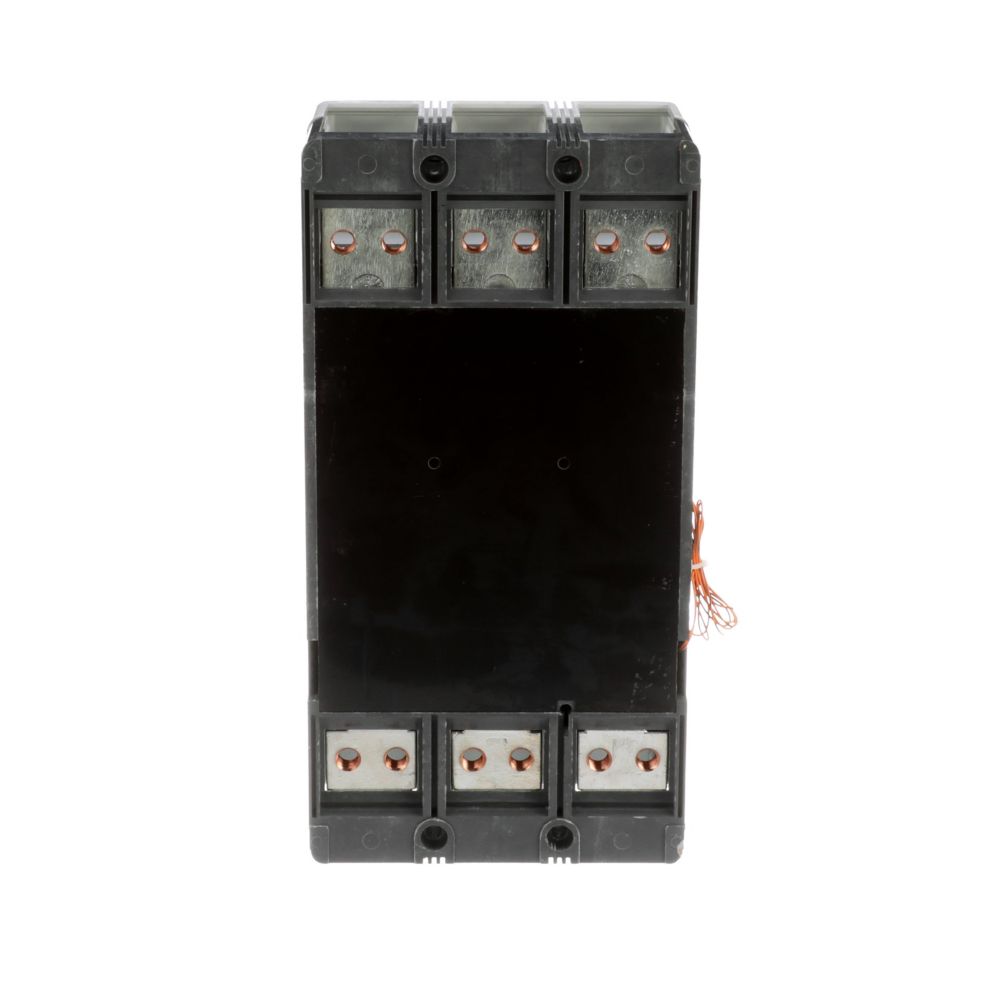

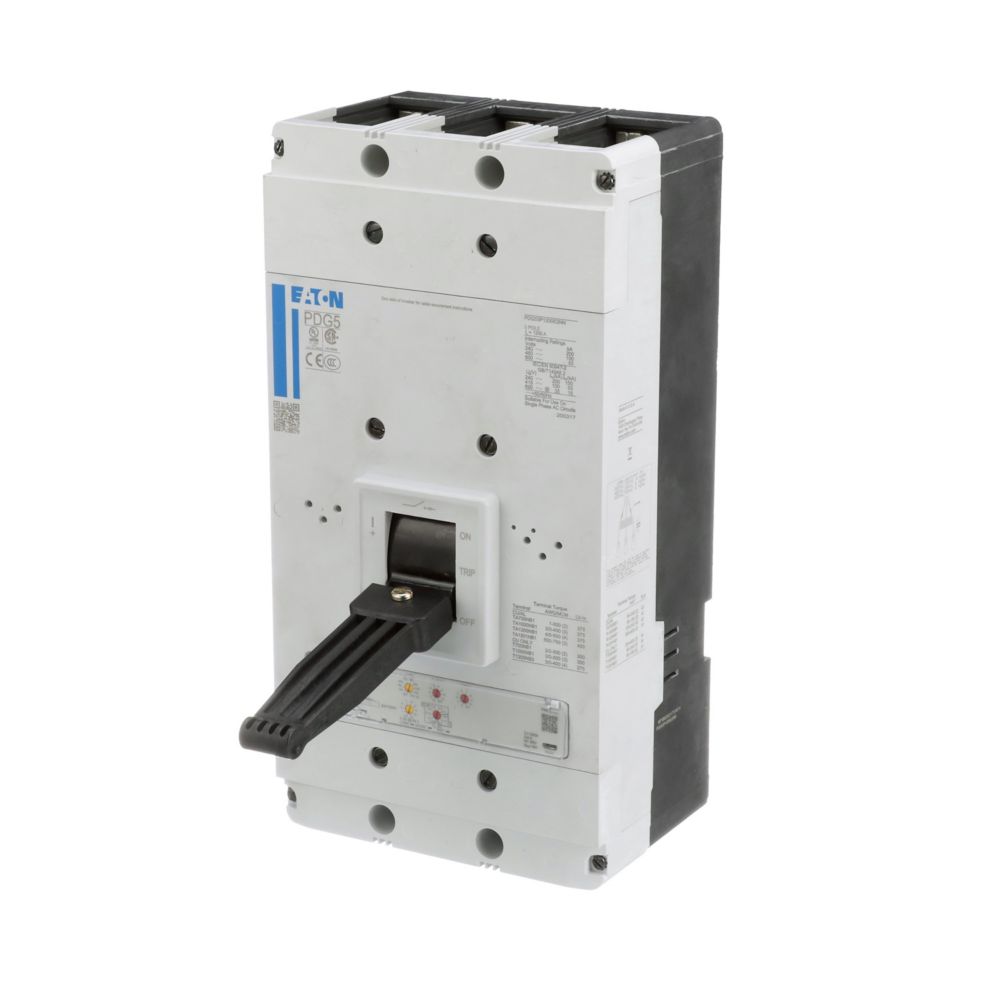

PDG53P1200E2NN is a 1200 amp, 600 volt, 3-pole Power Defense molded case circuit breaker from Eaton with Frame 5 construction.PDG53P1200E2NN features a complete breaker frame type with no terminals included, designed for robust circuit protection in industrial and commercial applications. It provides high interrupting capacity and reliable trip unit performance to meet global standards.
- Amperage Rating: 1200 A
- Voltage Rating: 600 Vac
- Poles: 3
- Frame Type: Frame 5, Complete Breaker
- Circuit Breaker Type: PD5 Global
- Terminals: No Terminals
- Interrupt Rating: High interrupting capacity (consult Eaton for exact kAIC)
- Trip Unit: PXR20 LSIG (typical for PD5 series)
- Mounting Type: Panel mount (standard for molded case breakers)
- Certifications: UL 489, IEC 60947-2, CSA, RoHS compliant
Specifications
- Part Number: PDG53P1200E2NN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 786679305478
- Dimensions : 5.5 in x 11 in x 8.2480315 in (Length/Depth x Height x Width)
- Weight : 45
