Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG53P0800E3RN

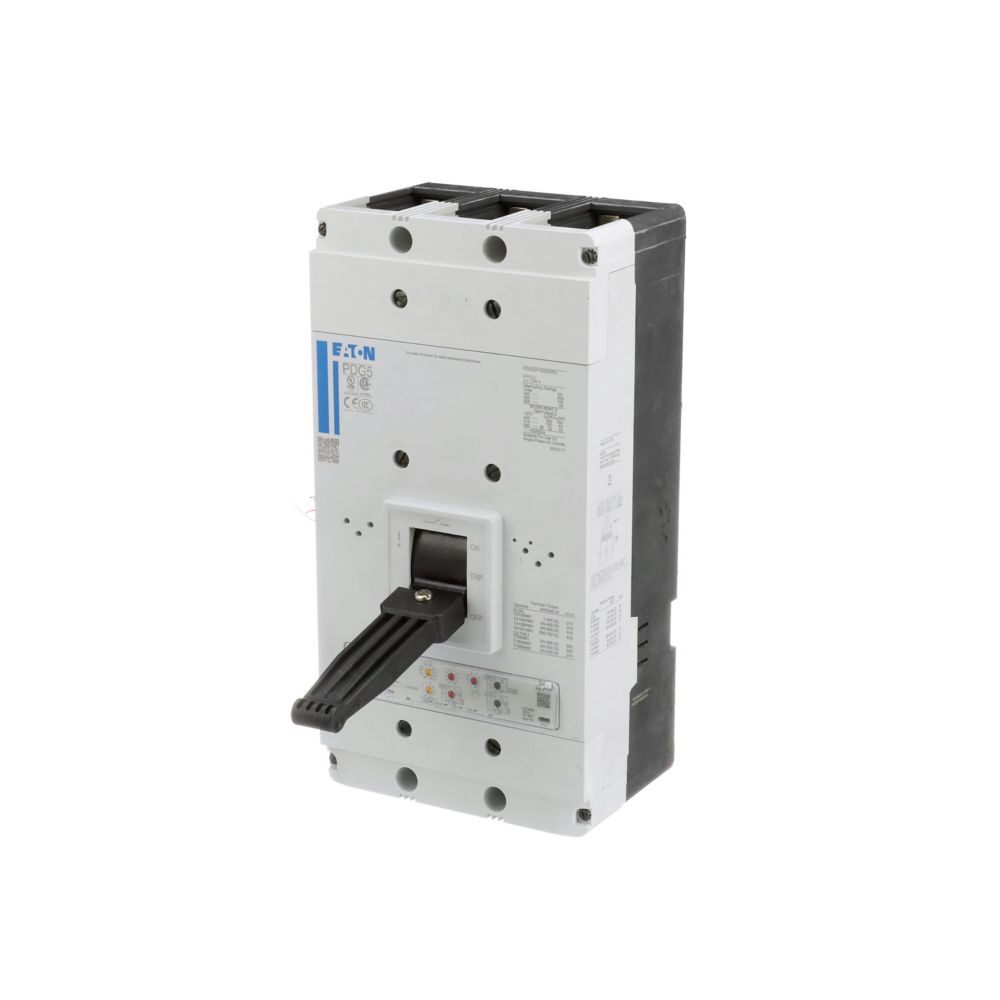

PDG53P0800E3RN is a 3 pole molded case circuit breaker from Eaton Cutler Hammer's Power Defense series rated for 800 amps and 600 volts.PDG53P0800E3RN features a bolt-on mounting type and an electronic LSIG trip unit providing reliable protection for industrial and commercial power distribution systems. It has a 100kA interrupting rating at 480V AC and is UL listed for safety and performance.
- Amperage: 800 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 100kA at 480 VAC
- Series/Frame: Power Defense (PD5 Global)
- Trip Unit: Electronic LSIG
- UL Listed
- Complete breaker frame type
- No terminals included
Specifications
- Part Number: PDG53P0800E3RN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
- Protection : Solid State
Product Data
- UPC : 786679229422
- Dimensions : 139.7 mm x 260.35 mm x 209.5 mm (Length/Depth x Height x Width)
- Weight : 44.506563
