PDG53M1200E5RN - Eaton 1200A 600VAC 3 Pole Power Defense Circuit Breaker Frame 5 PXR20 LSIG ARMS Trip 65kAIC

PDG53M1200E5RN

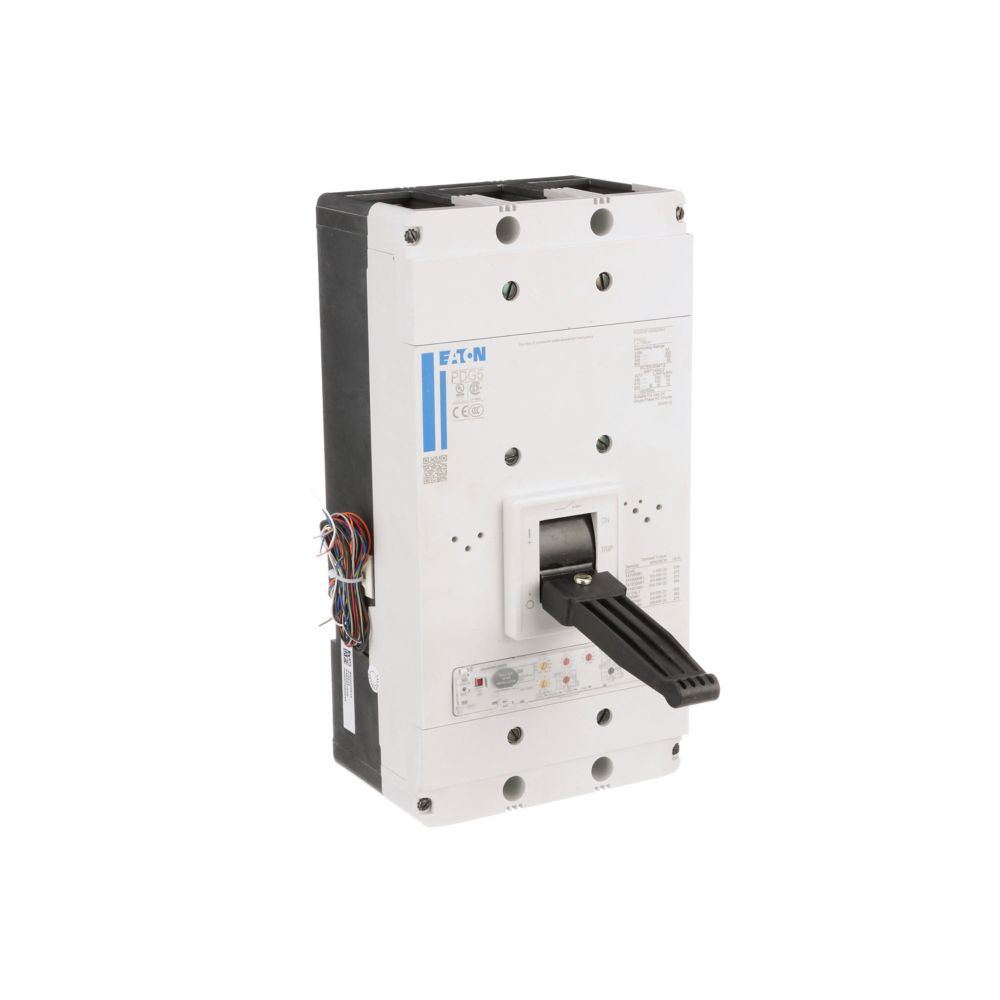

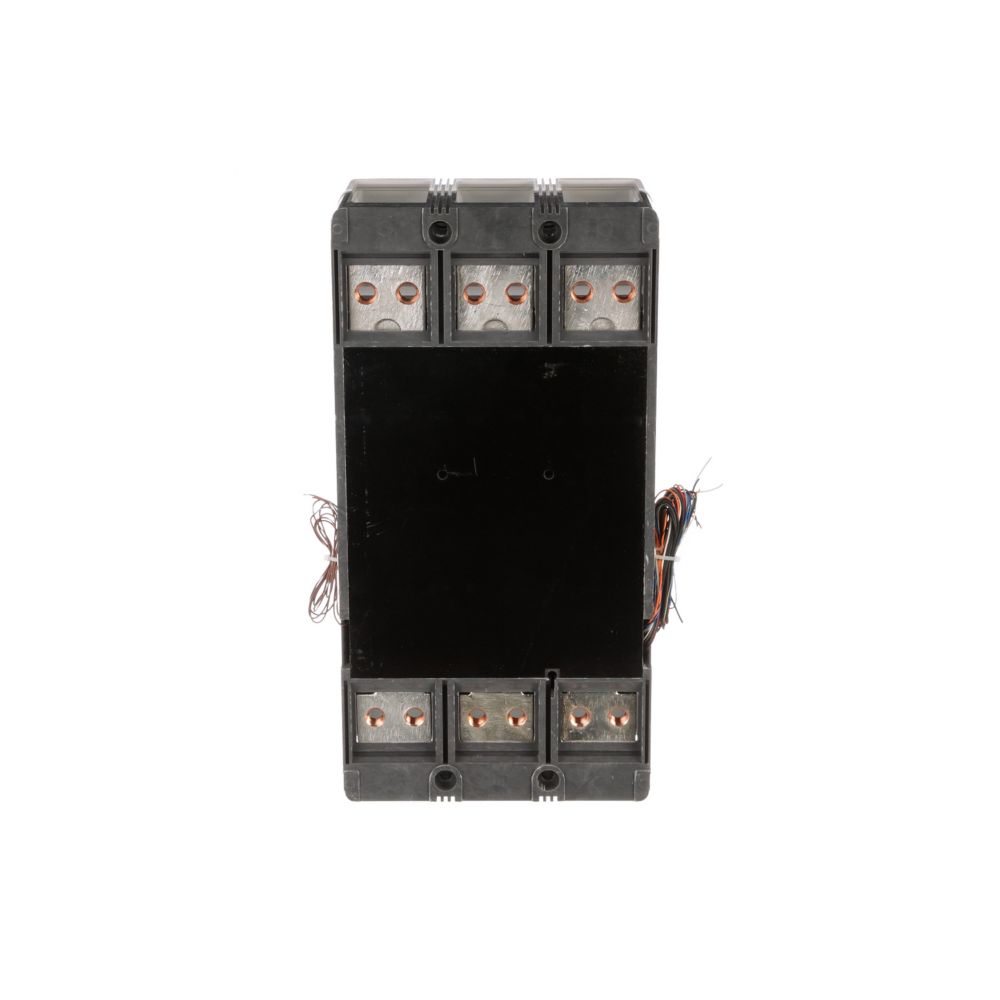

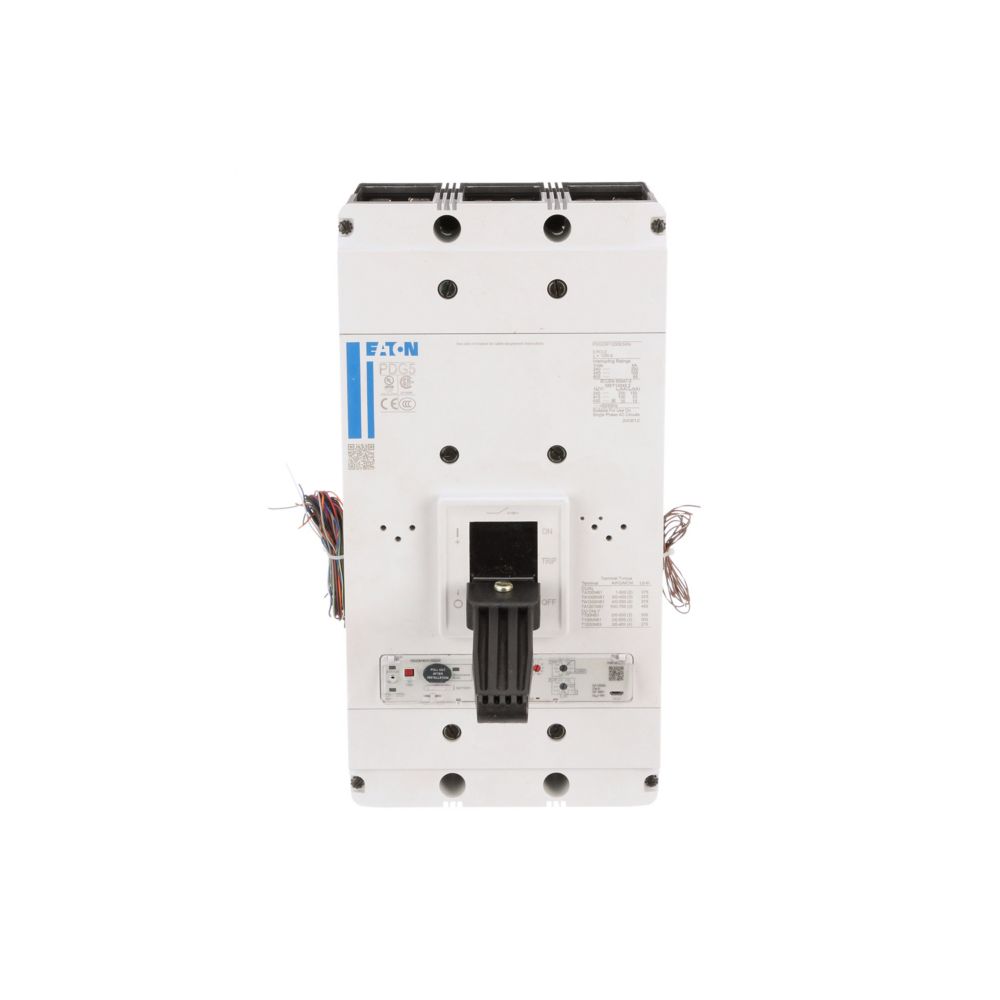

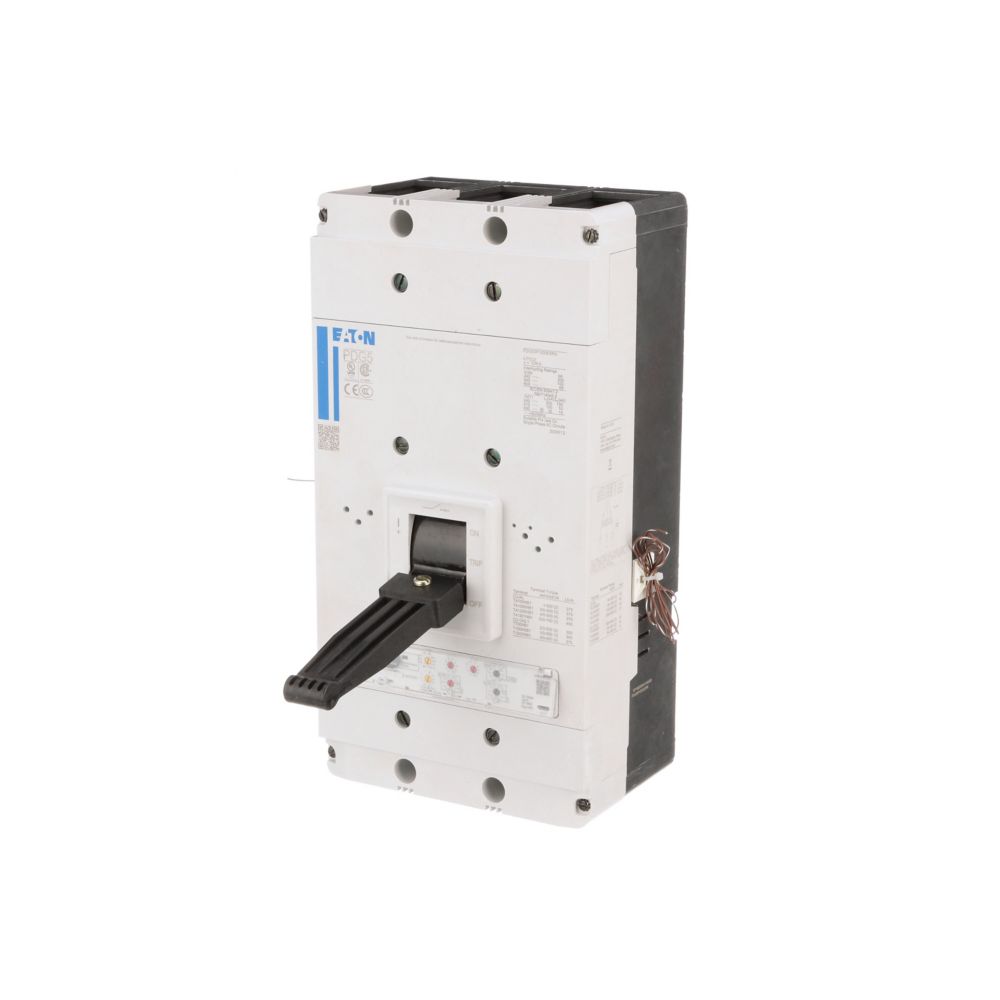

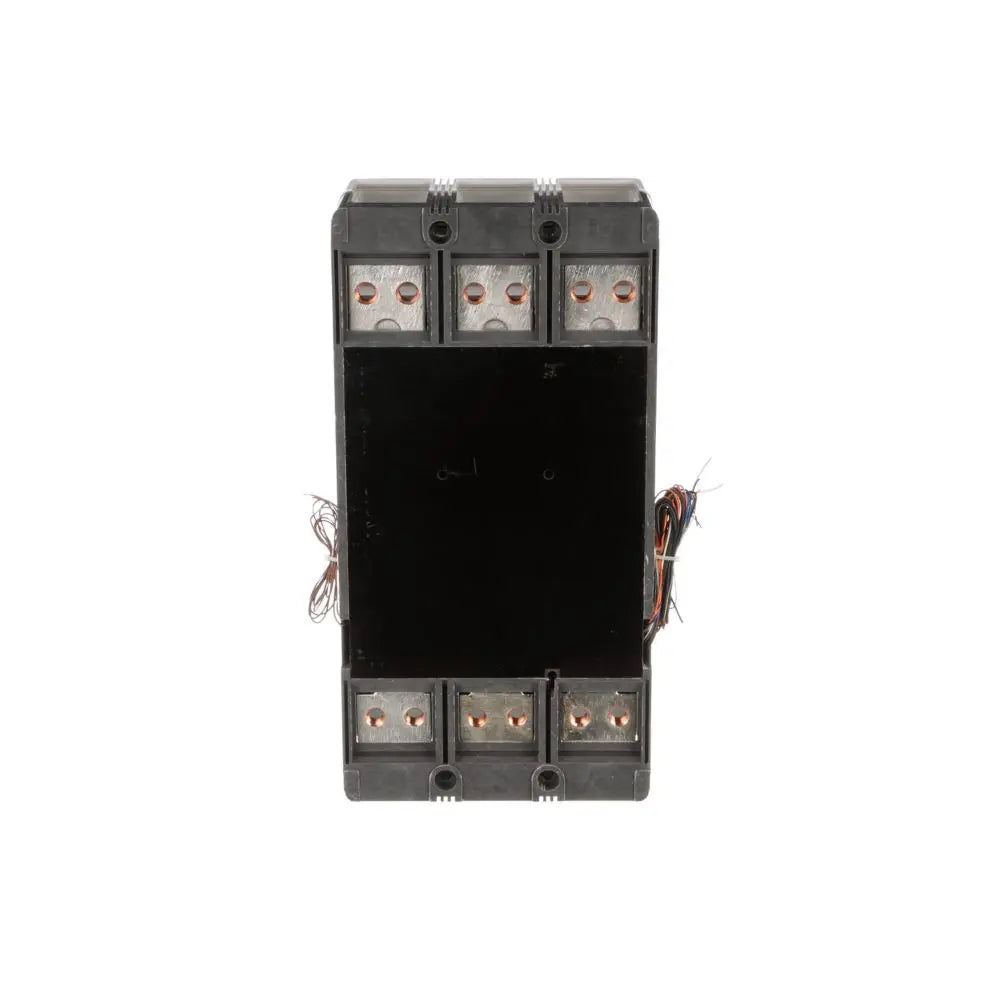

PDG53M1200E5RN is a 1200 amp, 600 VAC, 3 pole Power Defense molded case circuit breaker from Eaton, designed for high-performance power distribution.This Eaton Power Defense circuit breaker features a Frame 5 design with a PXR 20 LSIG trip unit including ARMS (Arcflash Reduction Maintenance System) technology. It is globally rated with a 65kA interrupt rating at 480V and supports up to 600V operation. The breaker comes without terminals and includes load end lugs, suitable for bolt-on mounting. It meets IEC 60947-2 standards and is RoHS compliant, providing reliable protection with advanced electronic trip technology.

Key Specifications
• Amperage: 1200 A
• Voltage Rating: 600 VAC max
• Poles: 3
• Frame: 5
• Interrupt Rating: 65 kAIC @ 480V
• Trip Unit: PXR 20 LSIG with ARMS
• Mounting Type: Bolt-On
• Terminals: No terminals included
• Certifications: IEC 60947-2, UL, CSA, RoHS Compliant
• Dimensions: Approx. 16" x 8.2" x 5.5" (HxWxD)
• Weight: Approx. 21.3 kg
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PDG53M1200E5RN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786679270219
• GTIN : 786679270219
• Country of Origin : Dominican Republic
• Dimensions : 139.7 mm x 406.4 mm x 209.5 mm (Length/Depth x Height x Width)
• Weight : 47.5436
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
