Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG53M1200E4RN

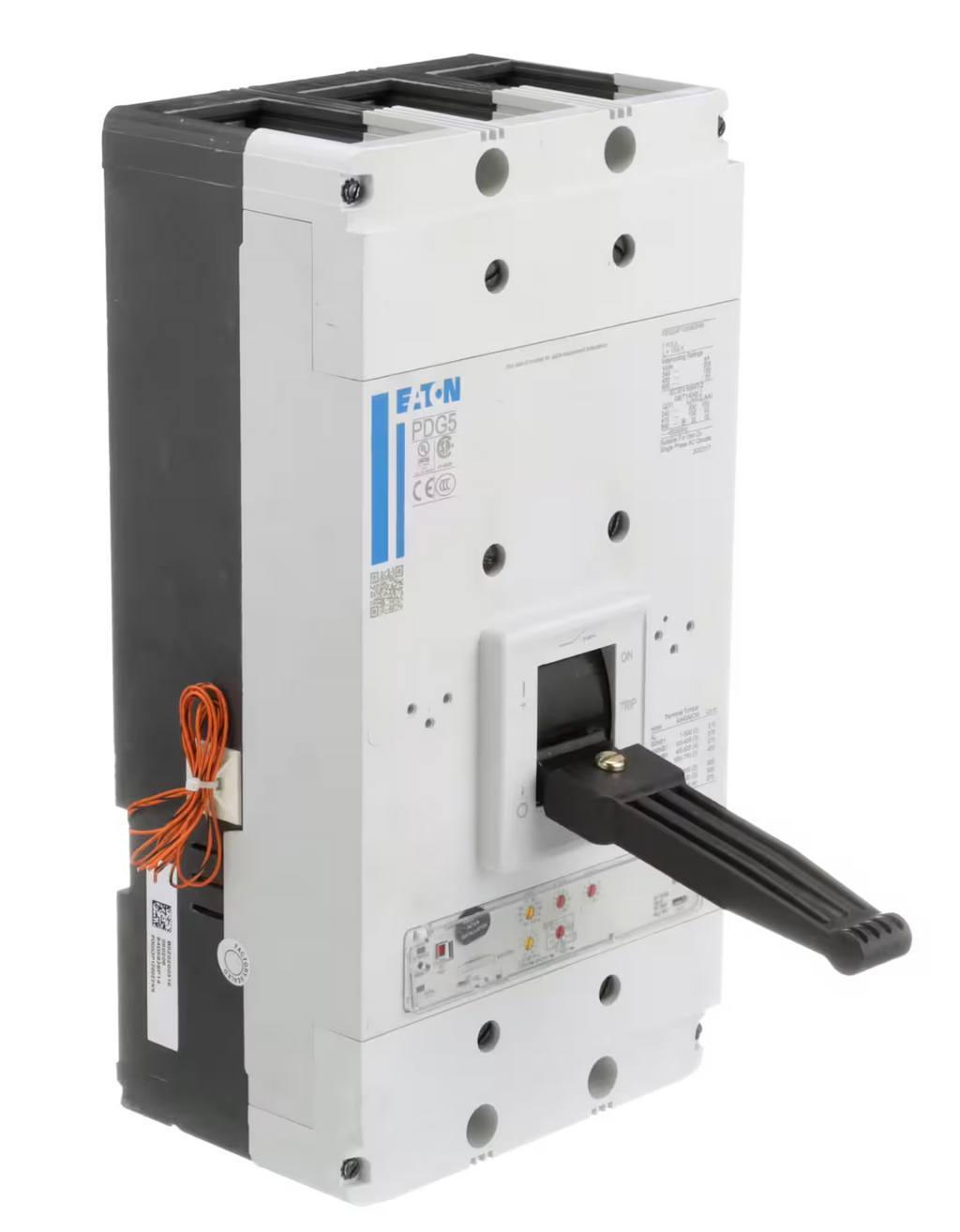

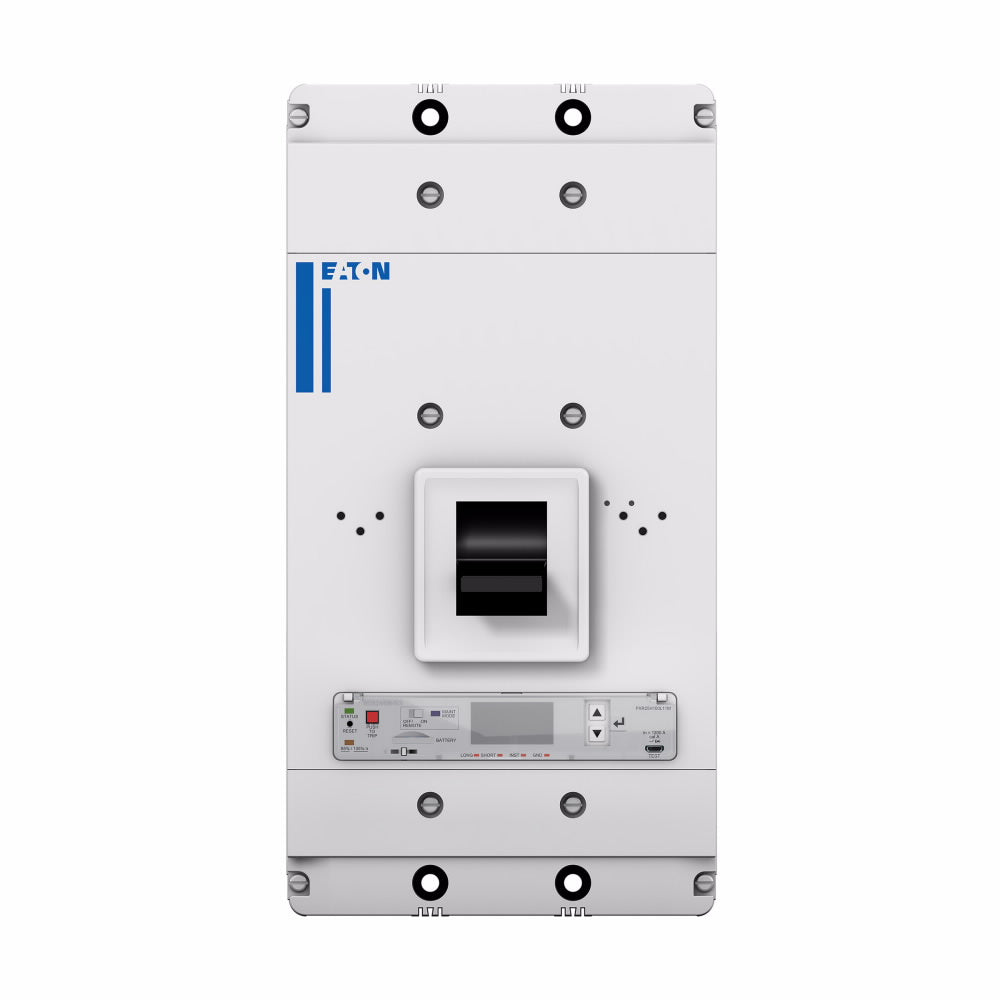

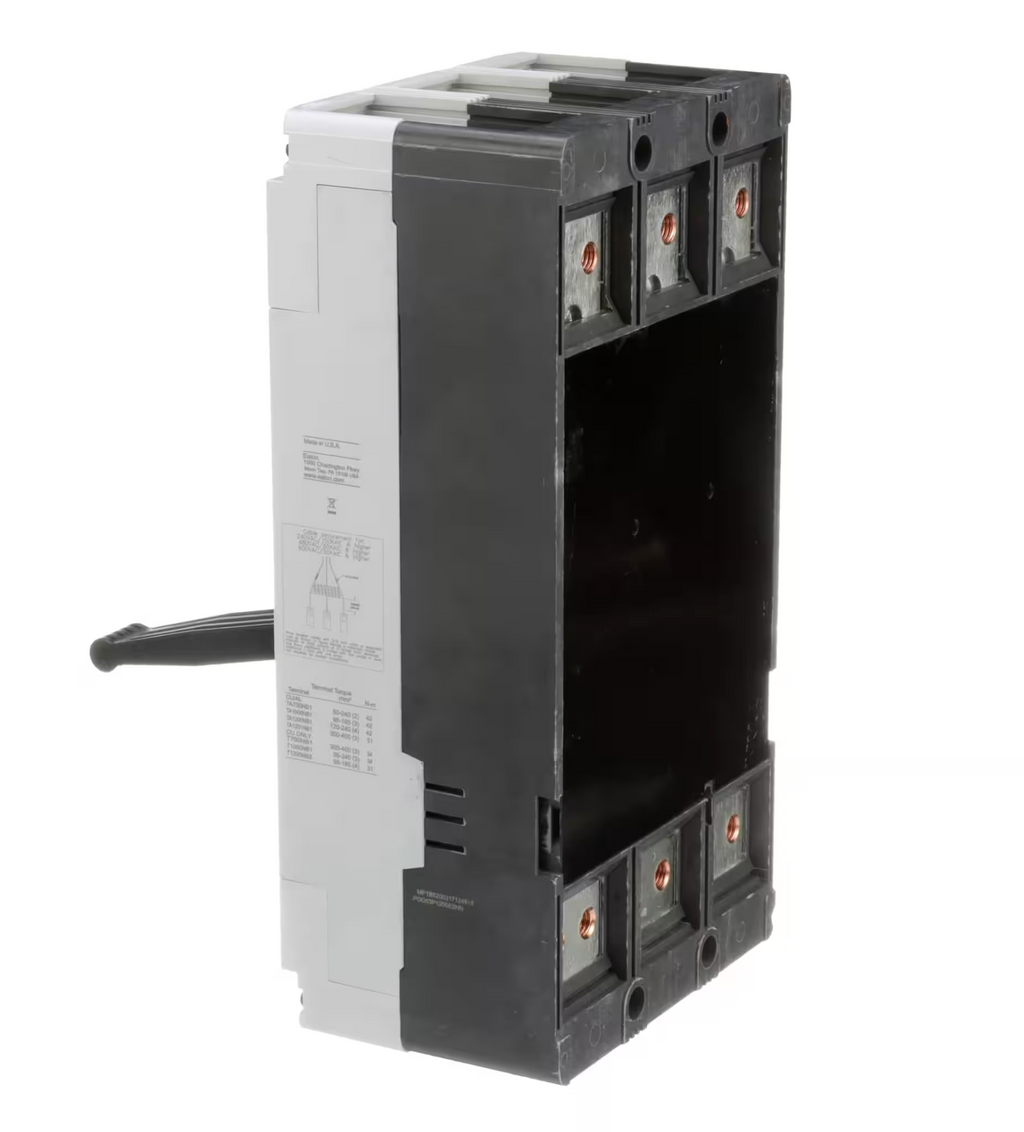

PDG53M1200E4RN is a 3-pole, 1200 amp, 600 volt Power Defense molded case circuit breaker from Eaton designed for reliable power distribution protection.This Eaton circuit breaker features a Frame 5 design with a PXR20 LSI trip unit including ARMS and relays for advanced protection. It is globally rated with a 65kA interrupt rating at 480V and supports bolt-on mounting. The breaker comes without terminals and is suitable for industrial and commercial applications requiring high interrupt capacity and precise trip functions.
- Amperage: 1200A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: Frame 5
- Interrupt Rating: 65kA at 480V
- Trip Unit: PXR20 LSI with ARMS and relays
- Mounting Type: Bolt-On
- Terminals: No terminals (factory package)
- Global PD5 Series
- Dimensions: 12.55 in x 5.55 in x 5.25 in
- Certifications: Globally Rated
Specifications
- Part Number: PDG53M1200E4RN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679259078
- Country of Origin : Dominican Republic
- Dimensions : 18.5 in x 10.5 in x 12 in (Length/Depth x Height x Width)
- Weight : 44.47
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
