2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG53M1200E3MN

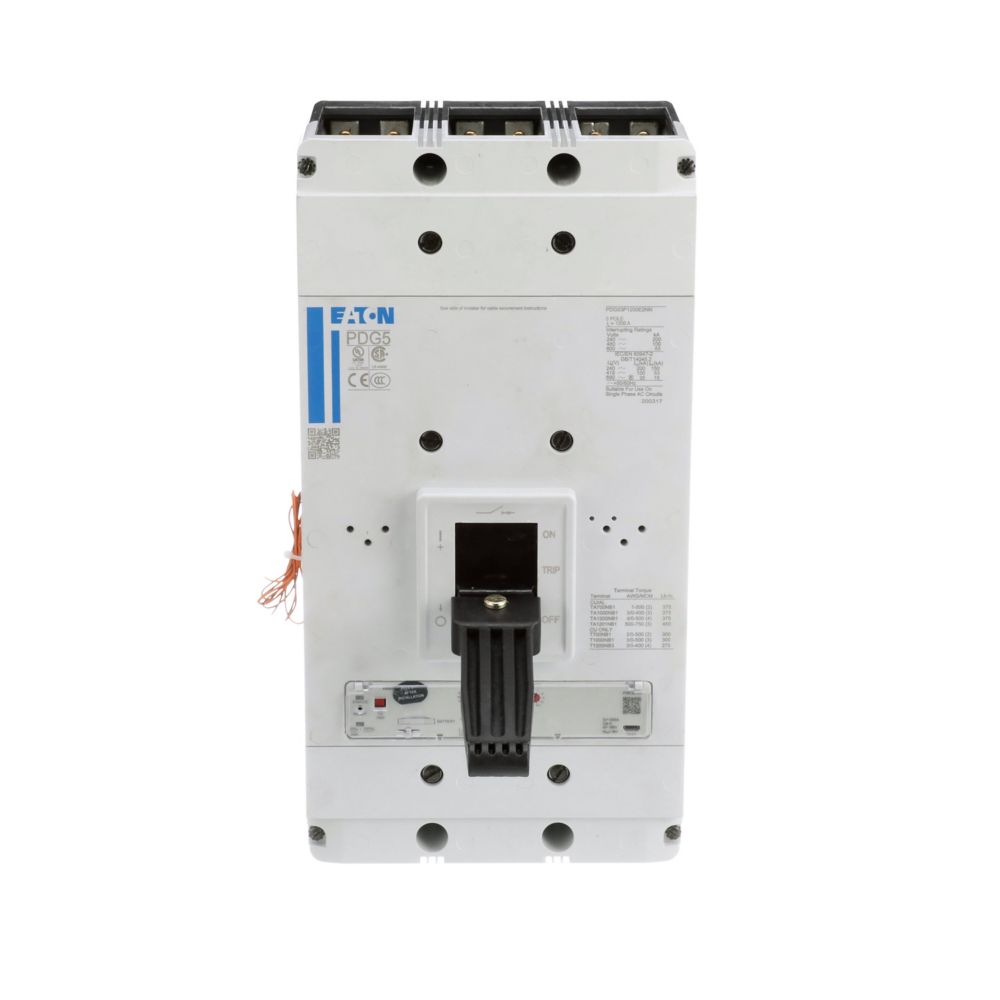

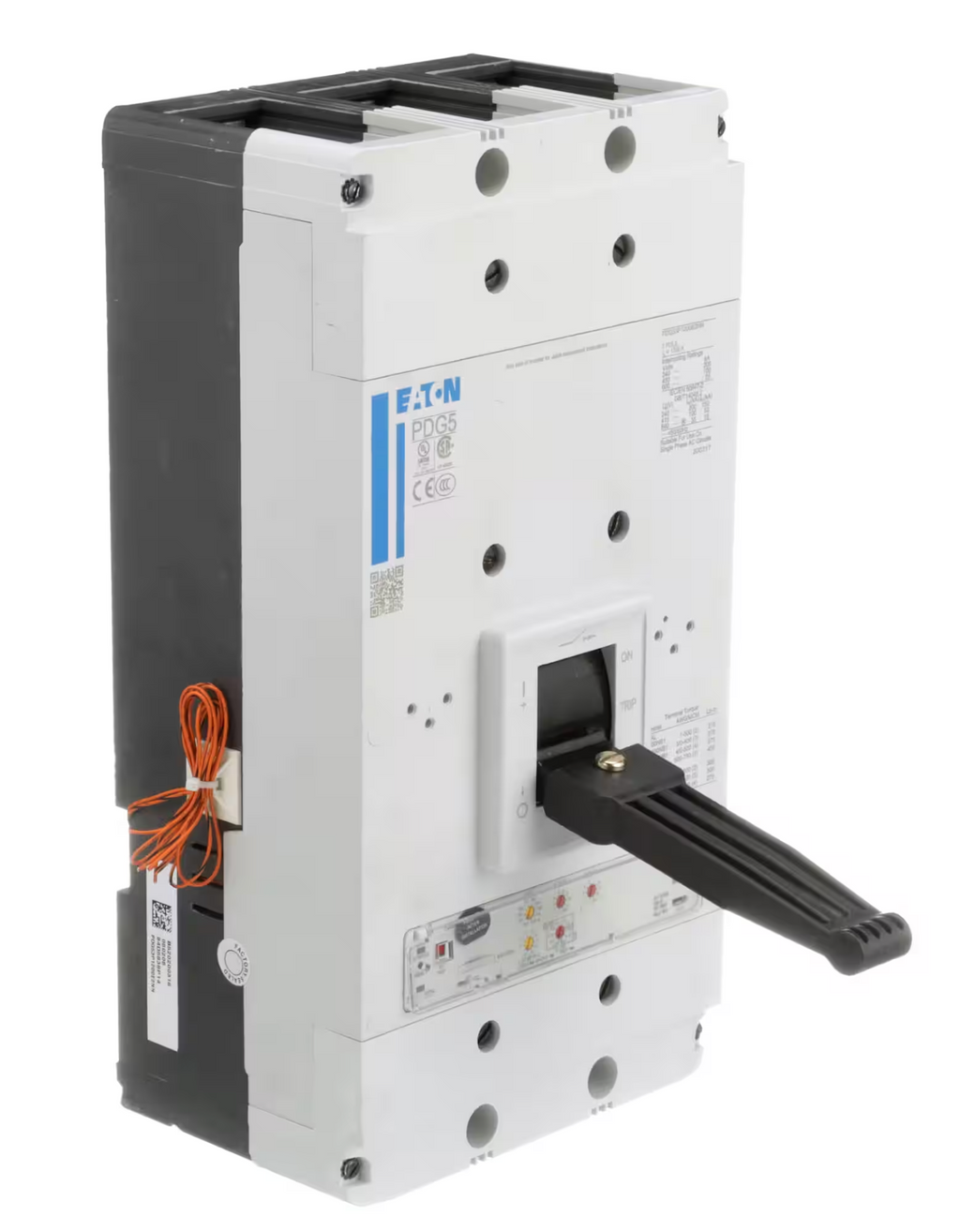

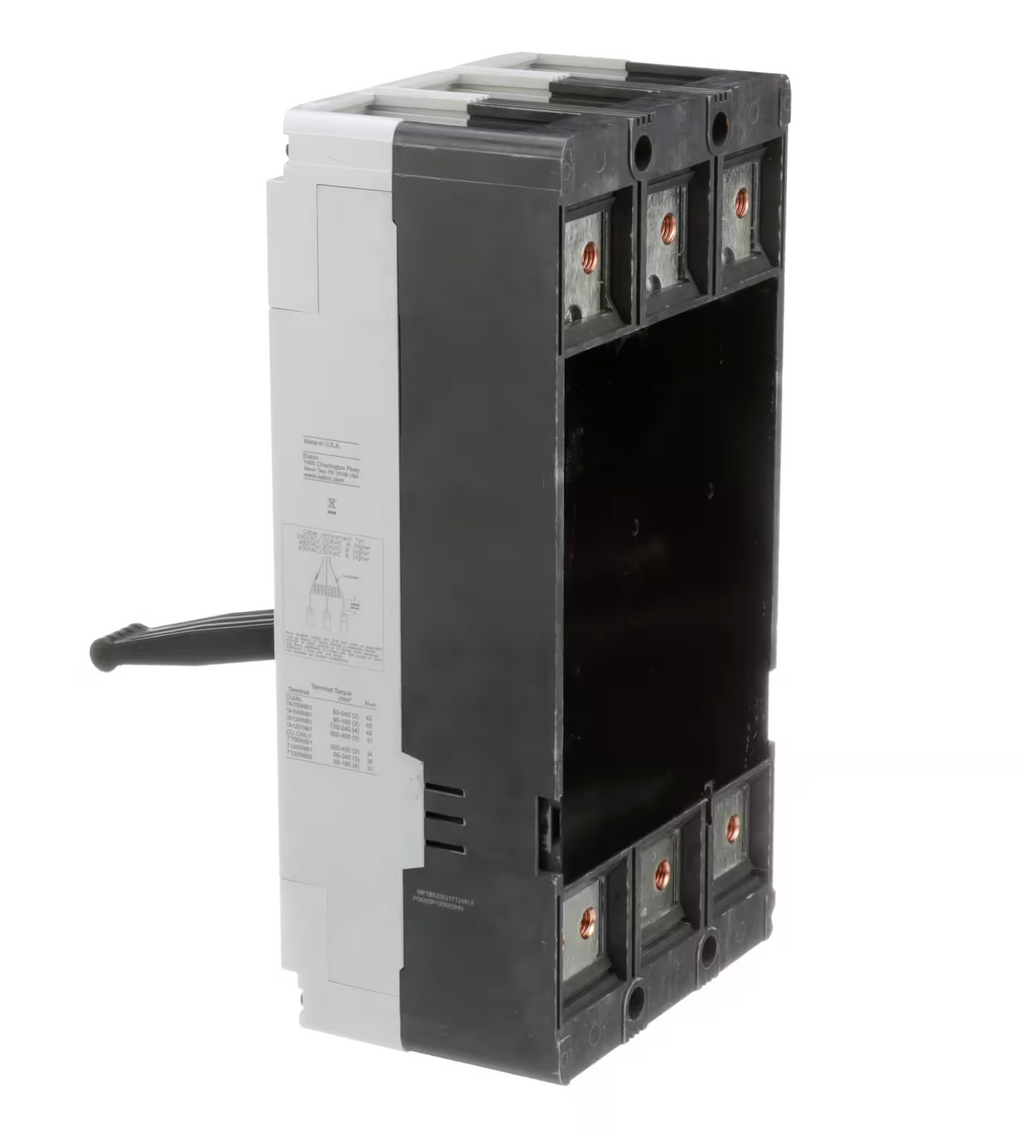

PDG53M1200E3MN is a 3 pole, 1200 amp, 600VAC molded case circuit breaker from Eaton's Power Defense series designed for reliable circuit protection.This circuit breaker features a Frame 5 chassis mount design with a thermal magnetic trip unit (LSIG) and Modbus RTU communication capability. It has a 65kA interrupt rating at 480V and is built without terminals for flexible installation. The breaker is globally rated and suitable for demanding industrial and commercial applications.
- Key Specifications
- Amperage: 1200A
- Voltage Rating: 600VAC, 250VDC
- Poles: 3
- Frame: 5
- Interrupt Rating: 65kA at 480V
- Mounting Type: Chassis Mount
- Trip Unit: PXR20 LSIG with Modbus RTU
- Breaker Type: Thermal Magnetic
- Terminals: None (no terminals)
- Series: Power Defense (PD5 Global)
- Certifications: Globally rated
Specifications
- Part Number: PDG53M1200E3MN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
- Protection : Solid State
Product Data
- UPC : 786679293188
- Dimensions : 139.7 mm x 406.4 mm x 209.5 mm (Length/Depth x Height x Width)
- Weight : 47.5436
