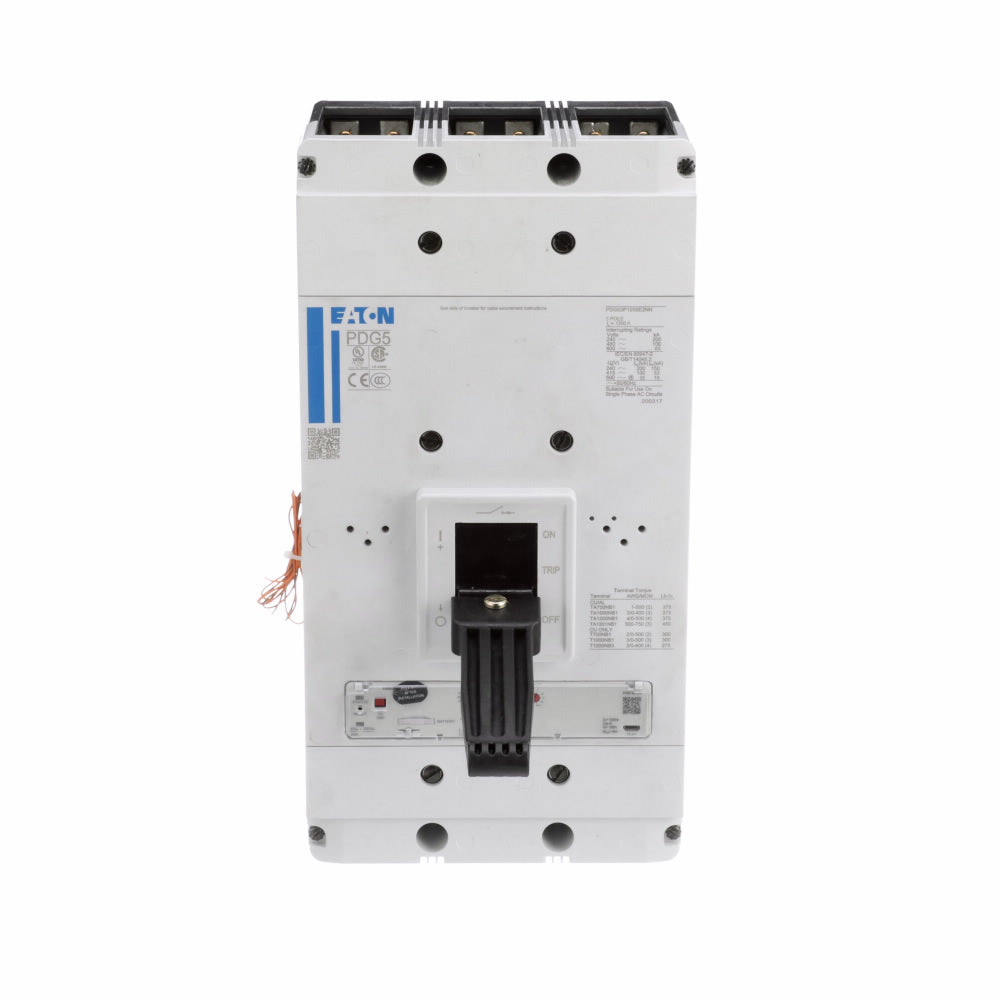

PDG53M0800E2MN - Eaton 800A 600V 3 Pole Molded Case Circuit Breaker PD5 Global Frame 5

PDG53M0800E2MN

PDG53M0800E2MN is a 3 pole, 800A, 600V molded case circuit breaker from Eaton's Power Defense Series, designed for reliable protection in commercial and industrial power distribution systems. This PD5 Global frame 5 circuit breaker features a solid-state electronic trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection, programmable Form-A contacts, and a high interrupt rating for demanding applications. It is suitable for bolt-on mounting and offers robust performance in a compact design.

• Part Number: PDG53M0800E2MN
• Manufacturer: Eaton
• Series: Power Defense PD5 Global
• Frame: 5
• Amperage Rating: 800A
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kAIC @ 480V
• Trip Unit: LSI Electronic, Programmable Form-A
• Terminals: No Terminals
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG53M0800E2MN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679217351
• GTIN : 786679217351
• Country of Origin : Dominican Republic
• Dimensions : 139.7 mm x 406.4 mm x 209.5 mm (Length/Depth x Height x Width)
• Weight : 47.5436
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
