Product Info
- Manufacturer:Eaton
- Sub-Category:Trip Units & Programmers
Description
PDG4XTFA30600

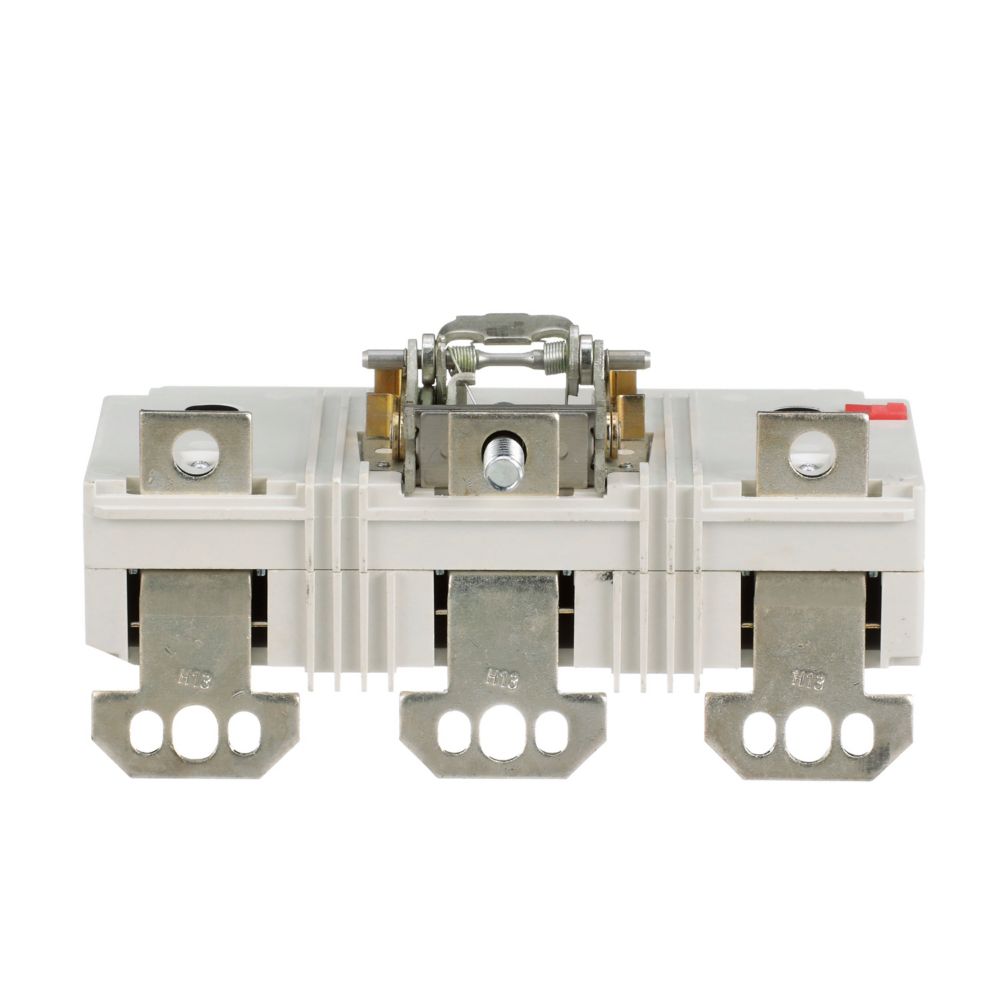

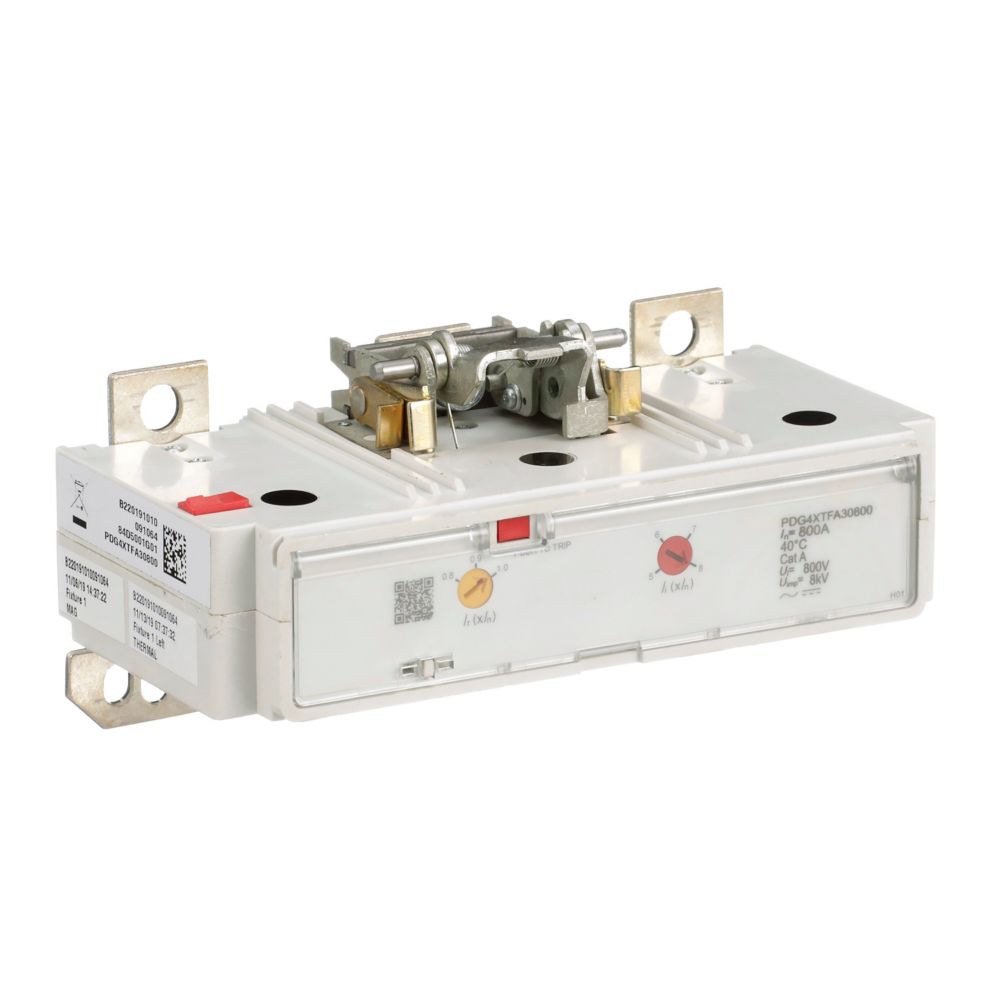

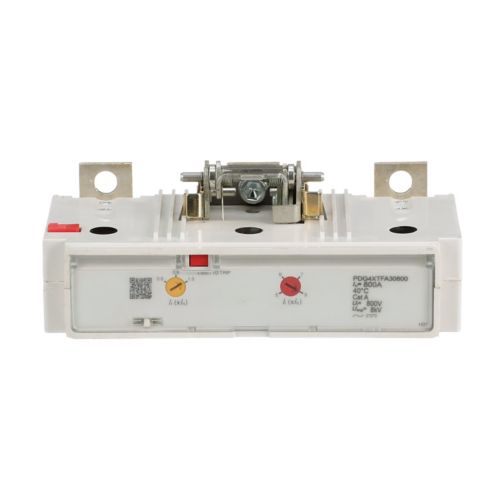

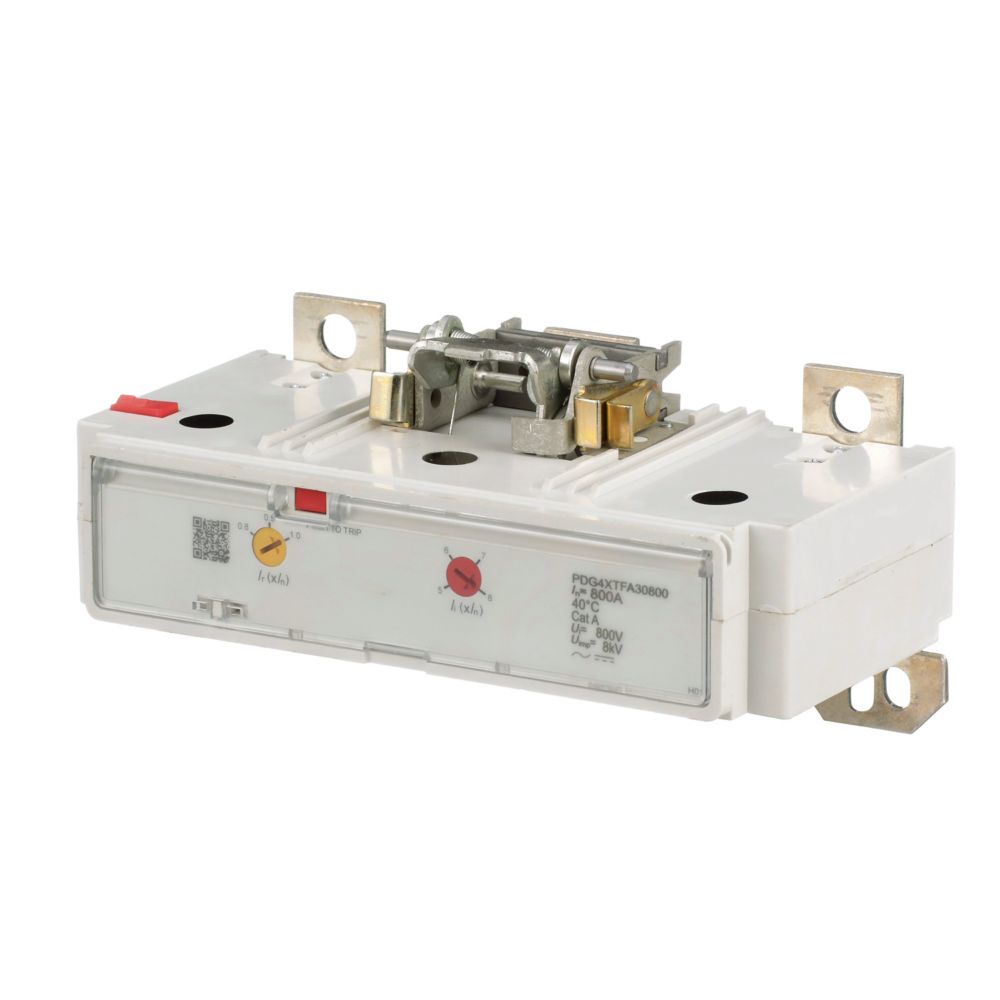

PDG4XTFA30600 is an Eaton Power Defense trip unit designed for use with Power Defense molded case circuit breakers.This trip unit features a 600 ampere rating, supports a maximum voltage of 600 volts, and is configured for three poles. It fits Frame J-K size breakers within the Power Defense series and offers reliable circuit protection with PD4 Global technology. The unit is CSA certified and RoHS compliant, ensuring safety and environmental standards.
- Key Specifications
- Amperage Rating: 600 A
- Voltage Max: 600 V
- Number of Poles: Three-pole
- Frame Size: Frame J-K (Frame 4)
- Circuit Breaker Type: PD4 Global
- Series: Power Defense
- Certifications: CSA
- Compliance: RoHS Compliant
- Product Weight: 1 kg
- Dimensions (H x W x D): 142.9 mm x 136.5 mm x 222.3 mm
- Part Number: PDG4XTFA30600
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Poles : 3
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Compatible Frames : PDG,PDG Frame 4
- UPC : 786679595985
- GTIN : 00786679595985
- Dimensions : 215.9 mm x 142.9 mm x 136.5 mm (Length/Depth x Height x Width)
- Weight : 2.23
- Certification : CSA IEC 60947-2 UL 489 CCC Marked
