Product Info
- Manufacturer:Eaton
- Sub-Category:Lug Terminal Kit
Description
PDG4X3TA801

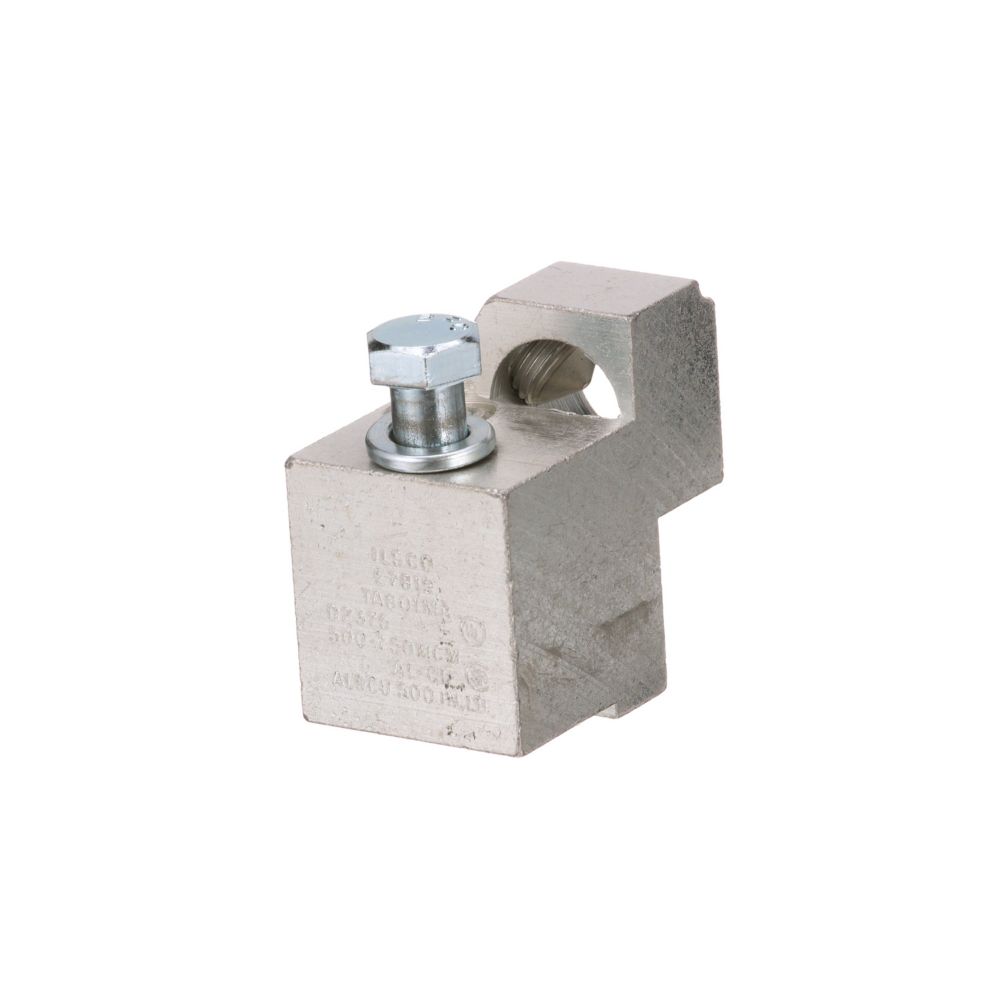

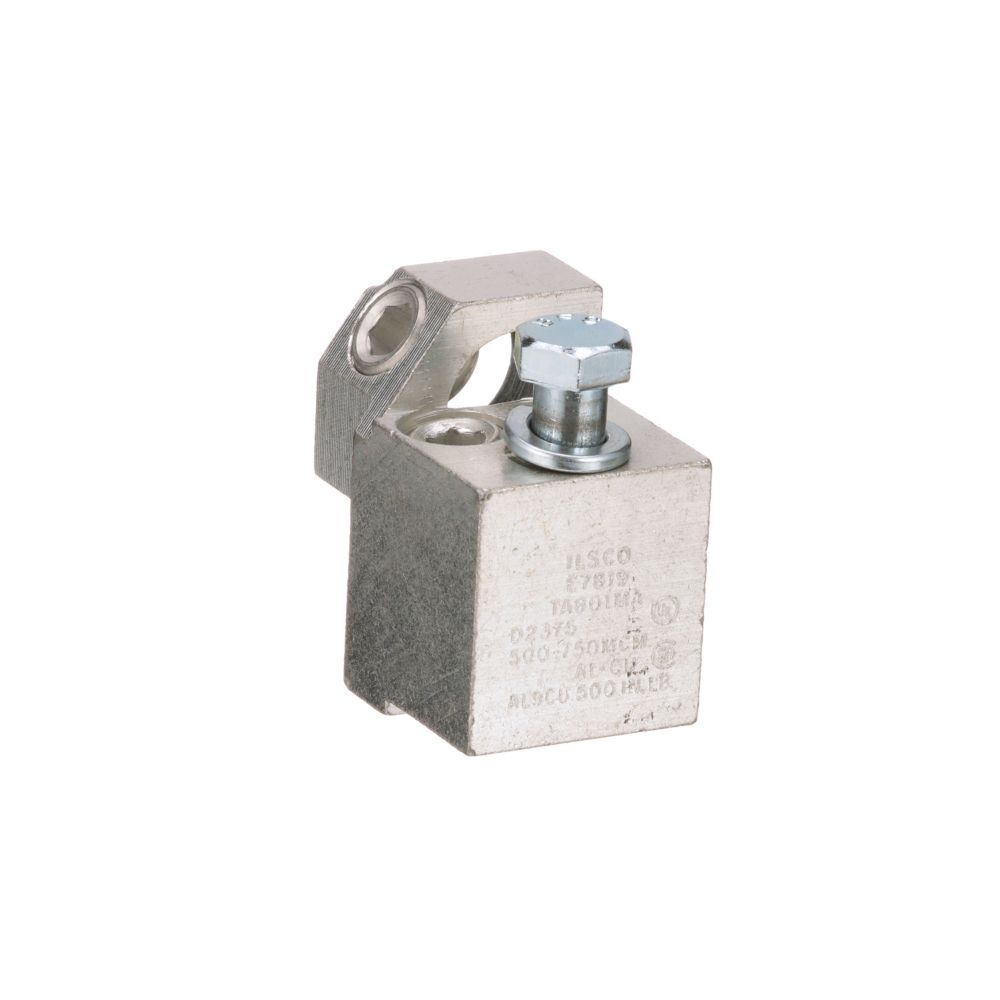

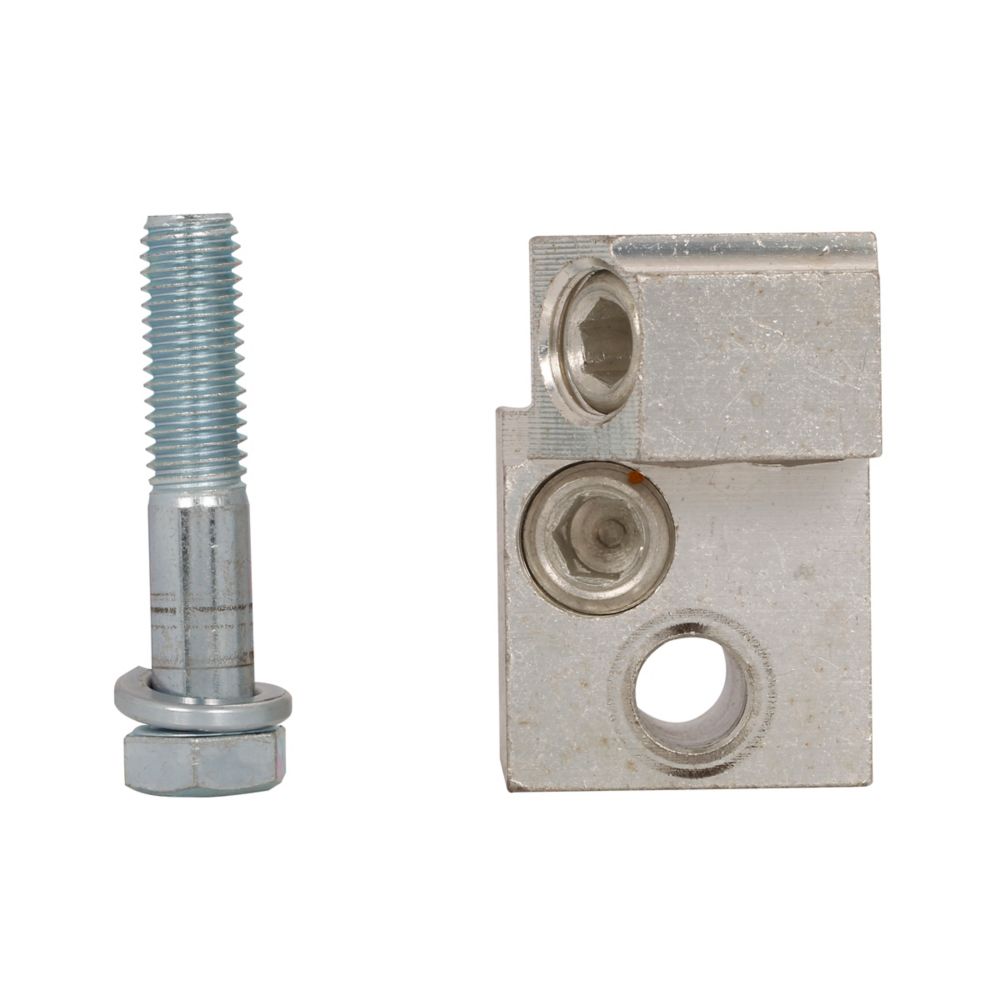

PDG4X3TA801 is an Eaton 800A, 3-pole, 600V Power Defense terminal lug kit designed for Frame 4 circuit breakers.This terminal lug kit supports two conductors per pole with wire sizes ranging from 500 to 750 kcmil for aluminum or copper wires. It is compatible with Eaton Power Defense series molded case circuit breakers, specifically the PD4 Global type, Frame J-K. The kit ensures secure electrical connections for reliable circuit protection in industrial and commercial applications.
- Manufacturer: Eaton
- Part Number: PDG4X3TA801
- Amperage: 800A
- Voltage: 600V
- Poles: 3
- Frame Type: Frame 4 (J-K)
- Wire Size: 2x 500-750 kcmil Cu/Al
- Compatible Circuit Breaker Type: PD4 Global
- Mounting Type: Terminal lug kit for molded case breakers
- Weight: Approximately 2.4 lb
- Certifications: UL, CSA, CCC, IEC, RoHS compliant
Specifications
- Part Number: PDG4X3TA801
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 800
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- Compatible Frames : PDG
Product Data
- UPC : 786679593110
- Dimensions : 6.5 in x 5 in x 4 in (Length/Depth x Height x Width)
- Weight : 2.4
- Standards : RoHS
- Certification : UL, CSA, CCC, IEC
- Wire Size : 2x AWG 500 to 750KCmil, Cu/Al
