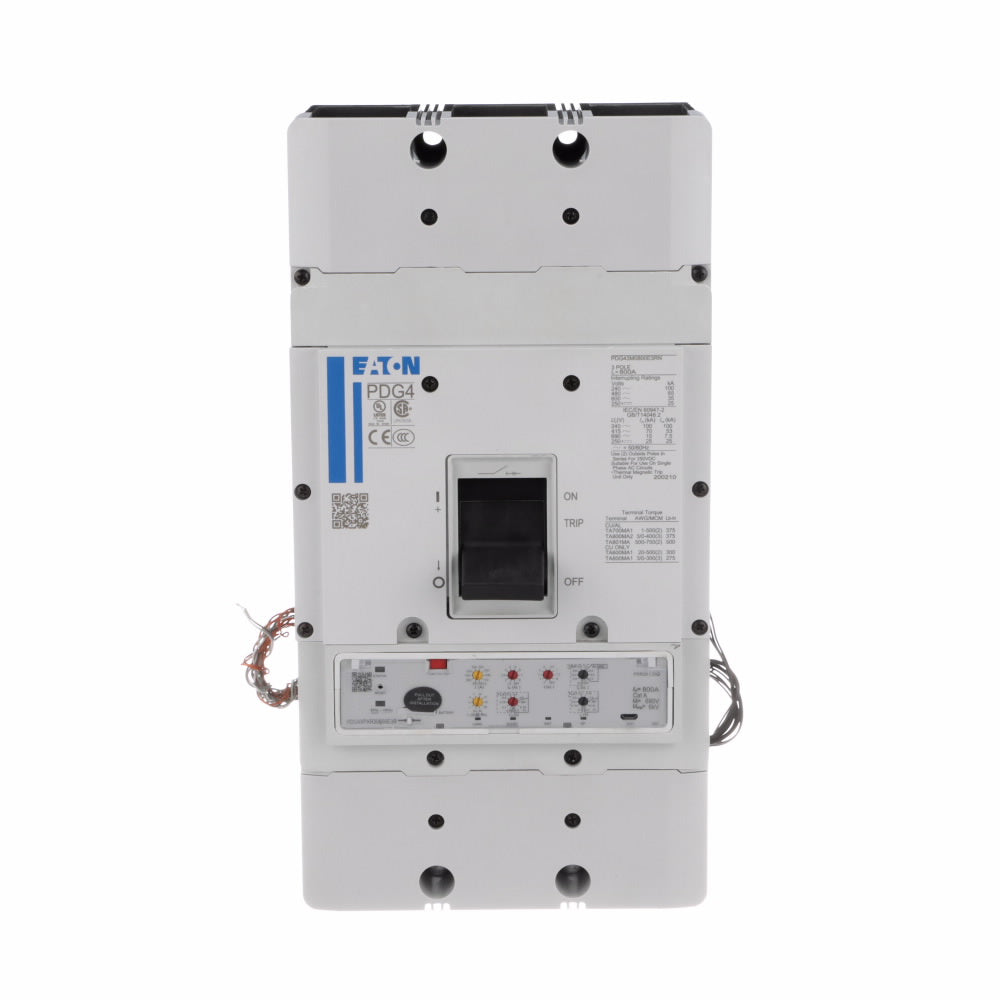

PDG43M0800E3RN - Eaton 800A 600VAC 3-Pole Power Defense Molded Case Circuit Breaker Frame 4 PXR20 LSIG Trip Unit

PDG43M0800E3RN

PDG43M0800E3RN is an Eaton Power Defense molded case circuit breaker designed for 800 Amp, 600 VAC applications with a 3-pole configuration.This circuit breaker features a Frame 4 size and is equipped with the advanced PXR20 LSIG electronic trip unit, providing reliable protection with a 65 kA interrupt rating at 480 VAC and 45 kA at 600 VAC. It is UL 489 listed and globally accepted under UL, CSA, IEC, and CCC standards. The breaker includes embedded communications and metering capabilities, arc flash reduction maintenance system, and field-installable components for customization.

Key Specifications
• Amperage: 800 Amp
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: 4
• Interrupt Rating: 65 kA at 480 VAC, 45 kA at 600 VAC
• Trip Unit: PXR20 LSIG
• Certifications: UL 489, CSA, IEC, CCC
• Mounting Type: Molded Case
• Embedded Communications and Metering
• Arc Flash Reduction Maintenance System
• Field Installable Components

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG43M0800E3RN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667943745
• GTIN : 00786679437452
• Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
• Weight : 30.328
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 493
