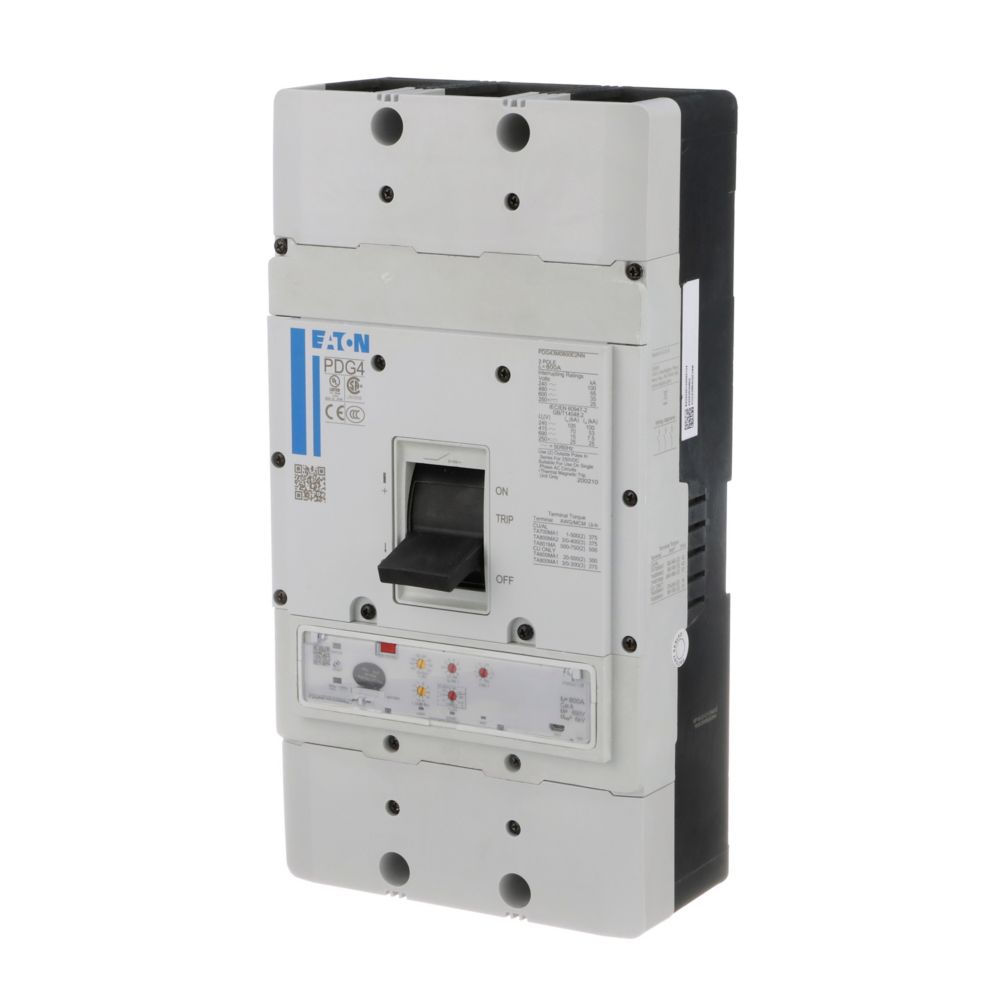

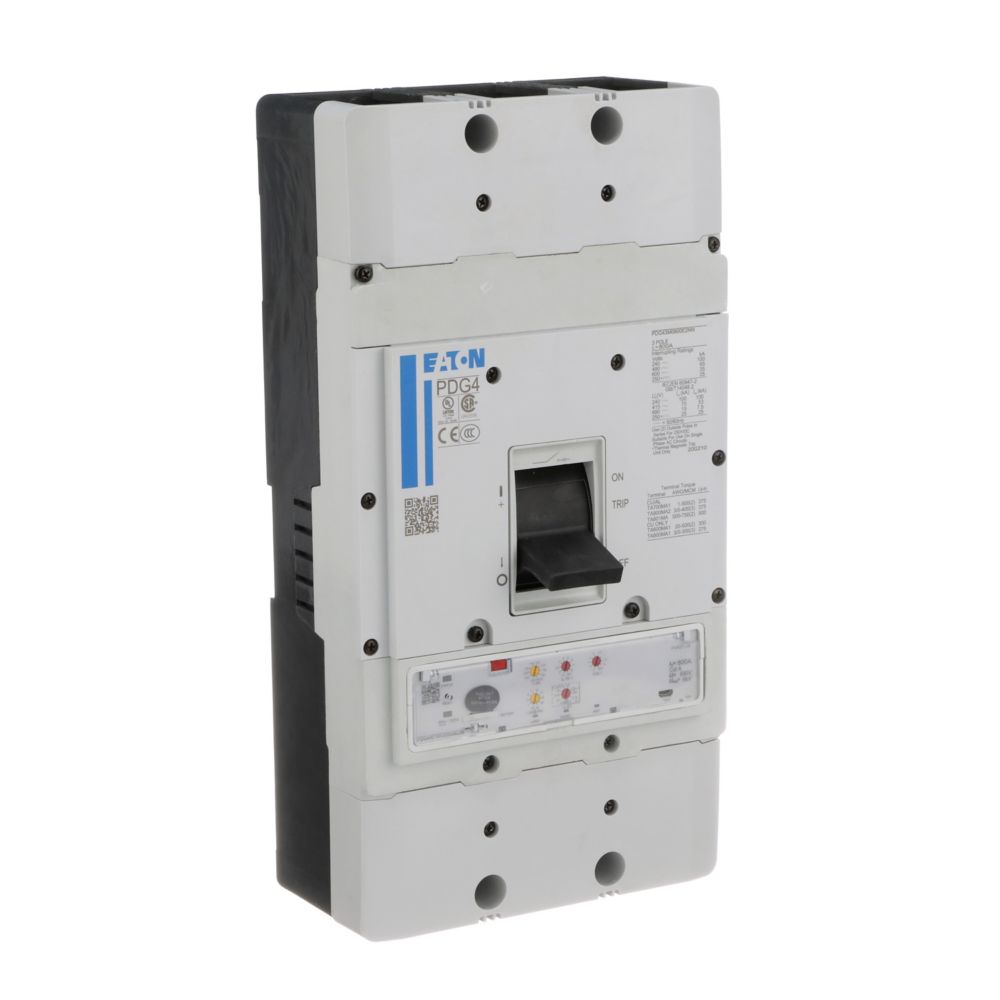

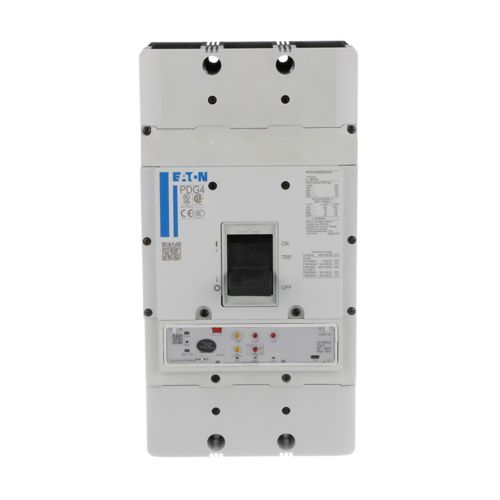

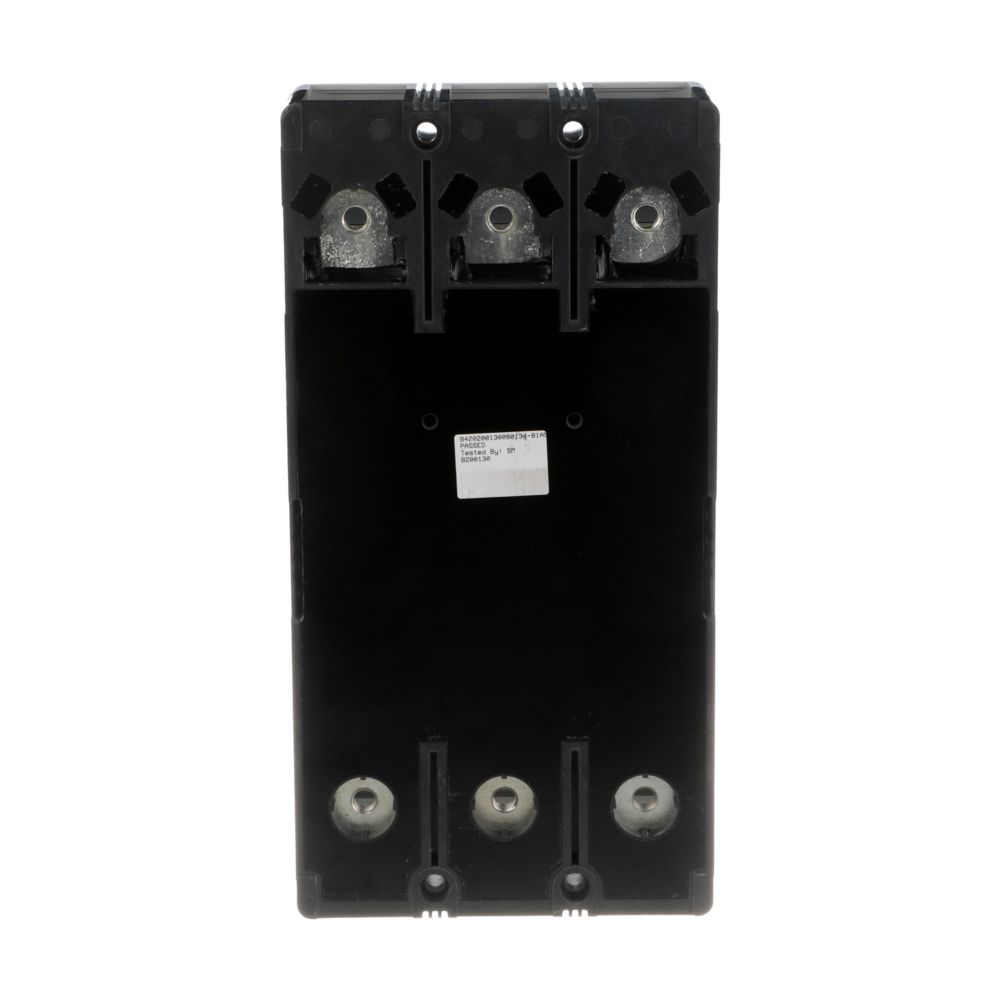

PDG43M0800E2MN - Eaton Power Defense 800A 3P Frame 4 Molded Case Circuit Breaker 65kA/480V No Terminals

PDG43M0800E2MN

PDG43M0800E2MN is an Eaton Power Defense molded case circuit breaker designed for reliable protection in demanding electrical environments. This three-pole, 800A breaker features a 65kA interrupt rating at 480V and is part of the globally rated PD4 series with a robust Frame 4 design. The unit includes a PXR20 LSI trip unit with Modbus RTU communication and relays, and is supplied without terminals for flexible installation. This circuit breaker is engineered for industrial and commercial applications requiring high interrupt capacity and advanced trip functionality. The PDG4 series offers global compliance and is suitable for use in a wide range of power distribution systems.

• Part Number: PDG43M0800E2MN
• Manufacturer: Eaton
• Series: Power Defense PD4
• Frame: 4
• Poles: 3
• Amperage Rating: 800A
• Voltage Rating: 600 Vac
• Interrupt Rating: 65kA at 480V
• Mounting Type: No Terminals
• Communication: Modbus RTU
• Trip Unit: PXR20 LSI
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG43M0800E2MN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Section : Molded case circuit breaker
• Family : Power Defense Series
• Type : PDG
• Voltage : 600VAC
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kAIC at 480VAC
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Compatible Frames : Complete Breaker

Product Data

• UPC : 786679401965
• Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
• Weight : 30.328
• Standards : RoHS
• Certification : IEC, CSA, UL, CCC, CE
