PDG43K0700TFAJ - Eaton Power Defense 700A 600VAC 3-Pole Molded Case Circuit Breaker Frame 4 T-M Trip Unit

PDG43K0700TFAJ

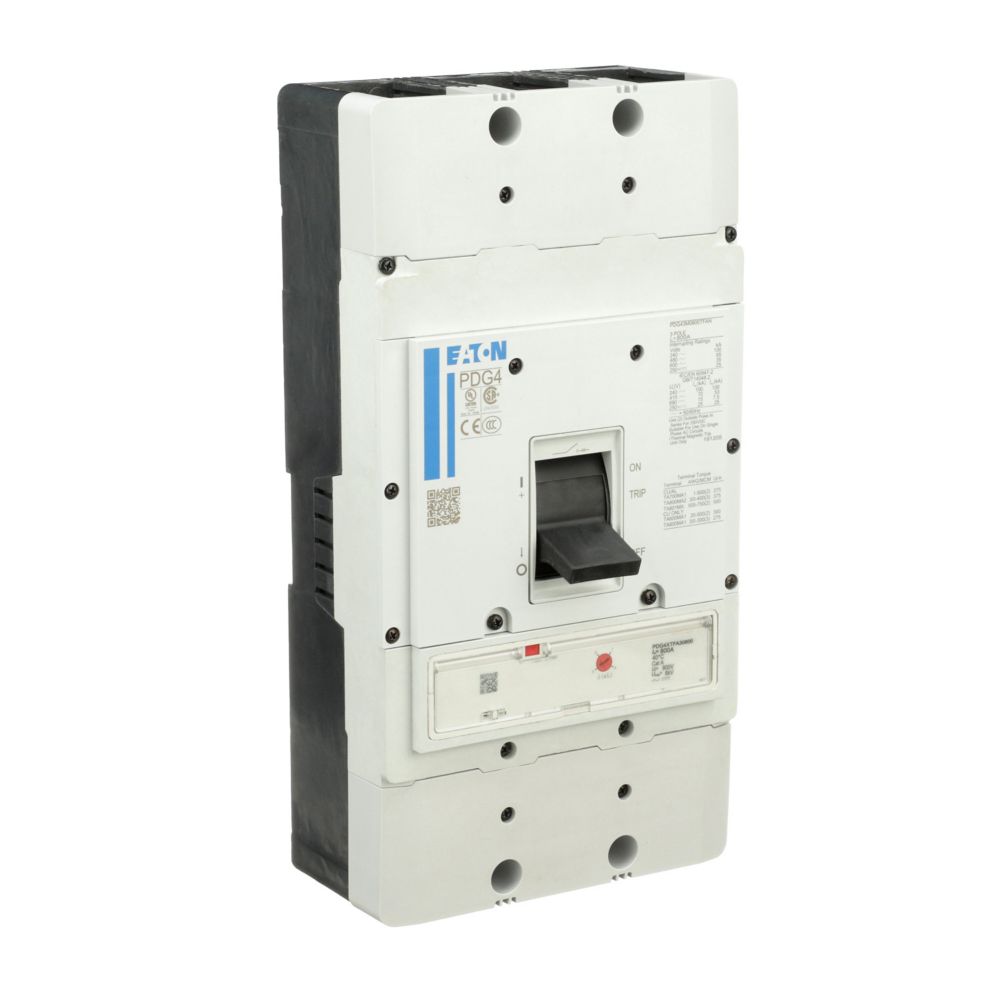

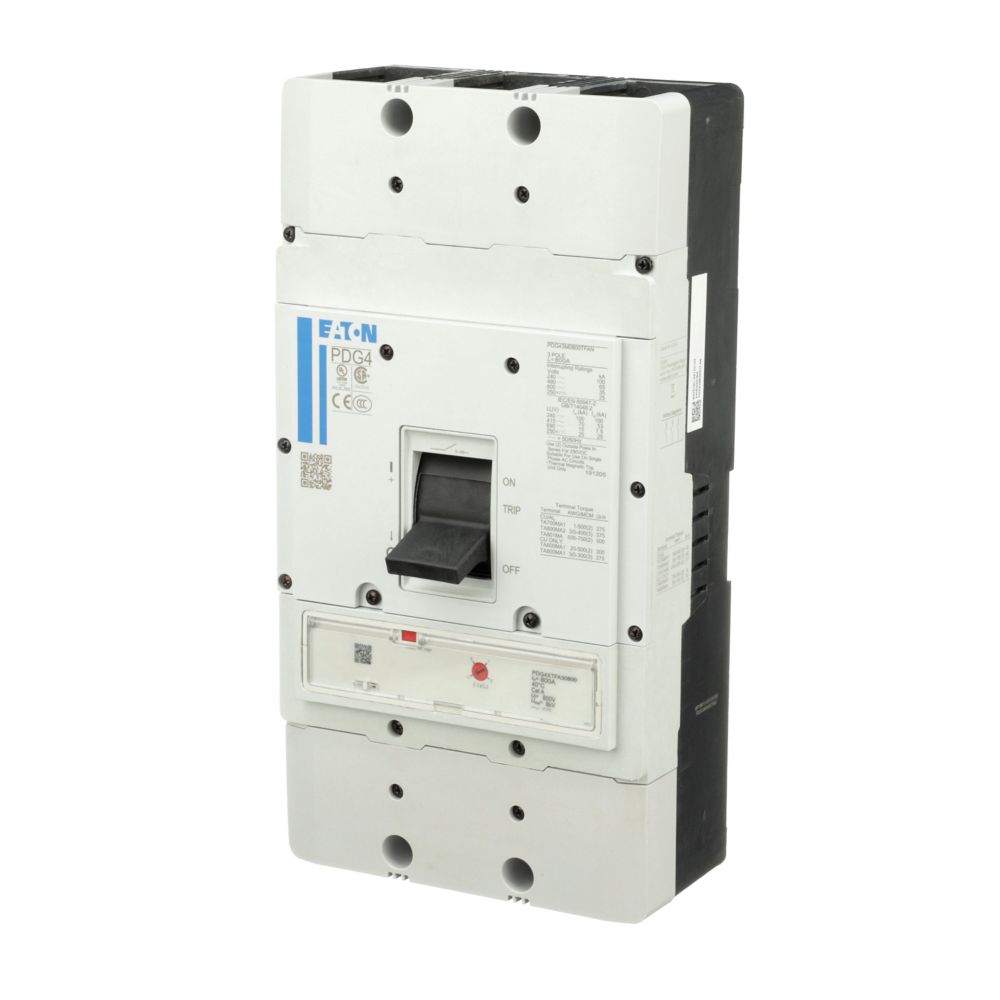

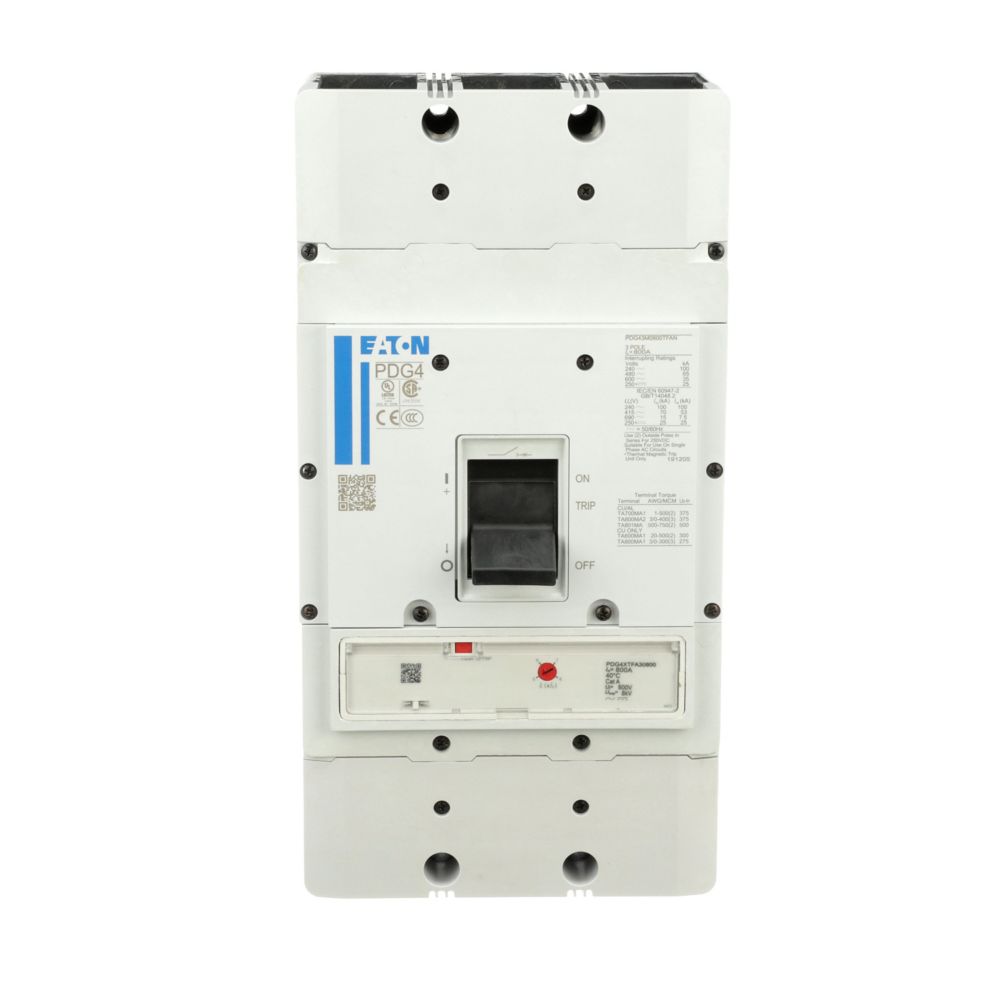

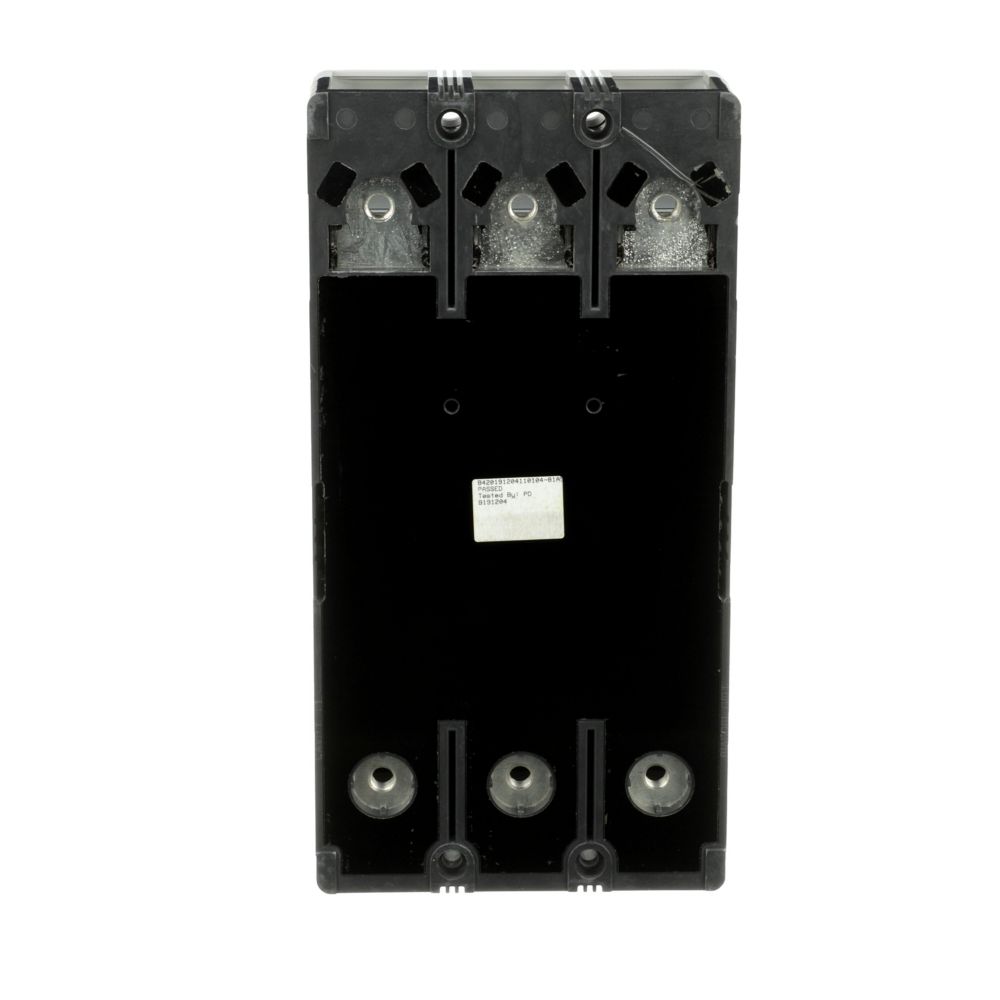

PDG43K0700TFAJ is a Power Defense molded case circuit breaker from Eaton designed for reliable protection in electrical distribution systems.This circuit breaker features a 700 ampere rating, 600 VAC voltage rating, and a three-pole configuration. It uses a thermal-magnetic (T-M) fixed-adjustable trip unit and is part of Eaton's Frame 4 series. The breaker offers a high interrupt rating of 50 kAIC at 480 VAC, suitable for demanding industrial applications. It includes standard line and load terminals and is CCC marked and RoHS compliant.

Key Specifications
• Amperage: 700 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupt Rating: 50 kAIC at 480 VAC
• Frame: 4
• Trip Unit: Thermal-Magnetic Fixed-Adjustable (T-M)
• Mounting Type: Standard line and load terminals
• Certifications: CCC Marked, RoHS Compliant
• Product Weight: 13.2 kg
• Dimensions (H x W x D): 406.4 mm x 209.6 mm x 111.2 mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG43K0700TFAJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667946367
• GTIN : 00786679463673
• Country of Origin : Dominican Republic
• Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
• Weight : 29.436 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 513
