2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG42G0800FNNN

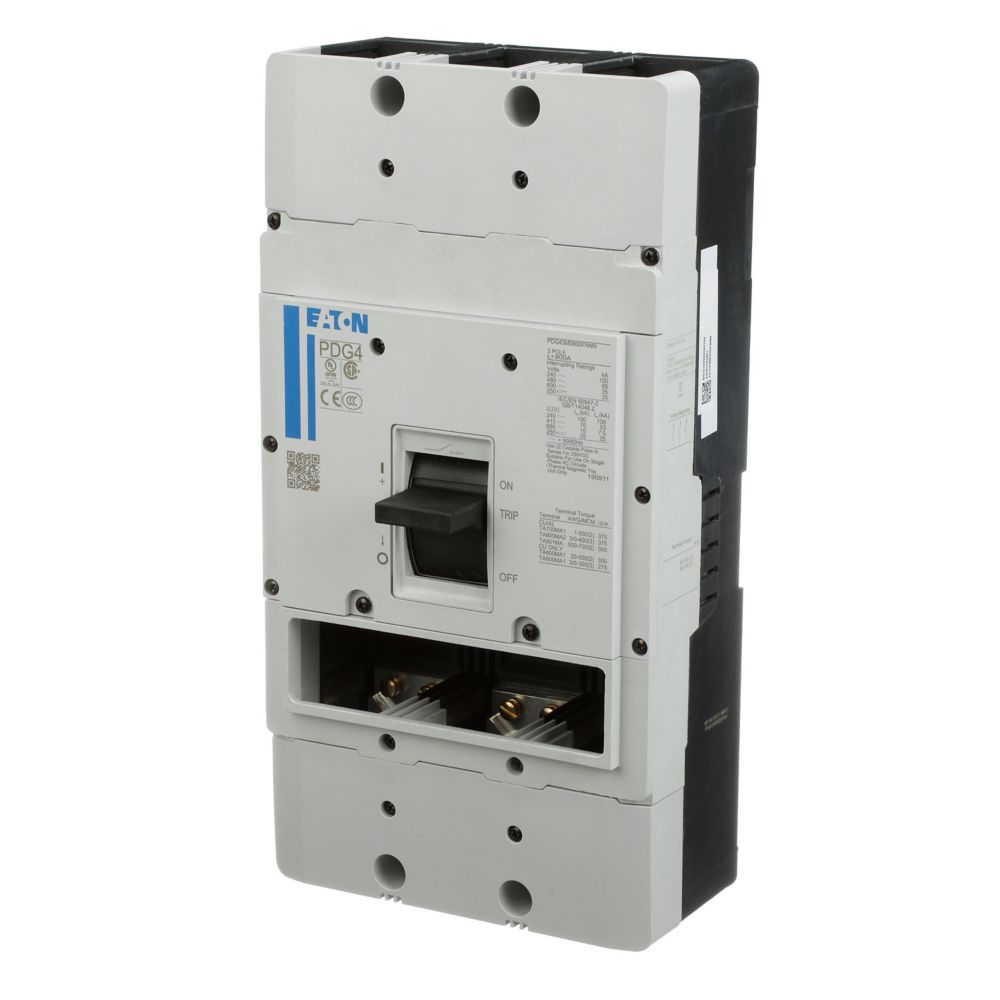

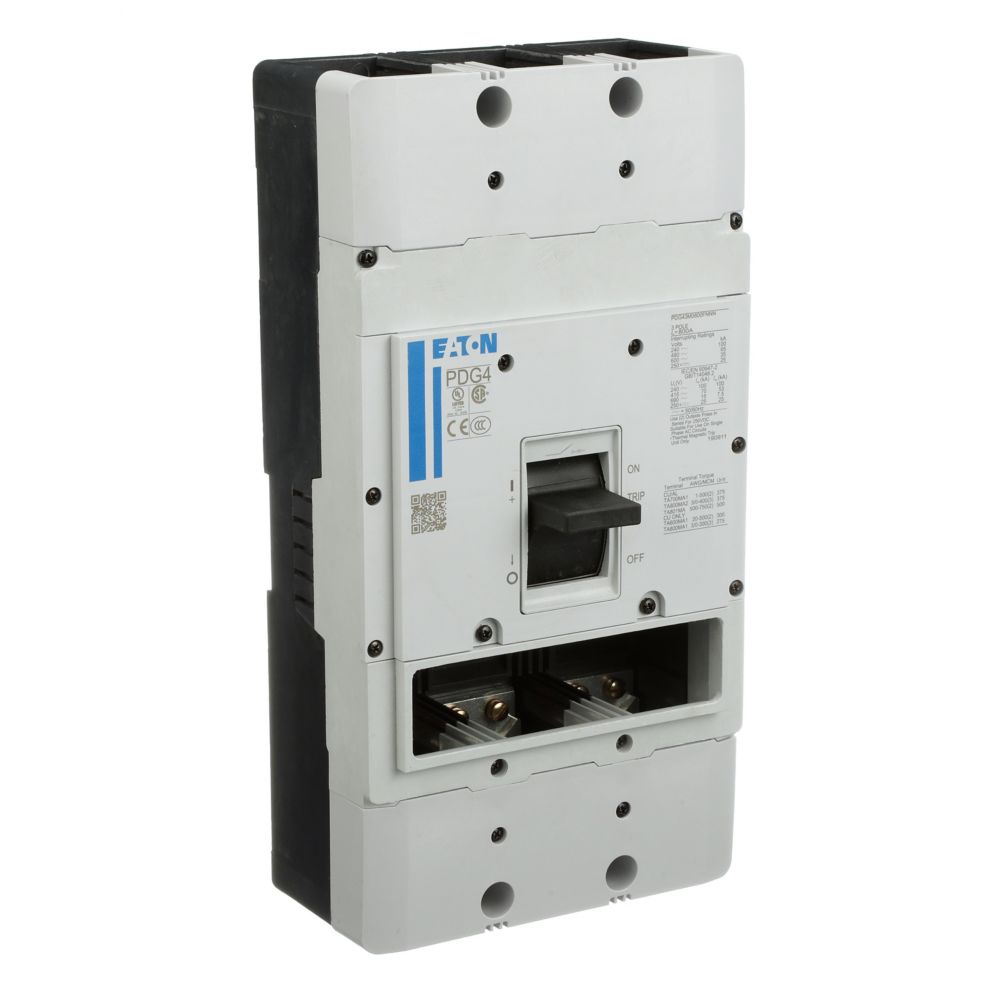

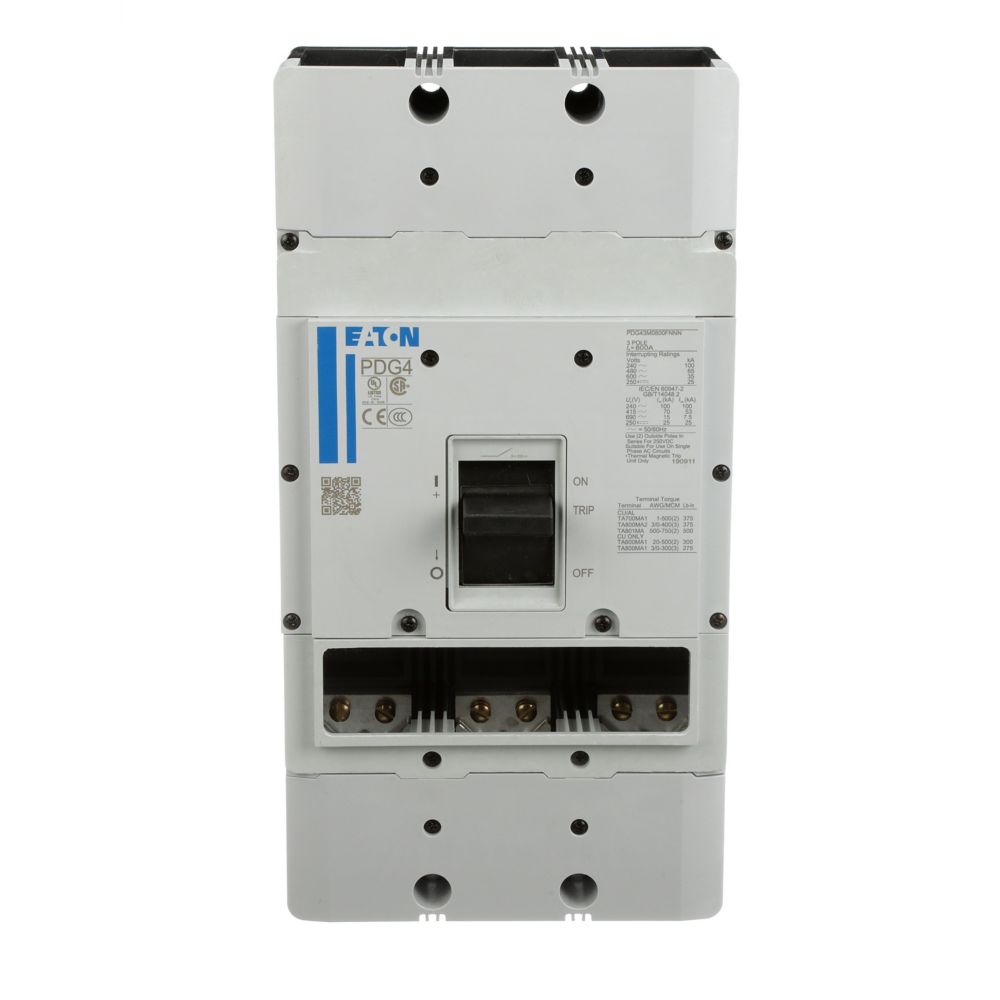

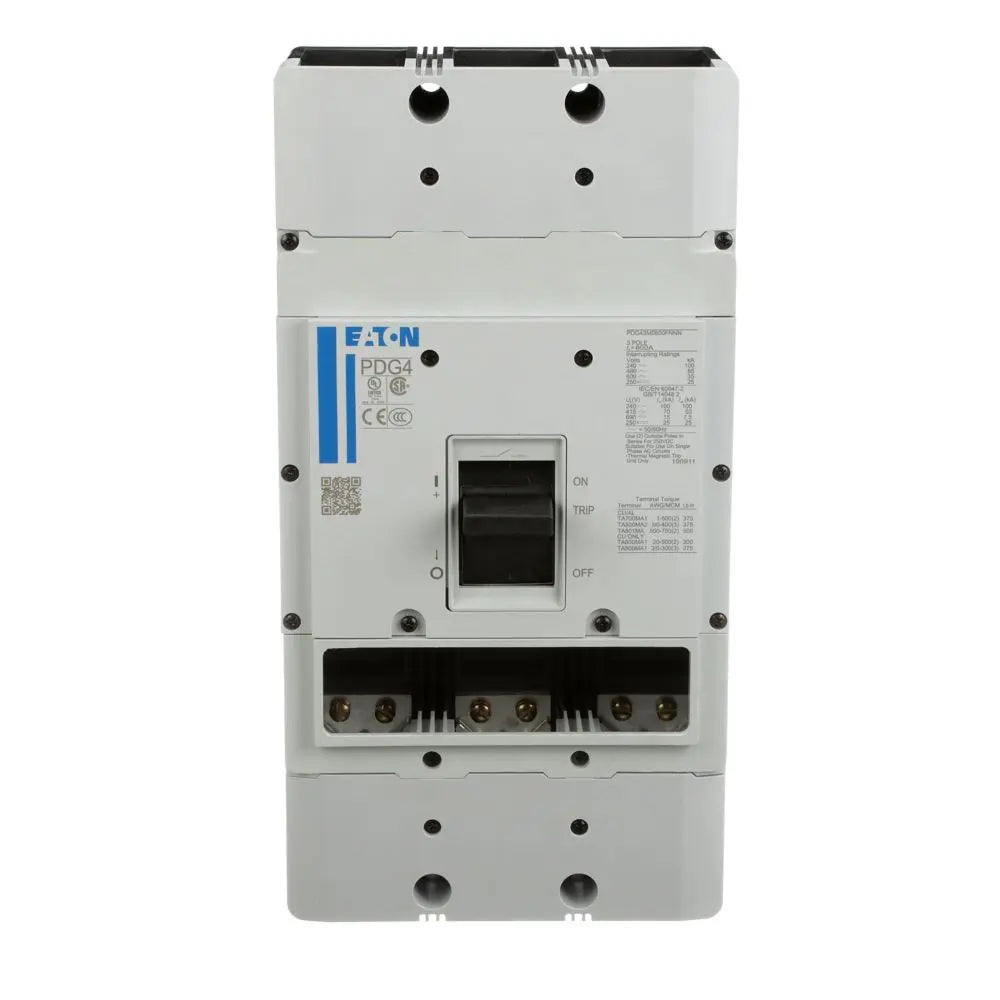

PDG42G0800FNNN is an Eaton Cutler Hammer Power Defense molded case circuit breaker designed for reliable power distribution protection.This 2 pole circuit breaker features an 800 ampere rating, 600 volt AC maximum voltage rating, and a 35kA interrupting rating at 480 volts. It is a Frame 4 type breaker with thermal-magnetic trip unit technology and is supplied as frame only with no terminals included.
- Manufacturer: Eaton Cutler Hammer
- Part Number: PDG42G0800FNNN
- Amperage: 800 A
- Voltage Rating: 600 Vac
- Poles: 2
- Interrupt Rating: 35 kAIC at 480 Vac
- Frame Size: 4 (Power Defense PD4 Global)
- Trip Unit: Thermal-magnetic
- Mounting Type: Frame only, no terminals
- Certifications: Industry standard compliant
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: PDG42G0800FNNN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 800
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679363324
- Dimensions : 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
- Weight : 26.76
