Product Info
- Manufacturer:Eaton
- Sub-Category:Trip Units & Programmers
Description
PDG3XTFA30100

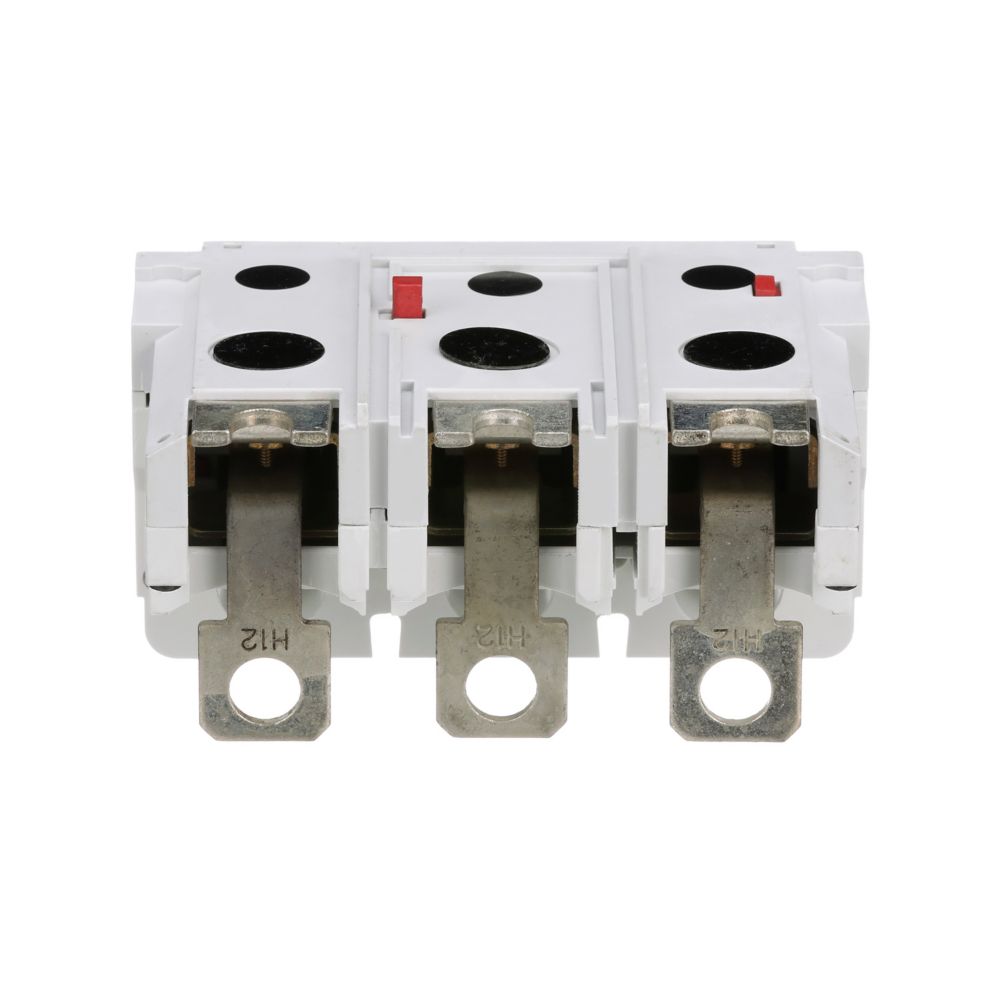

PDG3XTFA30100 is an Eaton Power Defense molded case circuit breaker accessory trip unit designed for three-pole applications at 100 amperes and 600 volts maximum. This trip unit is compatible with the PD3 Global circuit breaker platform and Frame 3 (Frame J-K) configurations, providing reliable overcurrent protection and adjustable trip settings for industrial and commercial power distribution systems. The unit features a compact design measuring 4.5 inches in height, 5.2 inches in width, and 8.5 inches in depth, making it suitable for retrofit and replacement applications in existing electrical panels and distribution equipment.
- Part Number: PDG3XTFA30100
- Manufacturer: Eaton
- Series: Power Defense
- Circuit Breaker Type: PD3 Global
- Amperage Rating: 100 A
- Voltage Rating: 600 V
- Number of Poles: Three-pole
- Frame Size: Frame 3 (Frame J-K)
- Product Type: Trip Unit
- Dimensions: 4.5 in H x 5.2 in W x 8.5 in D
- Warranty: 1 Year
Specifications
- Part Number: PDG3XTFA30100
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Poles : 3
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Compatible Frames : PDG Frame 3
Product Data
- UPC : 786679588741
- GTIN : 00786679588741
- Dimensions : 8.5 in x 4.5 in x 5.25 in (Length/Depth x Height x Width)
- Weight : 2.2
