Product Info
- Manufacturer:Eaton
- Sub-Category:Trip Units & Programmers
Description
PDG3XTFA20300

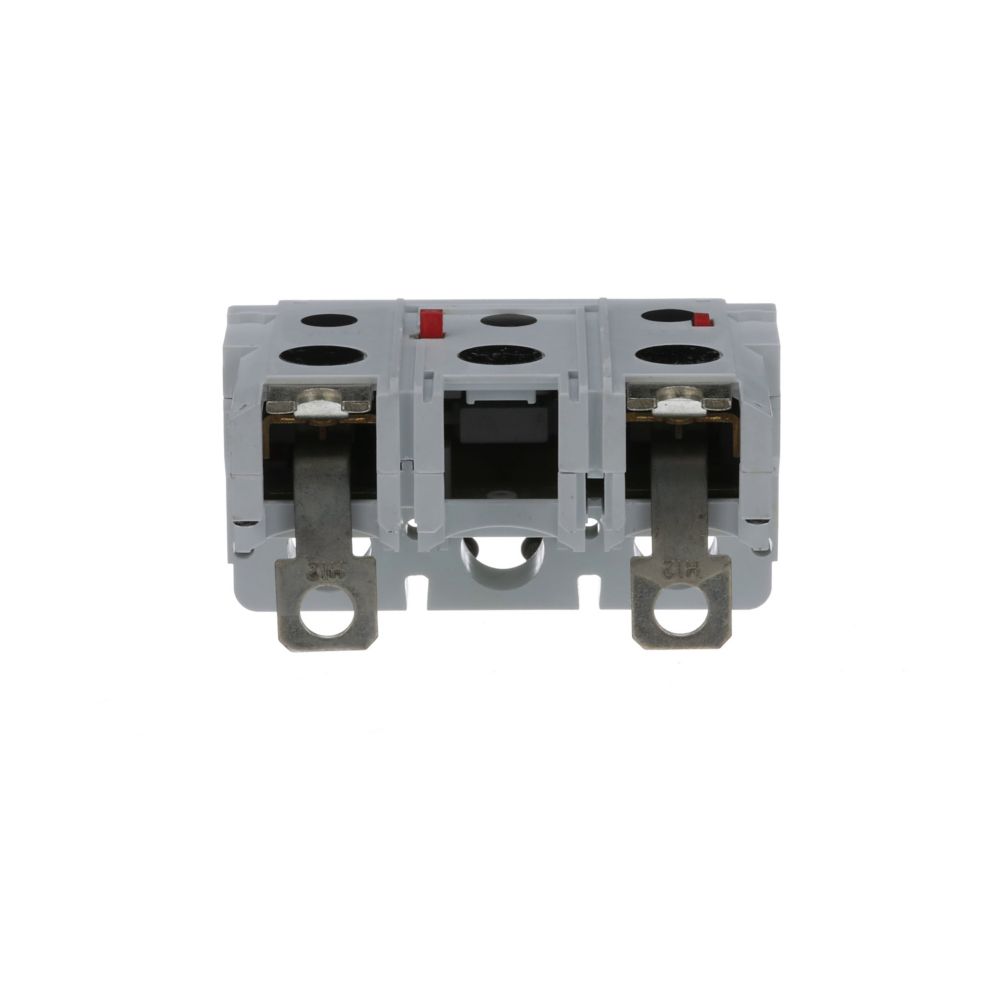

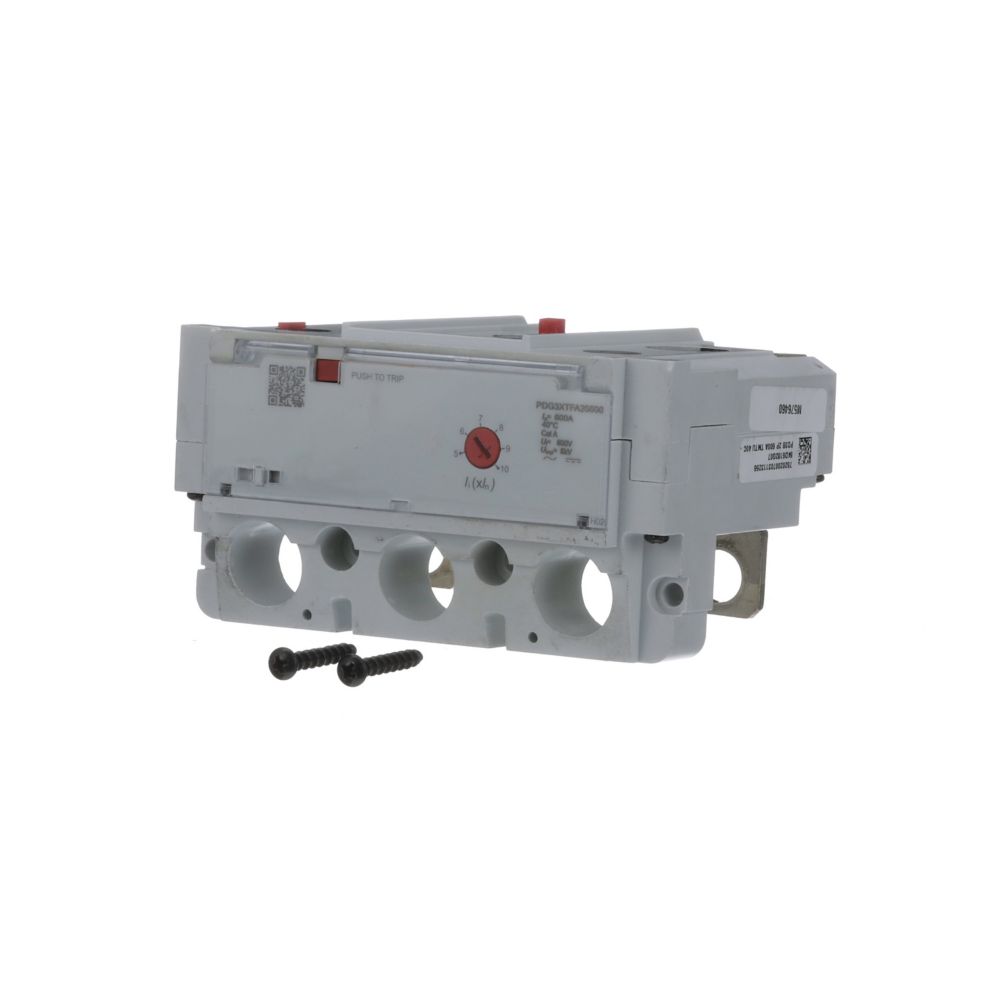

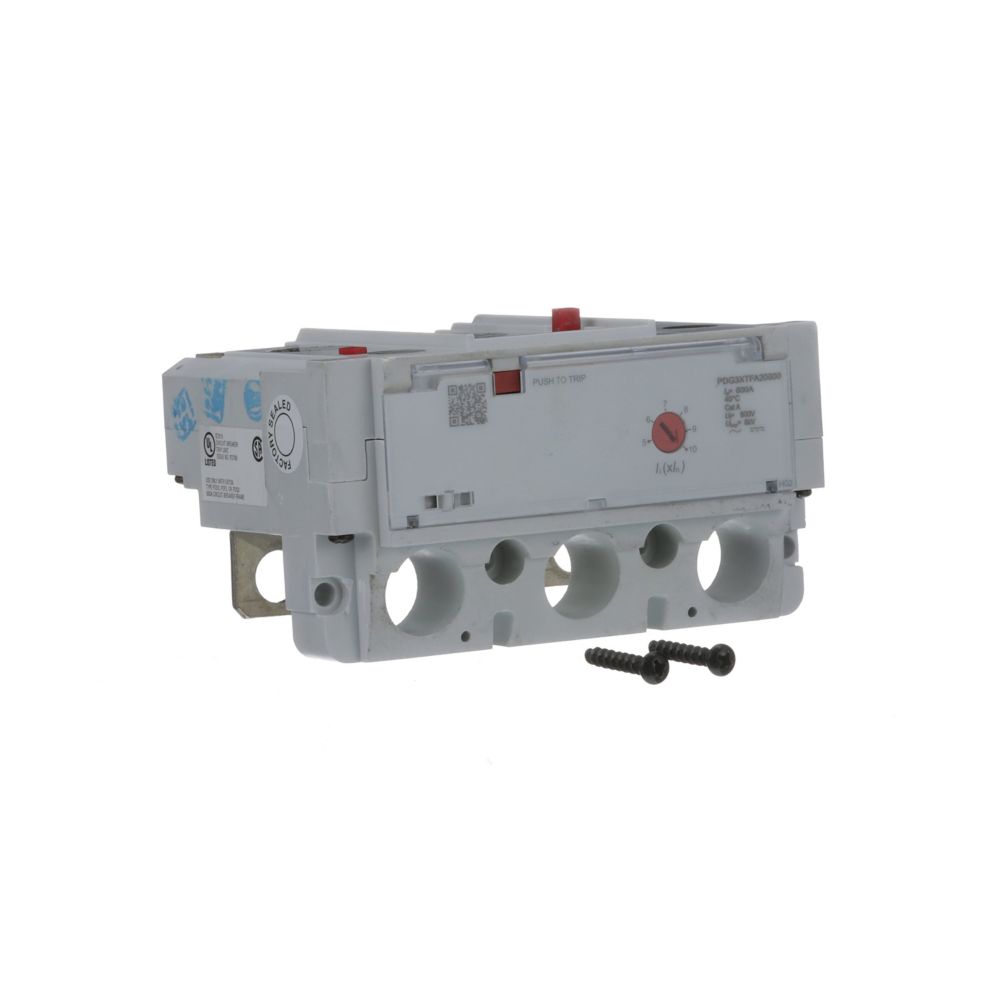

PDG3XTFA20300 is a Cutler Hammer Power Defense trip unit designed for reliable circuit breaker protection.This trip unit is compatible with Power Defense Frame J-K circuit breakers, featuring a 300 ampere rating, 2 poles, and a maximum voltage of 600 volts. It provides thermal magnetic protection with long-time and instantaneous trip capabilities, ensuring effective circuit interruption and safety. The unit is engineered for use in industrial and commercial electrical distribution systems.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 300 A
- Voltage: 600 V max
- Poles: 2
- Frame Size: J-K
- Series: Power Defense
- Protection Type: Thermal Magnetic
- Trip Unit Type: Adjustable Long-Time and Instantaneous
- Mounting Type: Compatible with molded case breakers
- Interrupt Rating: Per Power Defense specifications
- Certifications: Eaton standard certifications
Specifications
- Part Number: PDG3XTFA20300
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Poles : 2
- Functions : LI - Long-Time and Instantaneous
- Amperage Maximum : 300
- Protection : Thermal Magnetic
- Compatible Frames : PDG Frame 3
Product Data
- UPC : 786679589052
- GTIN : 00786679589052
- Dimensions : 8.5 in x 4 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 2.03
