PDG3XPXR30600B2N Eaton Power Defense PXR10 LSI Trip Unit, 600A 3-Pole, Frame 3

PDG3XPXR30600B2N

PDG3XPXR30600B2N Eaton Power Defense PXR10 LSI Trip Unit, 600A 3-Pole, Frame 3

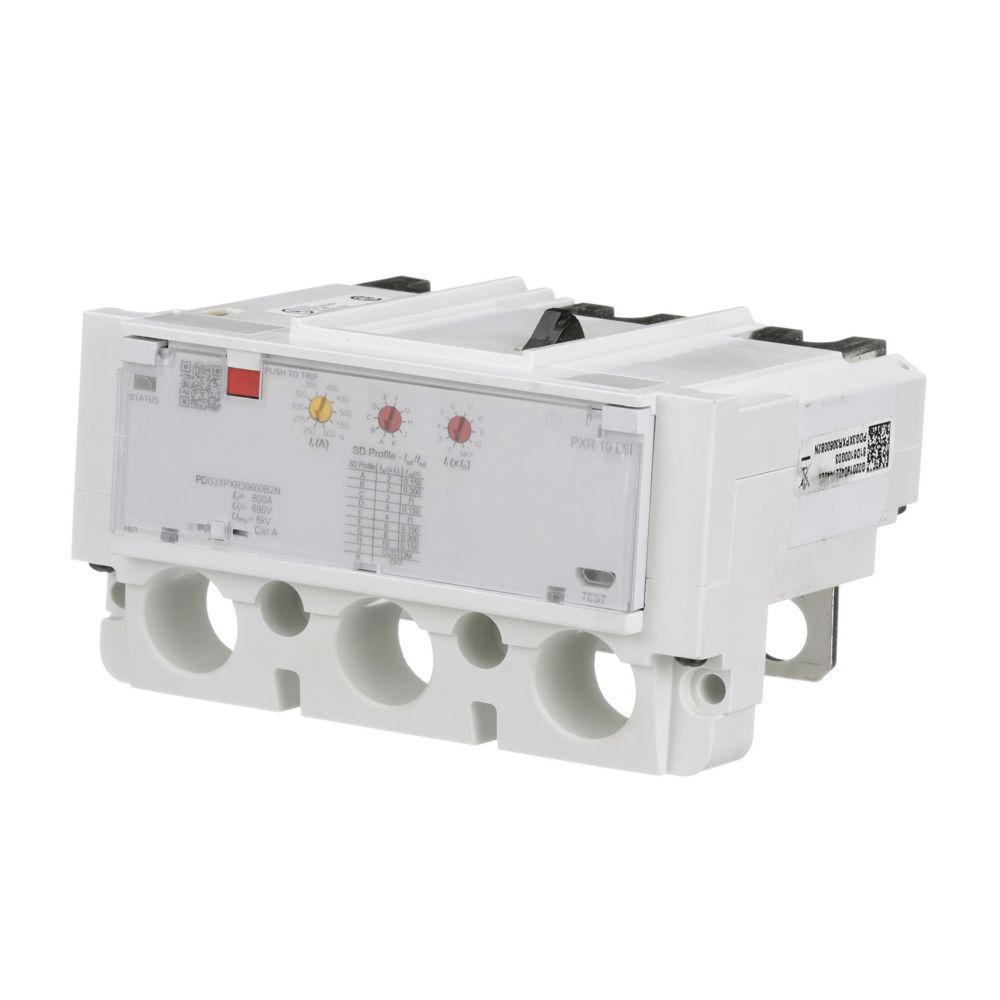

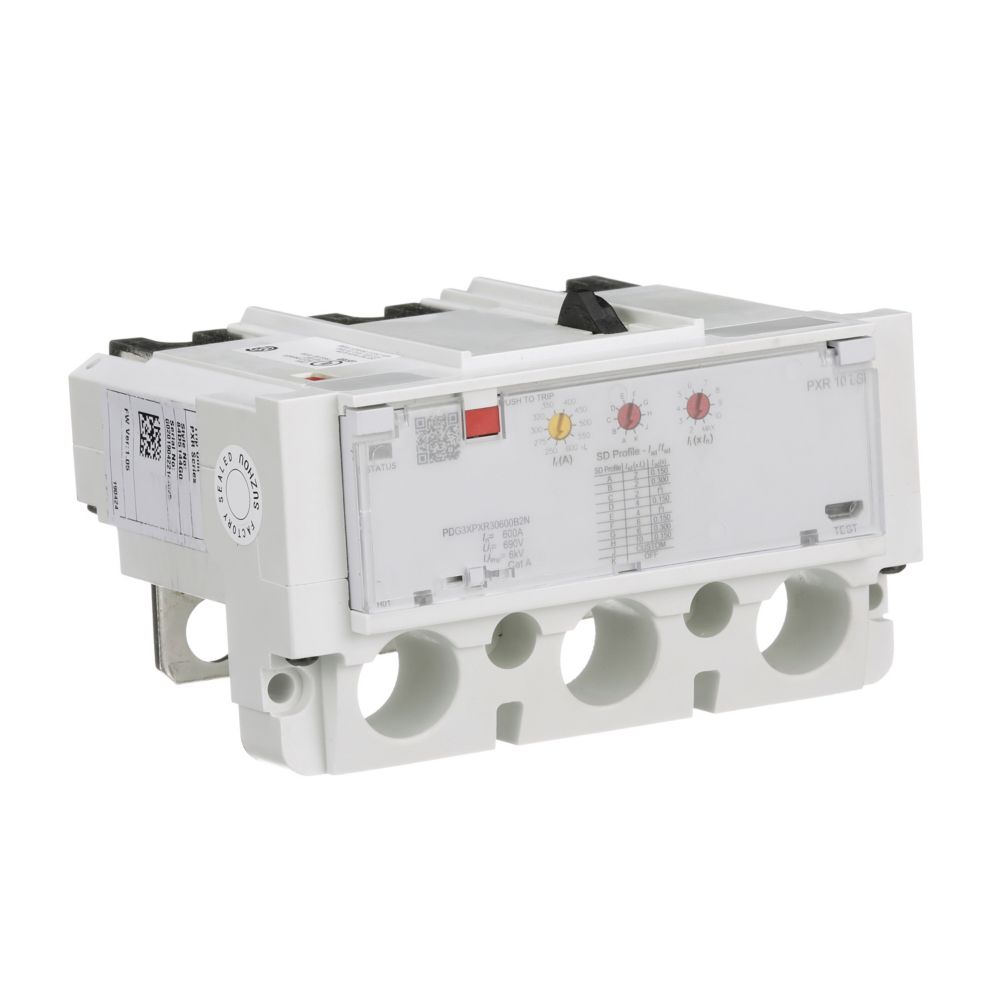

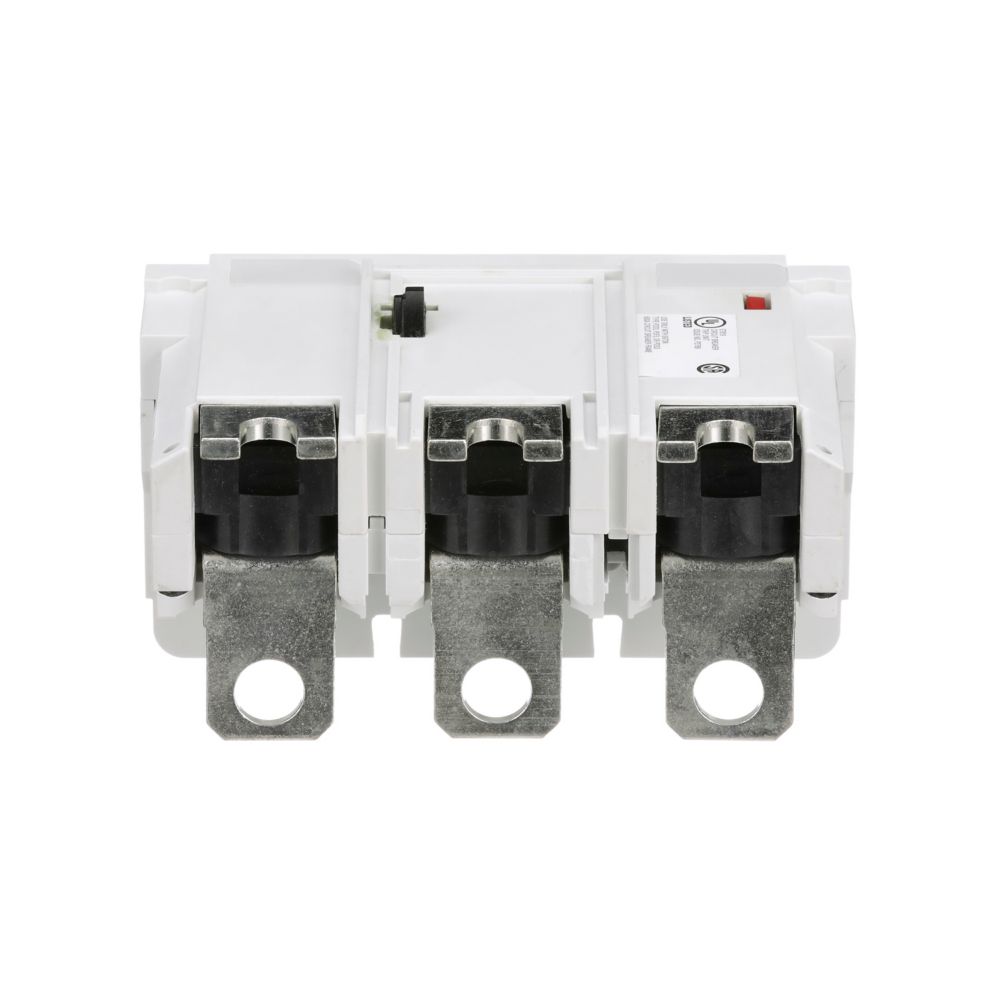

The Eaton PDG3XPXR30600B2N is a 600 A, three-pole PXR10 LSI electronic trip unit (ETU) for Power Defense Frame 3 (PD3 Global, J–K frame) molded case circuit breakers. Listed to UL 489 and IEC 60947-2, CSA certified, and CCC marked, it delivers adjustable long-delay, short-delay, and instantaneous (LSI) overcurrent protection rated to 600 V. As a field-replaceable accessory, it is configured via three front-panel rotary switches or Eaton Power Xpert Protection Manager (PXPM) software over USB, with integral over-temperature protection. At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Replacement of a failed or superseded trip unit in a Power Defense Frame 3 (J–K) MCCB
• Reconfiguration of an existing Frame 3 breaker to a 600 A LSI protection scheme
• Feeder, panelboard, and switchboard overcurrent protection in commercial and industrial distribution
• Applications requiring adjustable long-, short-, and instantaneous-delay coordination

Key Features

• LSI protection profile: Adjustable long-delay, short-delay, and instantaneous pickup for selective coordination.

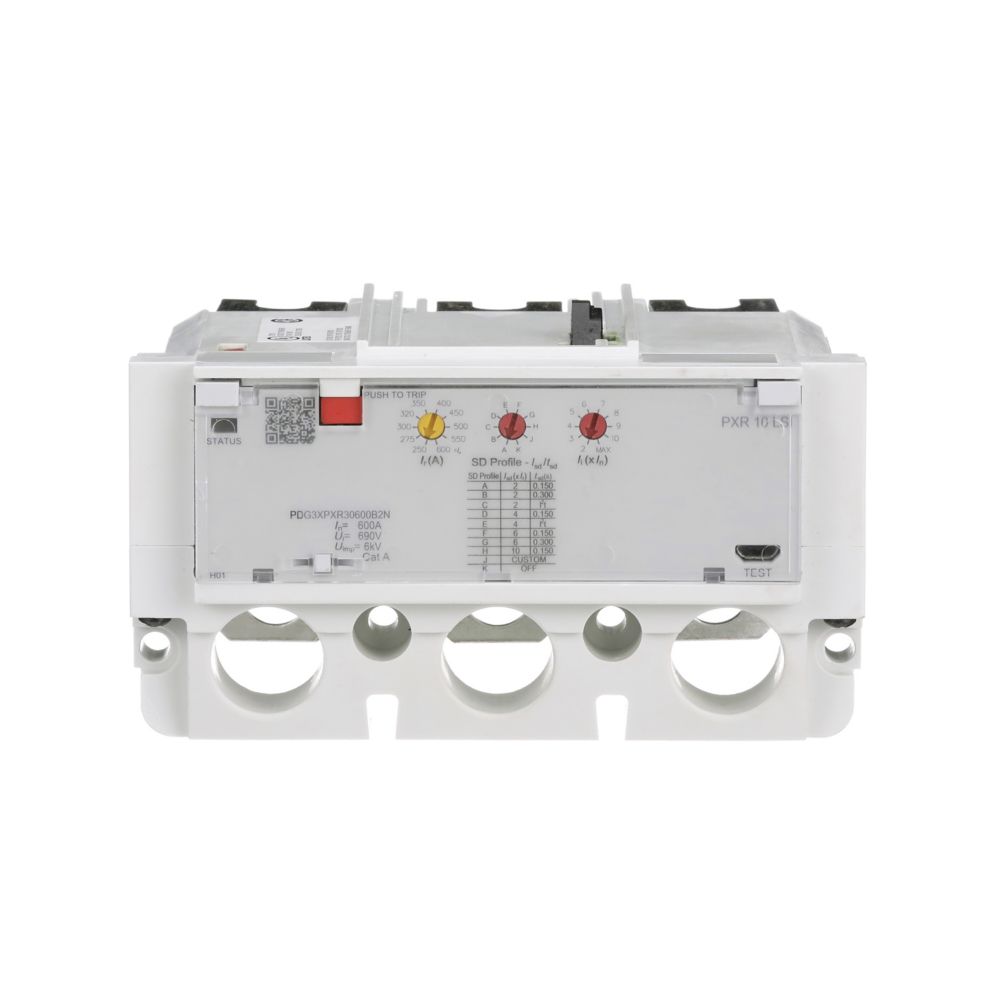

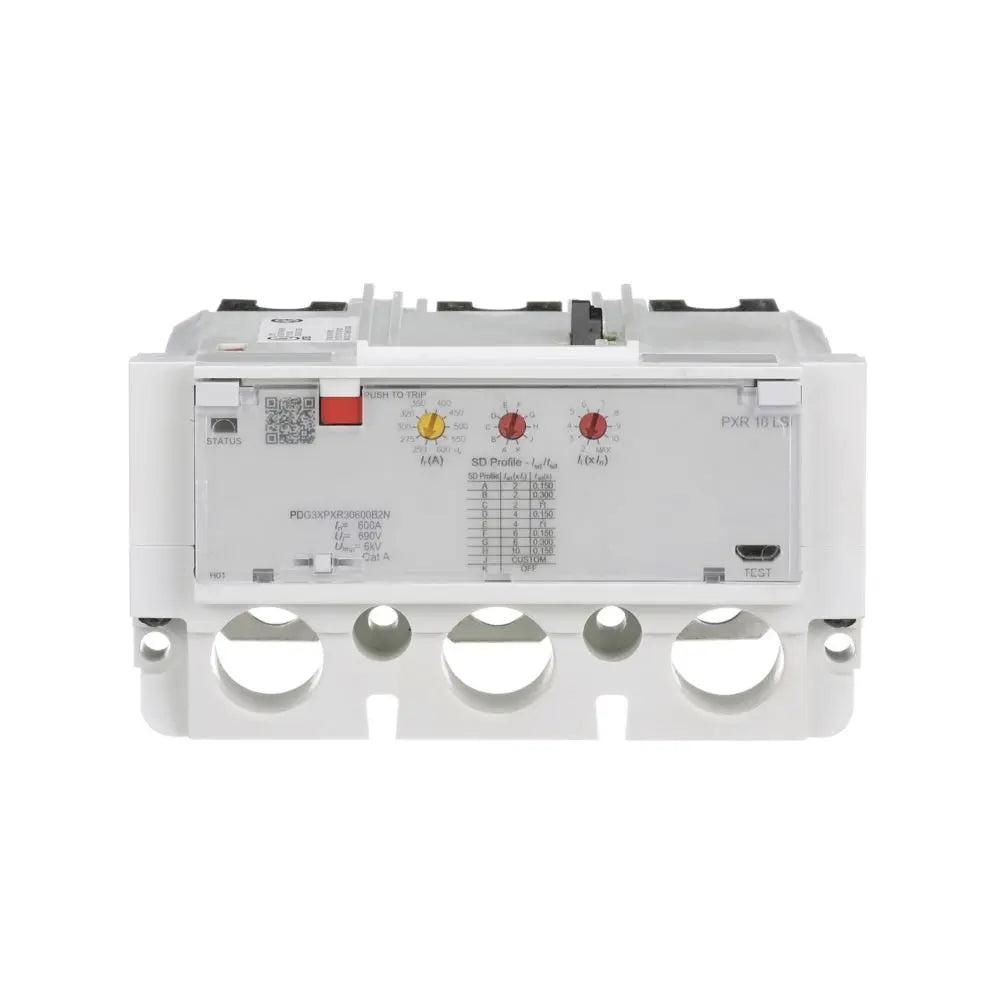

• Front-panel configuration: Three rotary switches set rated current (Ir) and short-circuit behavior.
• PXPM software support: Detailed setup via Power Xpert Protection Manager over USB.
• Over-temperature protection: Trips the breaker if internal ETU temperature exceeds 105°C (220°F).
• Field-replaceable: Installs into Power Defense Frame 3 breakers per Eaton instruction IL012157EN.
• Global ratings: UL 489, IEC 60947-2, CSA, and CCC on one platform.

Specifications

• Catalog Number: PDG3XPXR30600B2N
• Product Type: Electronic trip unit (accessory)
• Series: Eaton Power Defense (PD3 Global)
• Trip Type: PXR10 LSI
• Amperage Rating: 600 A
• Voltage Rating: 600 V
• Number of Poles: Three-pole
• Frame: Frame 3 (Frame size J–K)
• Certifications: UL 489, IEC 60947-2, CSA, CCC Marked
• Compliance: RoHS
• Warranty: Eaton Selling Policy 25-000 (1 yr from install / 18 mo from shipment)

Product Identification

• UPC/GTIN: 786679610039
• Dimensions: 5.25 in (W) × 4.5 in (H) × 4.5 in (D)
• Weight: 2.7 lb

FAQ

Is the PDG3XPXR30600B2N a complete circuit breaker? No. It is a PXR10 LSI electronic trip unit—a field-replaceable accessory that installs into a Power Defense Frame 3 molded case circuit breaker.

What protection functions does it provide? Adjustable long-dela

Specifications

• Part Number: PDG3XPXR30600B2N
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Poles : 3
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 600
• Protection : Solid State
• Compatible Frames : PDG,PDF Frame 3

Product Data

• UPC : 786679610039
• GTIN : 00786679610039
• Dimensions : 4.5 in x 4.5 in x 5.25 in (Length/Depth x Height x Width)
• Weight : 2.7 lb
