PDG33P0600TFAN - Eaton PDG3 3-Pole 600A 600V Molded Case Circuit Breaker FXADJ TMTU 100kAIC 480V

PDG33P0600TFAN

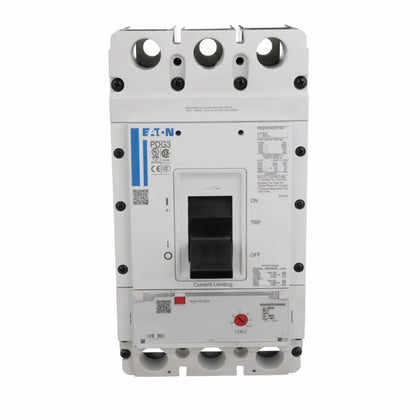

PDG33P0600TFAN is a 3-pole, 600 amp molded case circuit breaker from Eaton's PDG3 series designed for panel mounting applications.This circuit breaker features a fixed thermal and adjustable magnetic trip unit (FXADJ TMTU) providing reliable protection and adjustable trip settings. It has a 600 Vac voltage rating with an interrupt rating of 100kA at 480V, suitable for demanding industrial and commercial power distribution needs. The breaker is UL 489 listed and carries CE and CSA certifications, ensuring compliance with key safety standards.

• Manufacturer: Eaton (Cutler Hammer Division)
• Series: PDG3
• Poles: 3
• Amperage Rating: 600 A
• Voltage Rating: 600 Vac
• Interrupt Rating: 100kA at 480V
• Trip Unit: Fixed Thermal / Adjustable Magnetic (FXADJ TMTU)
• Mounting Type: Panel Mount
• UL Standard: UL 489
• Certifications: CE, CSA, UL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33P0600TFAN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667928654
• GTIN : 00786679286548
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 12.5103 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
