Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33M0600TFAN

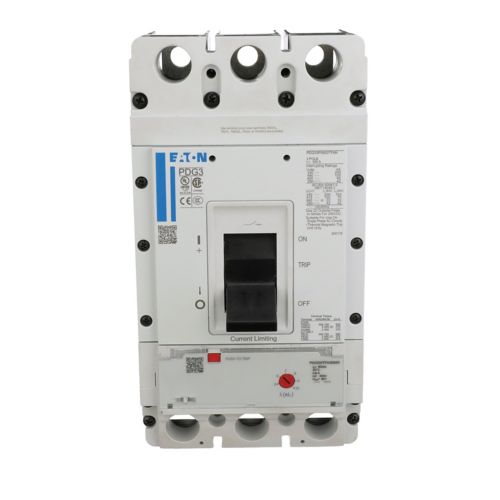

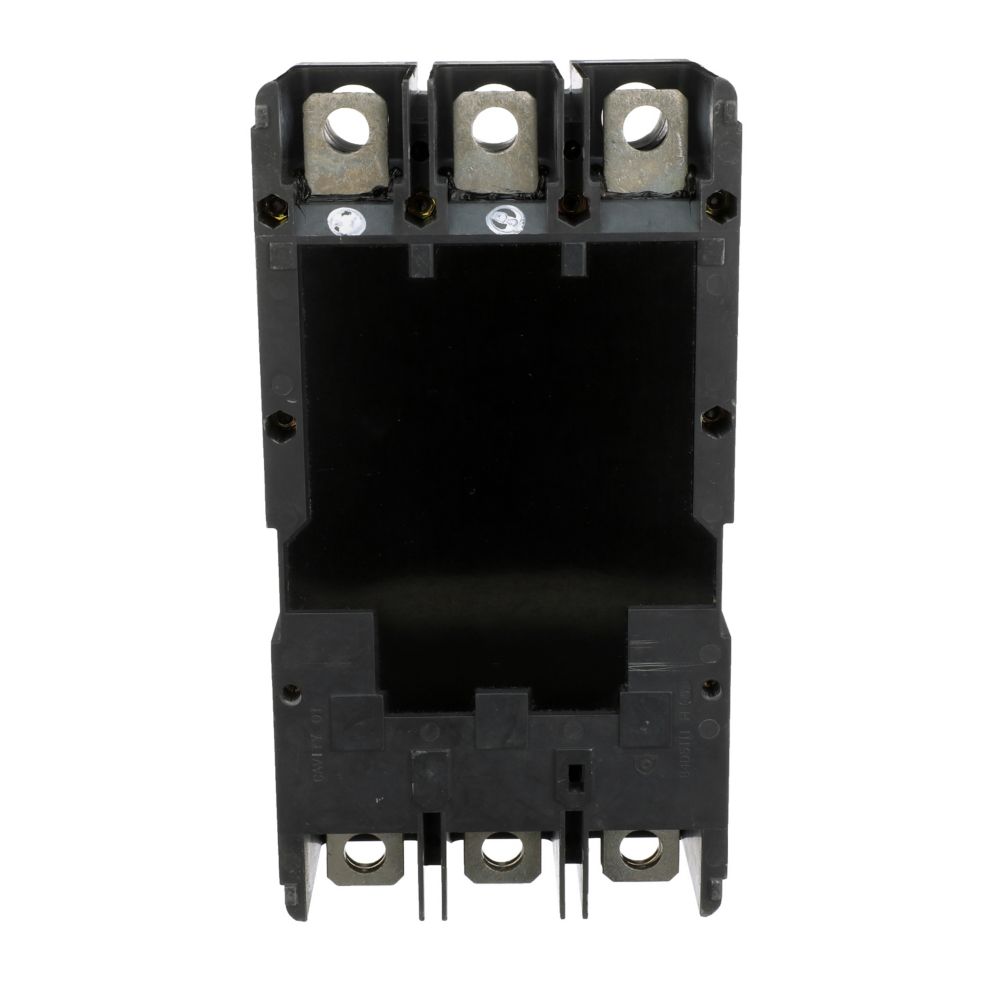

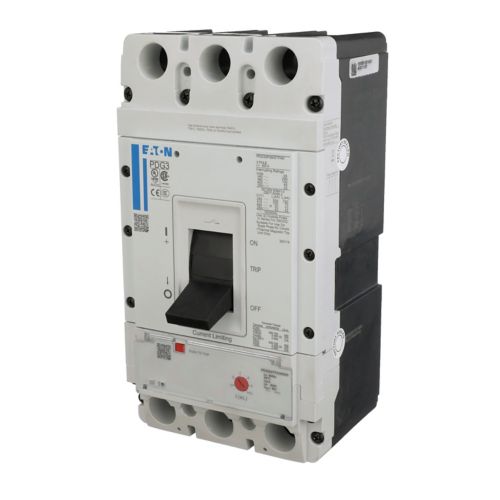

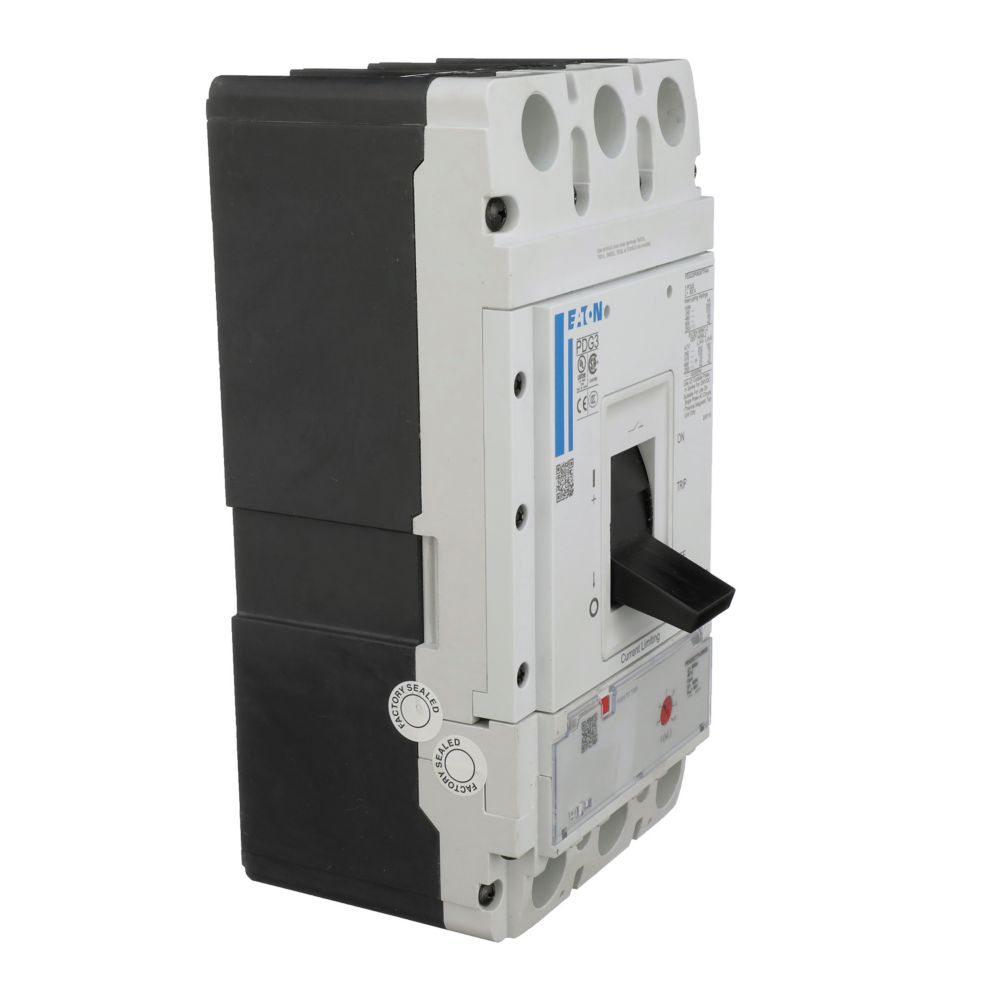

PDG33M0600TFAN is a 600 Amp, 600 VAC, 3-pole molded case circuit breaker from Eaton's Power Defense series designed for reliable circuit protection.This Eaton PDG33M0600TFAN breaker features a Frame 3 design with a 65kA interrupt rating at 480V, thermal magnetic trip unit, and no lugs for load side connections only. It is globally rated and suitable for industrial and commercial power distribution applications.
- Amperage: 600A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: PDG3 (Frame 3)
- Interrupt Rating: 65kA at 480V, 35kA at 600V
- Trip Unit: Thermal Magnetic Adjustable
- Mounting: Molded Case Circuit Breaker
- No Lugs (Load Side Lugs Only)
- Globally Rated
- Weight: Approx. 13.75 lbs
- Dimensions: 12.8 x 7.1 x 8.2 inches
- Certifications: Meets Eaton standards for industrial circuit protection
Specifications
- Part Number: PDG33M0600TFAN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679292594
- Country of Origin : Dominican Republic
- Dimensions : 12.8 in x 7.1 in x 8.2 in (Length/Depth x Height x Width)
- Weight : 13.75
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
