PDG33M0600TFAJ Eaton Power Defense 600A 3-Pole 65kA Molded Case Circuit Breaker

The Eaton PDG33M0600TFAJ is a Power Defense (PD3 Global) Frame 3, three-pole molded case circuit breaker rated 600A at 600 Vac, with a 65 kAIC interrupting rating at 480 Vac. It is listed to UL 489 and certified to IEC 60947-2, CSA, and CCC, qualifying it for inclusion in specification and submittal packages for commercial and industrial distribution. At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

This unit uses a thermal-magnetic trip unit providing fixed long-time (thermal) and adjustable instantaneous (magnetic) protection. It ships with standard line and load mechanical lug terminals (terminal reference PDG3X3TA630) and accepts field-installable accessories for auxiliary, alarm, shunt trip, and undervoltage functions.

Common Applications

• Main or feeder protection in switchboards and panelboards
• Industrial and commercial power distribution
• Motor and large-load feeder circuits
• OEM machinery and equipment service entrance
• High-fault environments requiring 65 kAIC at 480 Vac

Key Features

• Frame and platform: Power Defense PD3 Global, Frame 3 complete breaker.
• Trip unit: Thermal-magnetic, fixed long-time and adjustable instantaneous (LI).
• Interrupting capacity: 65 kAIC at 480 Vac; 100 kAIC at 240 Vac; 22 kAIC at 250 Vdc.
• Certifications: UL 489 listed, IEC 60947-2, CSA, CCC marked, RoHS compliant.
• Terminals: Standard line and load mechanical lug terminals (PDG3X3TA630).
• Accessory ready: Field-installable aux, alarm, shunt trip, UVR, and handle mechanisms.

Specifications

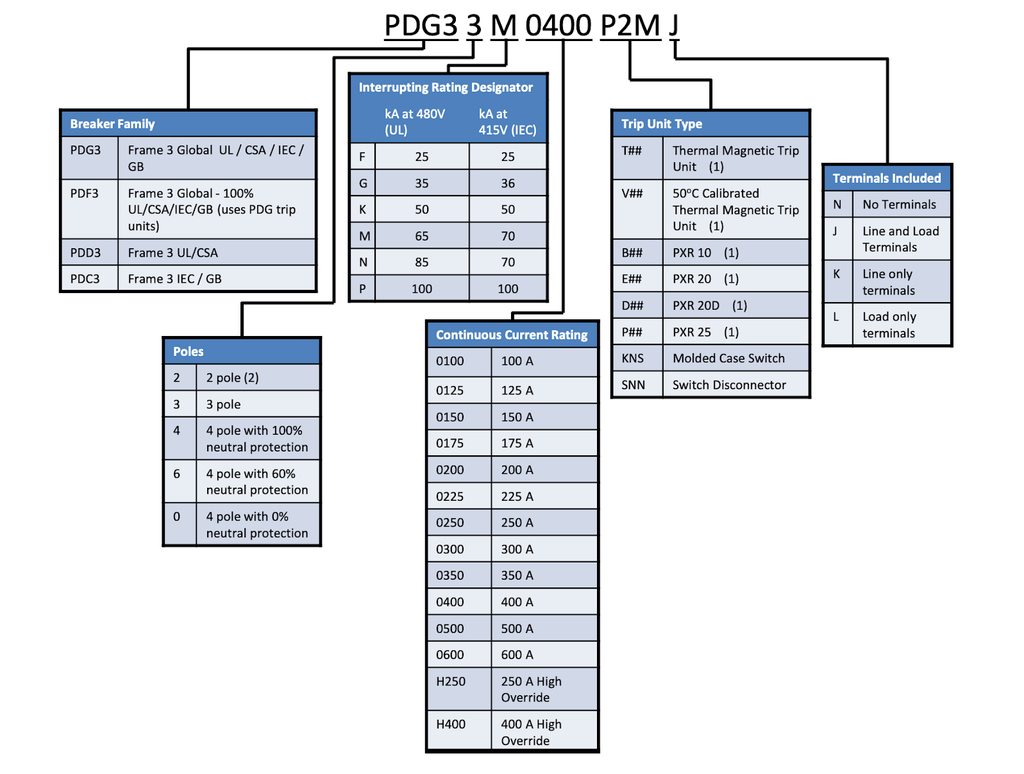

• Catalog number: PDG33M0600TFAJ
• Manufacturer: Eaton
• Amperage rating: 600 A
• Poles: Three-pole
• Voltage rating: 600 Vac
• Interrupting rating: 65 kAIC at 480 Vac
• Trip type: Thermal-magnetic (fixed-adjustable)
• Frame: 3 (PD3 Global)
• Application rating: Standard; 100 percent-rated equivalent is PDF33M0600TFAJ

Product Identification

• Dimensions: 10.12 in H x 5.47 in W x 4.30 in D
• Weight: 12.37 lb (5.61 kg)
• UPC: 786679570272

FAQ

What is the PDG33M0600TFAJ? It is an Eaton Power Defense Frame 3, three-pole, 600A molded case circuit breaker rated 65 kAIC at 480 Vac with a thermal-magnetic trip unit.

What is its interrupting rating? 65 kAIC at 480 Vac, 100 kAIC at 240 Vac, and 22 kAIC at 250 Vdc.

Is it UL listed? Yes. It is listed to UL 489 and also certified to IEC 60947-2, CSA, and CCC.

What trip functions does it provide? Fixed long-time (thermal) and adjustable insta

Specifications

• Part Number: PDG33M0600TFAJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679570272
• GTIN : 00786679570272
• Country of Origin : Dominican Republic
• Dimensions : 10.12 in H x 5.47 in W x 4.30 in D
• Weight : 12.37 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
