Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33M0600FNNN

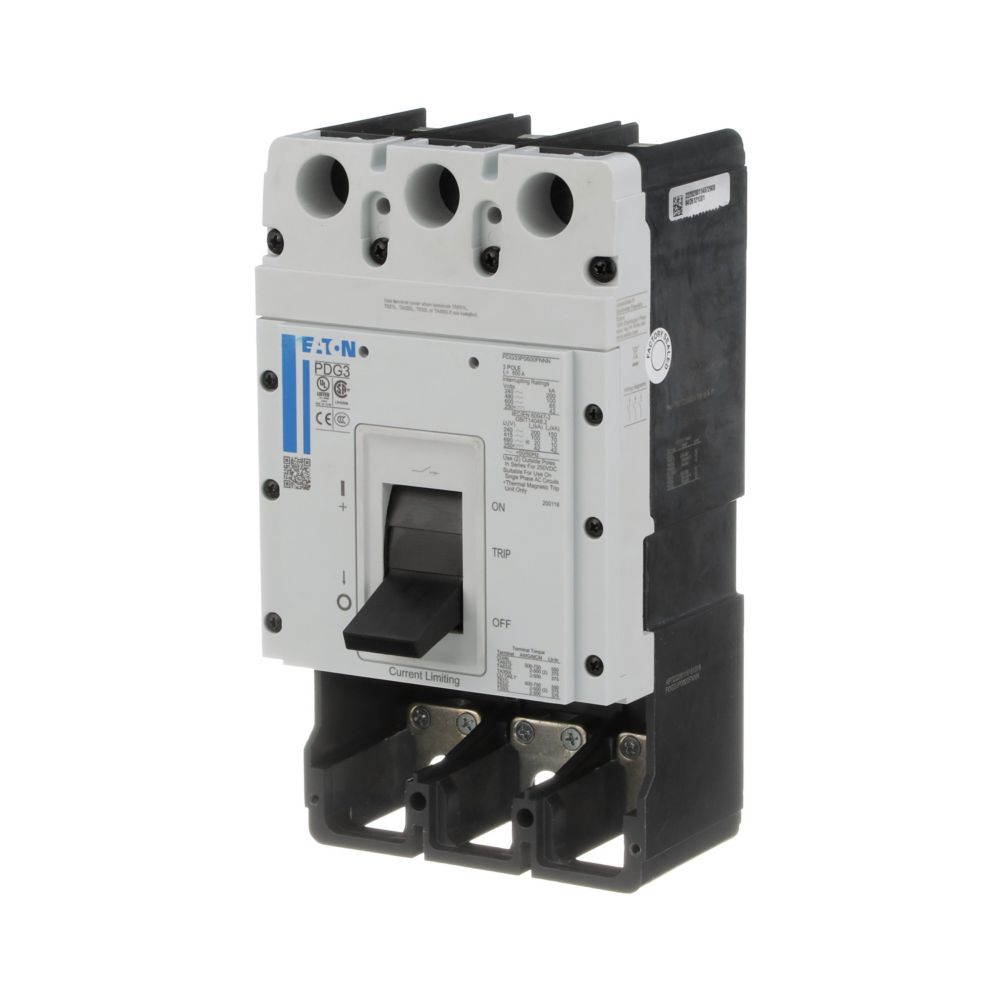

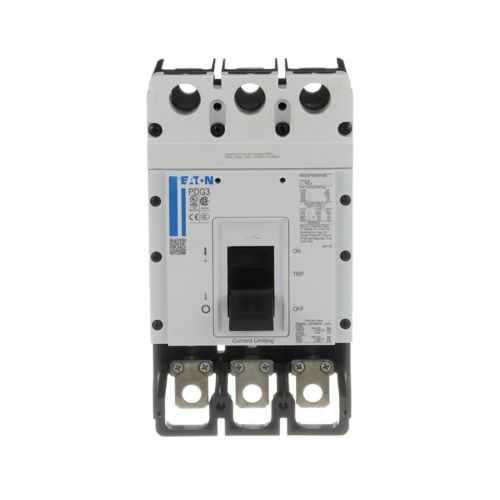

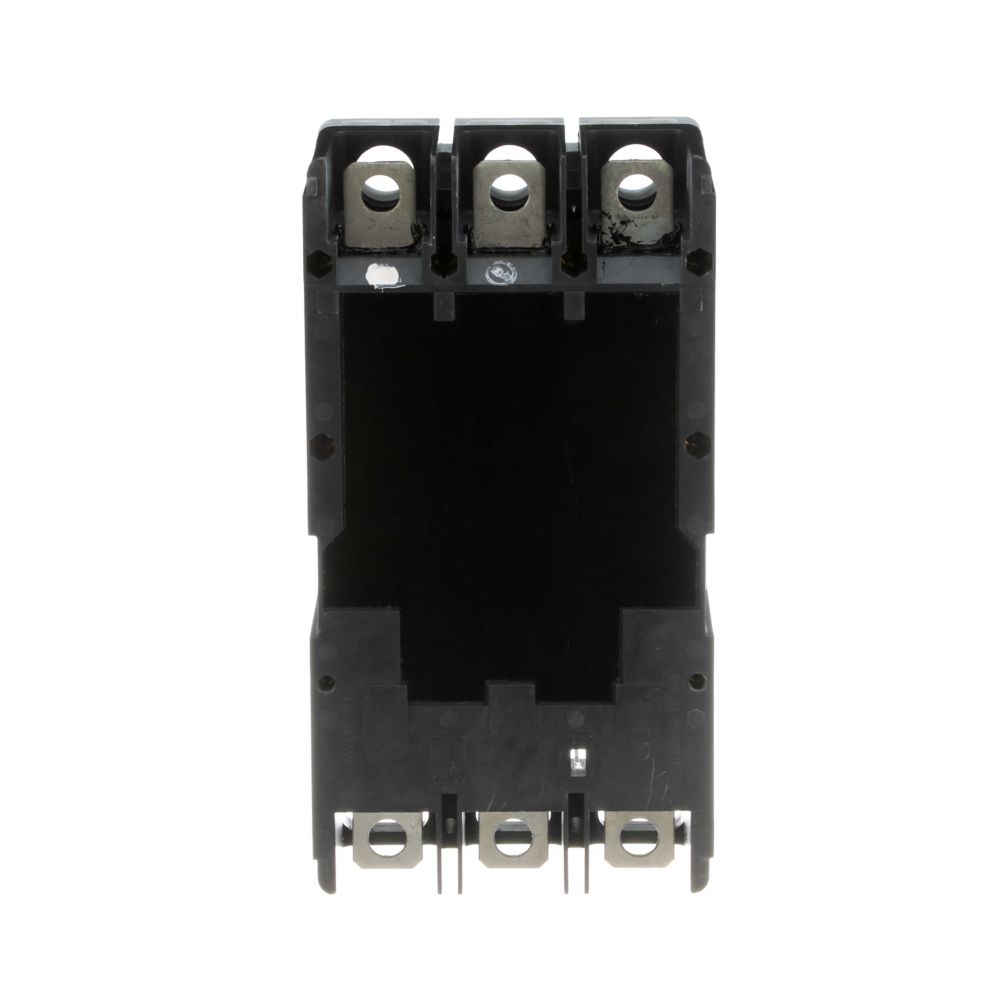

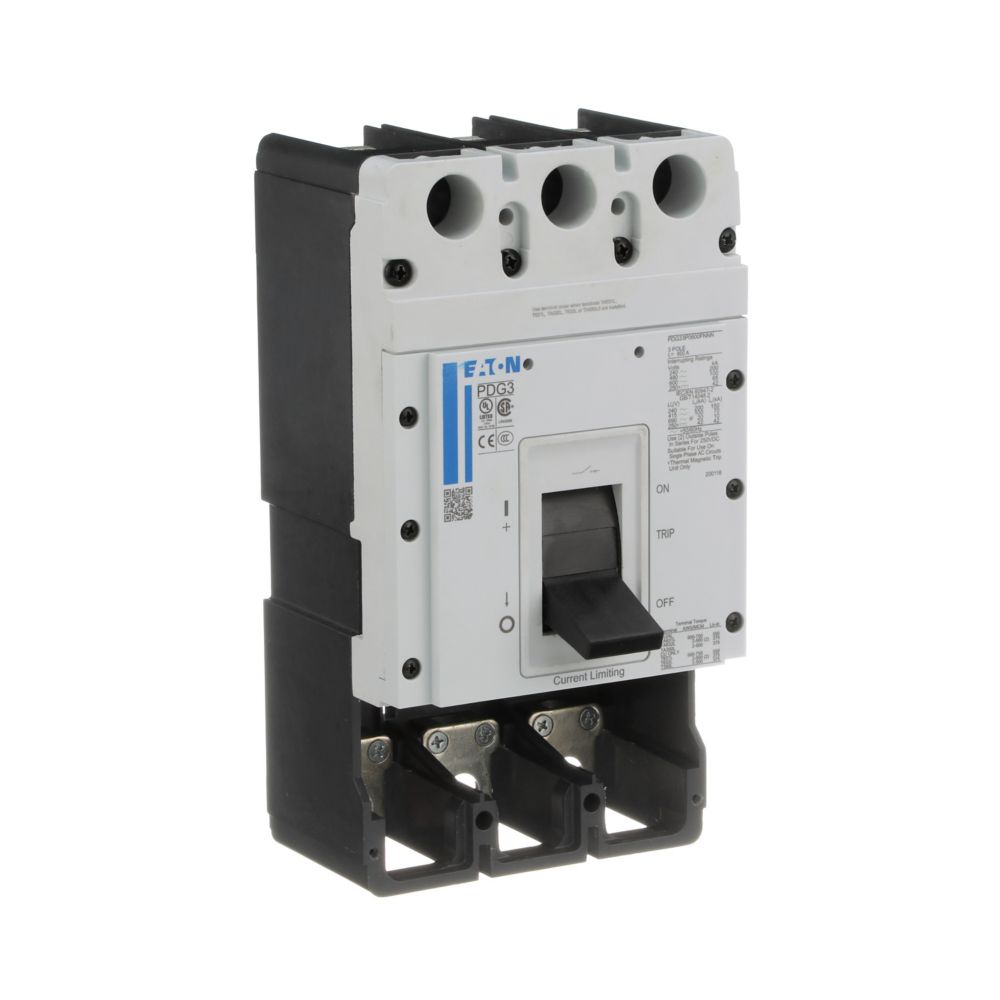

PDG33M0600FNNN is a three-pole, 600A molded case circuit breaker from Eaton's Power Defense series, designed for global applications with a frame-only configuration and no terminals.Engineered for high reliability, this breaker features a 600V AC rating, 65kA interrupt capacity at 480V, and is suitable for industrial and commercial power distribution systems. The frame-only design allows for flexible installation and integration into various panel configurations.
- Part Number: PDG33M0600FNNN
- Manufacturer: Eaton - Cutler Hammer
- Series: Power Defense
- Frame: Frame 3
- Poles: 3
- Amperage: 600A
- Voltage: 600V AC
- Interrupt Rating: 65kA @ 480V
- Mounting Type: Frame Only (No Terminals)
- Connection: Bolt-On
- Certifications: CSA, UL 489, CCC, IEC 60947-2, RoHS Compliant
- Warranty: 1 year from installation or 18 months from shipment
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: PDG33M0600FNNN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 78667922213
- GTIN : 00786679222133
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.03698072
